| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_099T03_9000002854_19289cztM0_level2.evt | modeM0/AS1T03_099T03_9000002854_19289cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,307,840 | 102,602,880 |
| Size | 425.6 MB | 97.8 MB |
| Events in quadrant A | 2,817,600 | 684,060 |
| Events in quadrant B | 2,949,081 | 693,326 |
| Events in quadrant C | 2,843,966 | 667,192 |
| Events in quadrant D | 4,498,106 | 643,632 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12338 | 1 |
| B | 0 | 12674 | 1 |
| C | 0 | 12429 | 1 |
| D | 0 | 17339 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6001 | 49 | 0.816531% |
| B | 6002 | 102 | 1.699434% |
| C | 6002 | 73 | 1.216261% |
| D | 6002 | 222 | 3.698767% |

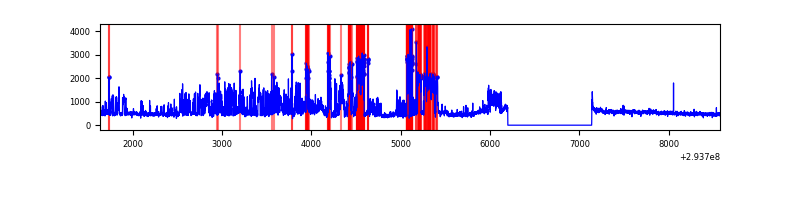

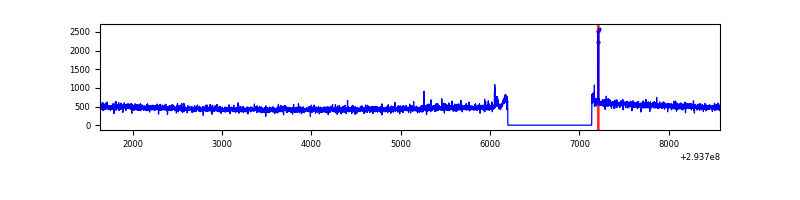

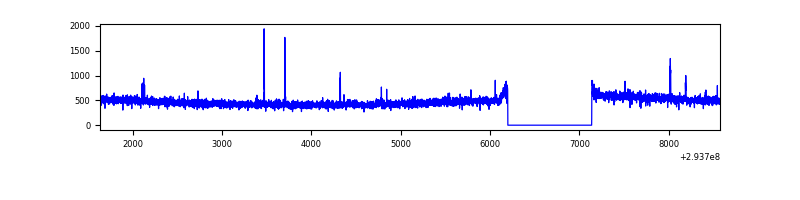

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6941 | 6001 | 3 | 3 | 0.04% | 0.05% |  |
| B | 6942 | 6002 | 40 | 40 | 0.58% | 0.67% |  |
| C | 6942 | 6002 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6942 | 6002 | 205 | 205 | 2.95% | 3.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 26888 | 179.23 | 725 | 710 | 146.1 |
| A | 13 | 254 | 7518 | 46.61 | 725 | 710 | 146.1 |
| A | 0 | 226 | 6251 | 37.94 | 725 | 710 | 146.1 |
| B | 3 | 64 | 130993 | 951.76 | 714 | 697 | 136.9 |
| B | 12 | 111 | 16653 | 116.55 | 714 | 697 | 136.9 |
| B | 11 | 111 | 14746 | 102.62 | 714 | 697 | 136.9 |
| C | 14 | 238 | 108938 | 667.73 | 693 | 697 | 162.1 |
| C | 9 | 54 | 14137 | 82.91 | 693 | 697 | 162.1 |
| C | 9 | 15 | 13272 | 77.57 | 693 | 697 | 162.1 |
| D | 7 | 223 | 931621 | 5483.07 | 700 | 680 | 169.8 |
| D | 10 | 66 | 824046 | 4849.47 | 700 | 680 | 169.8 |
| D | 13 | 138 | 50824 | 295.34 | 700 | 680 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

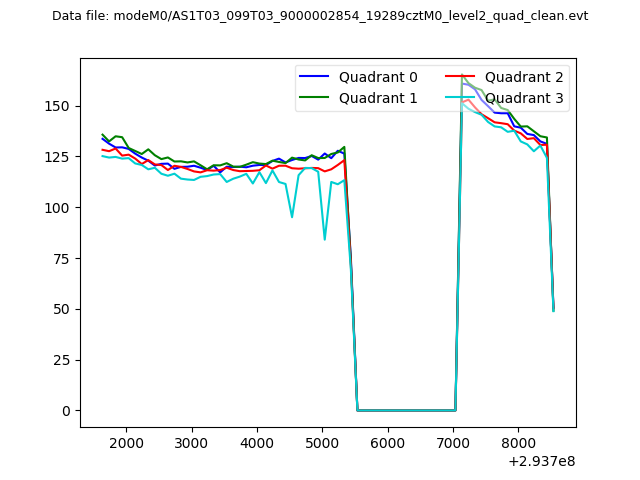

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

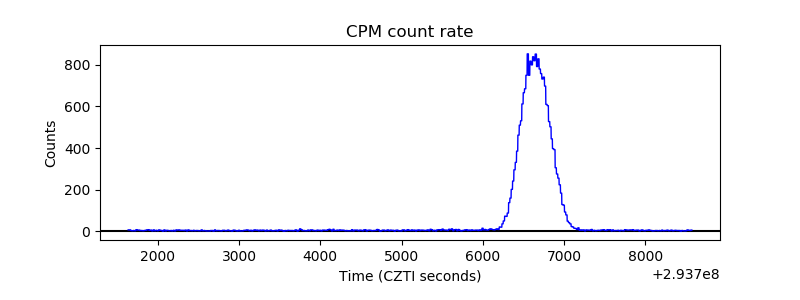

| _CPM_Rate |  |

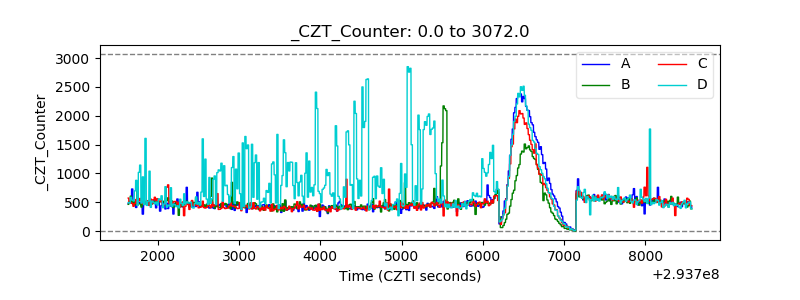

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

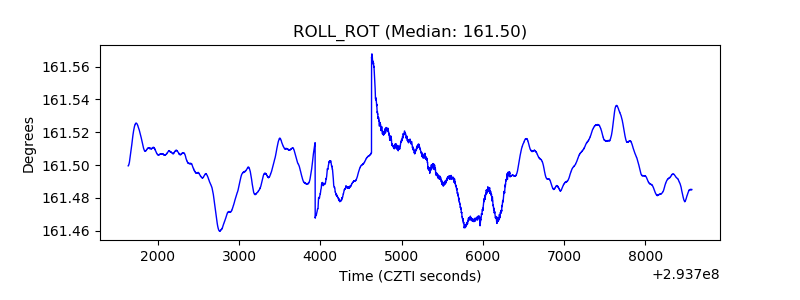

| _ROLL_ROT |  |
| _Roll_DEC |  |

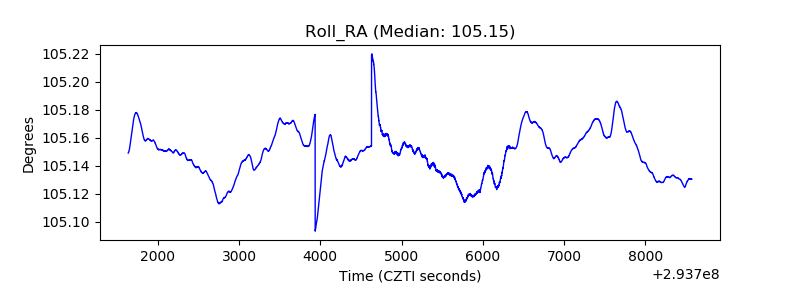

| _Roll_RA |  |
| Veto Counter |  |
