| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_025T17_9000002858_19365cztM0_level2.evt | modeM0/AS1A05_025T17_9000002858_19365cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,214,080 | 130,619,520 |
| Size | 535.2 MB | 124.6 MB |
| Events in quadrant A | 3,098,398 | 914,856 |
| Events in quadrant B | 3,227,614 | 923,876 |
| Events in quadrant C | 3,075,820 | 878,934 |
| Events in quadrant D | 7,186,163 | 816,900 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13060 | 1 |
| B | 0 | 13328 | 1 |
| C | 0 | 12955 | 1 |
| D | 0 | 25564 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6031 | 73 | 1.210413% |
| B | 6032 | 86 | 1.425729% |
| C | 6032 | 96 | 1.591512% |
| D | 6031 | 660 | 10.943459% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

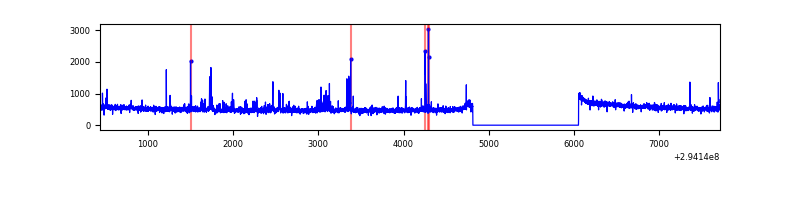

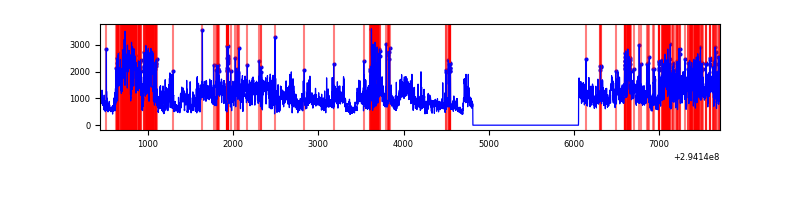

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7271 | 6031 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7272 | 6032 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7272 | 6032 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7271 | 6031 | 506 | 506 | 6.96% | 8.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 18138 | 110.85 | 796 | 783 | 156.6 |
| A | 4 | 2 | 11864 | 70.77 | 796 | 783 | 156.6 |
| A | 13 | 254 | 7579 | 43.41 | 796 | 783 | 156.6 |
| B | 3 | 64 | 32921 | 222.8 | 784 | 768 | 144.3 |
| B | 0 | 197 | 27897 | 187.99 | 784 | 768 | 144.3 |
| B | 4 | 216 | 26373 | 177.43 | 784 | 768 | 144.3 |
| C | 14 | 238 | 121261 | 707.12 | 750 | 756 | 170.4 |
| C | 9 | 54 | 9195 | 49.52 | 750 | 756 | 170.4 |
| C | 8 | 128 | 7367 | 38.79 | 750 | 756 | 170.4 |
| D | 10 | 66 | 2938556 | 16205.19 | 746 | 724 | 181.3 |
| D | 7 | 238 | 711210 | 3919.07 | 746 | 724 | 181.3 |
| D | 1 | 52 | 382440 | 2105.56 | 746 | 724 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

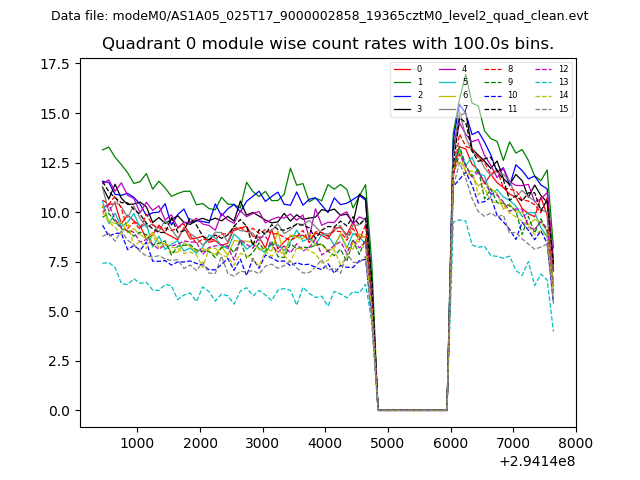

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

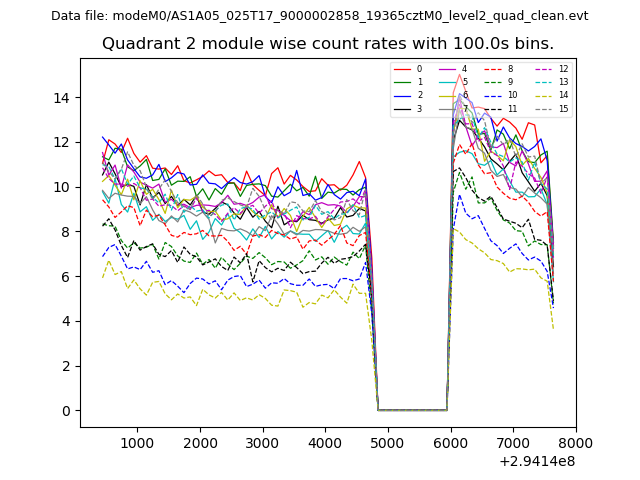

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

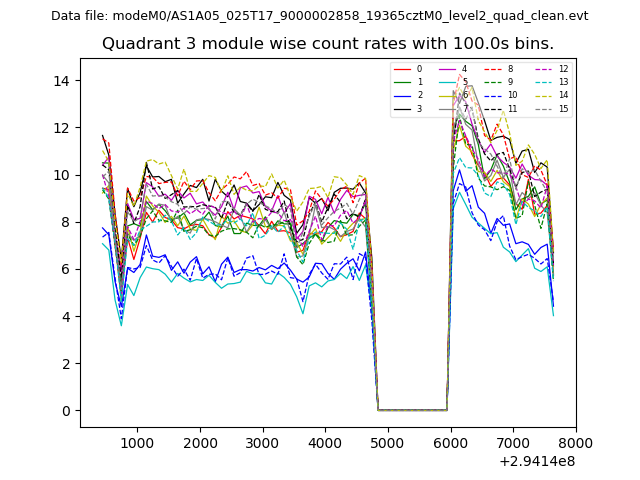

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

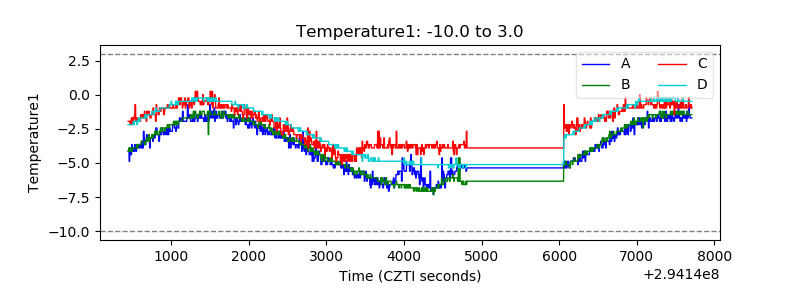

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

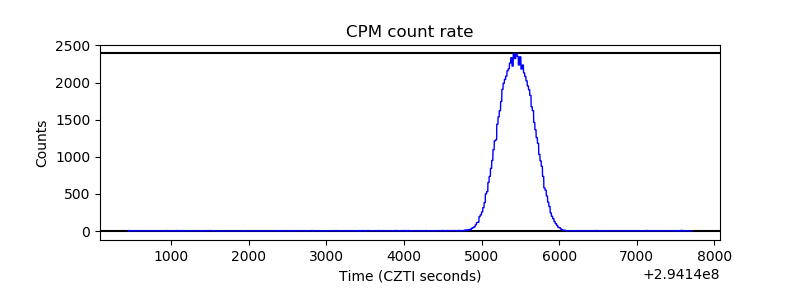

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

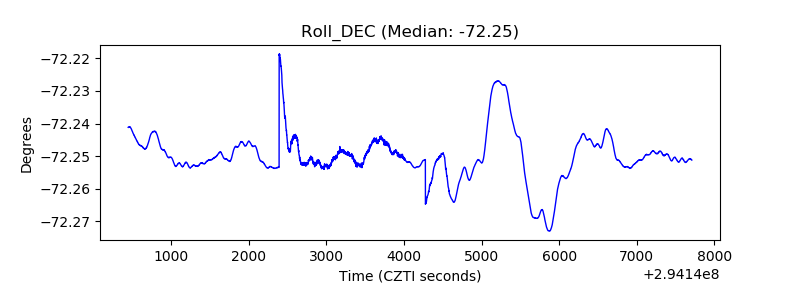

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
