| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T05_9000002860_19367cztM0_level2.evt | modeM0/AS1A05_104T05_9000002860_19367cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,037,440 | 88,352,640 |
| Size | 669.5 MB | 84.3 MB |
| Events in quadrant A | 3,406,655 | 582,446 |
| Events in quadrant B | 3,443,889 | 589,303 |
| Events in quadrant C | 3,461,876 | 569,702 |
| Events in quadrant D | 10,532,913 | 504,357 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14070 | 2 |
| B | 0 | 14124 | 2 |
| C | 0 | 14176 | 2 |
| D | 0 | 35602 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6156 | 78 | 1.267057% |
| B | 6156 | 100 | 1.624431% |
| C | 6156 | 122 | 1.981806% |
| D | 6155 | 2695 | 43.785540% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6156 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7541 | 6156 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7541 | 6156 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7540 | 6155 | 2199 | 2199 | 29.16% | 35.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 7515 | 38.15 | 882 | 868 | 174.2 |
| A | 0 | 226 | 7508 | 38.11 | 882 | 868 | 174.2 |
| A | 3 | 137 | 6575 | 32.76 | 882 | 868 | 174.2 |
| B | 12 | 111 | 19110 | 112.36 | 874 | 854 | 162.5 |
| B | 0 | 230 | 18602 | 109.23 | 874 | 854 | 162.5 |
| B | 11 | 111 | 16778 | 98.0 | 874 | 854 | 162.5 |
| C | 14 | 238 | 135025 | 682.71 | 851 | 858 | 196.5 |
| C | 3 | 233 | 7058 | 31.55 | 851 | 858 | 196.5 |
| C | 13 | 61 | 5933 | 25.82 | 851 | 858 | 196.5 |
| D | 10 | 66 | 7419874 | 42041.33 | 732 | 712 | 176.5 |
| D | 1 | 52 | 198363 | 1120.01 | 732 | 712 | 176.5 |
| D | 7 | 238 | 84015 | 472.04 | 732 | 712 | 176.5 |

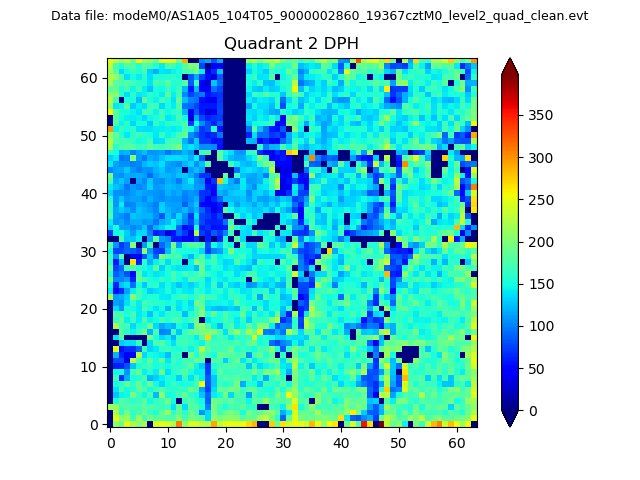

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

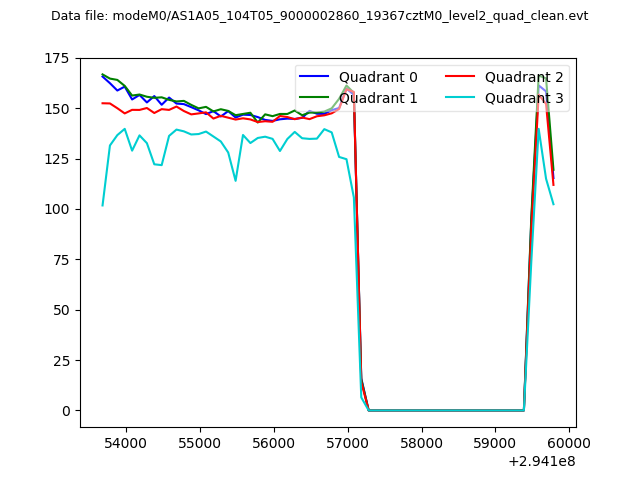

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

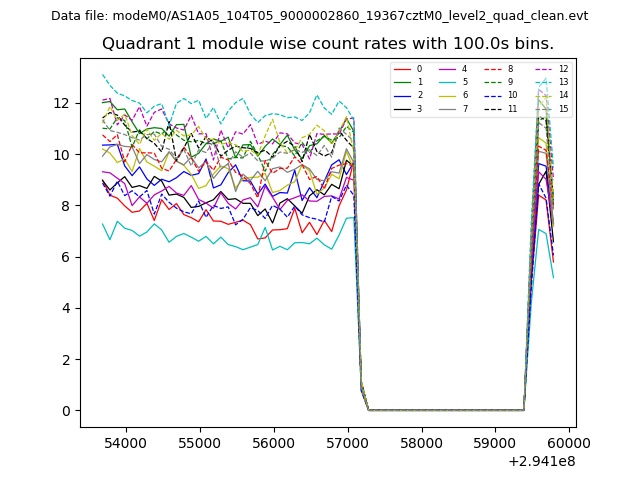

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

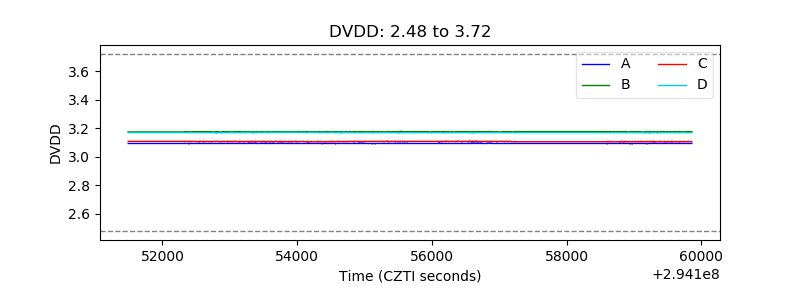

| D_VDD |  |

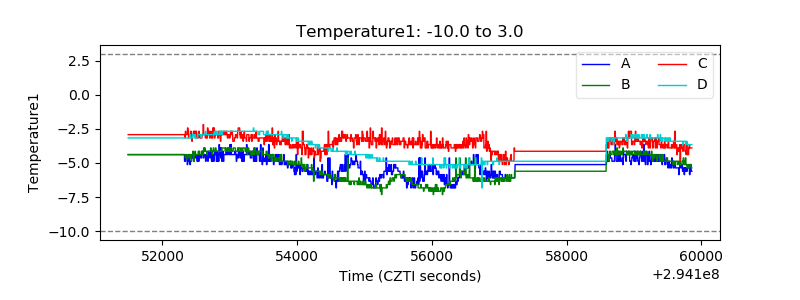

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

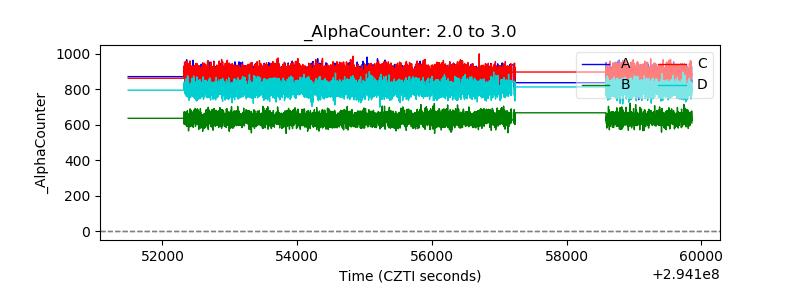

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

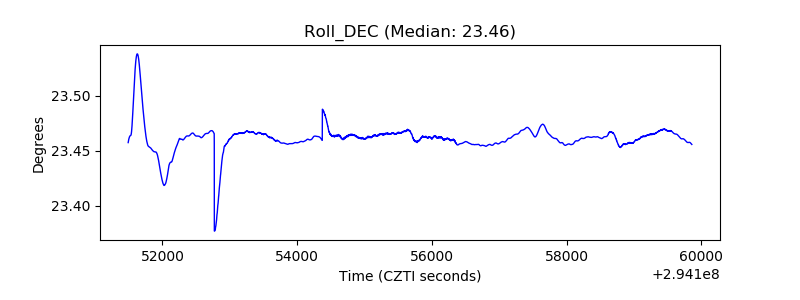

| _Roll_DEC |  |

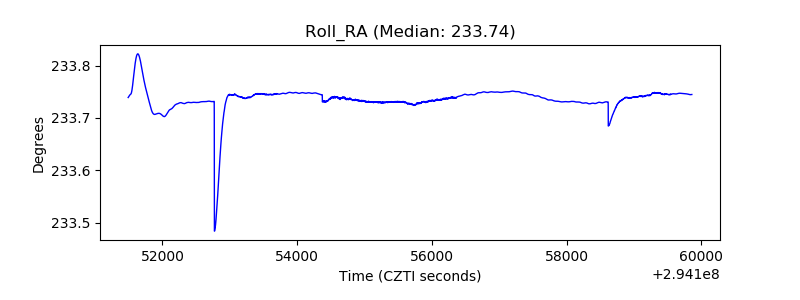

| _Roll_RA |  |
| Veto Counter |  |
