| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_226T06_9000002864_19371cztM0_level2.evt | modeM0/AS1A05_226T06_9000002864_19371cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,989,760 | 102,260,160 |
| Size | 641.8 MB | 97.5 MB |
| Events in quadrant A | 3,451,202 | 681,545 |
| Events in quadrant B | 3,773,725 | 685,051 |
| Events in quadrant C | 3,814,404 | 656,204 |
| Events in quadrant D | 8,842,248 | 559,418 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15236 | 2 |
| B | 0 | 16094 | 2 |
| C | 0 | 16212 | 2 |
| D | 0 | 31421 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7385 | 34 | 0.460393% |
| B | 7385 | 74 | 1.002031% |
| C | 7385 | 109 | 1.475965% |
| D | 7385 | 1476 | 19.986459% |

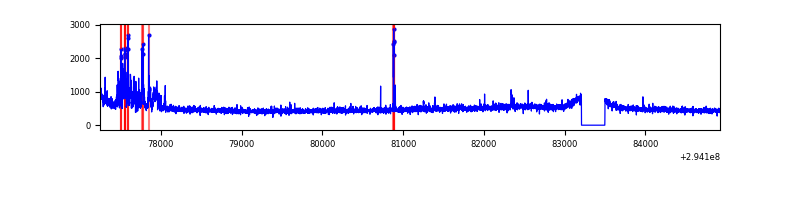

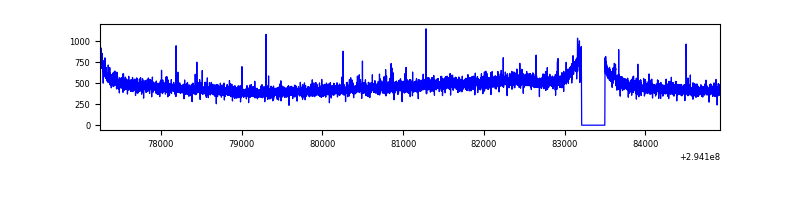

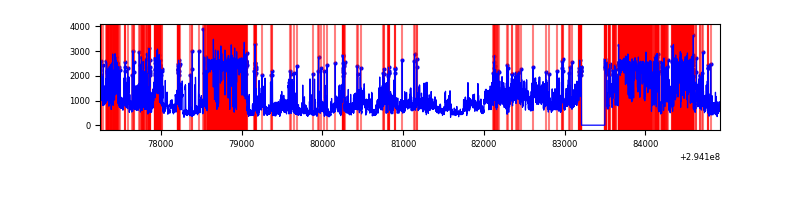

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 7386 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7675 | 7386 | 13 | 13 | 0.17% | 0.18% |  |
| C | 7675 | 7386 | 20 | 20 | 0.26% | 0.27% |  |
| D | 7675 | 7385 | 1230 | 1230 | 16.03% | 16.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7928 | 39.01 | 893 | 873 | 180.8 |
| A | 0 | 226 | 7806 | 38.34 | 893 | 873 | 180.8 |
| A | 3 | 137 | 6955 | 33.63 | 893 | 873 | 180.8 |
| B | 6 | 36 | 118831 | 694.99 | 889 | 866 | 169.7 |
| B | 4 | 216 | 50300 | 291.24 | 889 | 866 | 169.7 |
| B | 3 | 64 | 28121 | 160.57 | 889 | 866 | 169.7 |
| C | 9 | 54 | 264695 | 1307.07 | 861 | 868 | 201.8 |
| C | 14 | 238 | 133398 | 656.59 | 861 | 868 | 201.8 |
| C | 7 | 247 | 18882 | 89.25 | 861 | 868 | 201.8 |
| D | 10 | 66 | 3395395 | 17129.96 | 803 | 778 | 198.2 |
| D | 1 | 52 | 1077643 | 5434.09 | 803 | 778 | 198.2 |
| D | 7 | 238 | 927462 | 4676.24 | 803 | 778 | 198.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

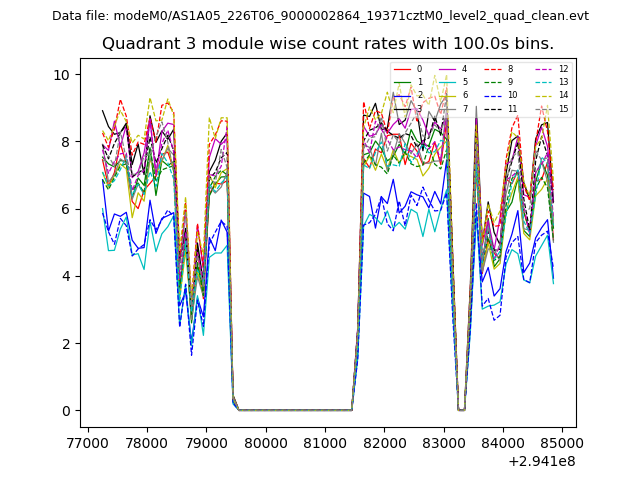

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

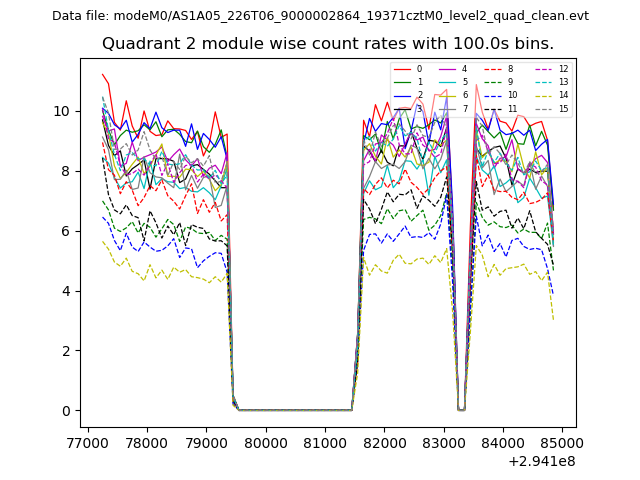

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

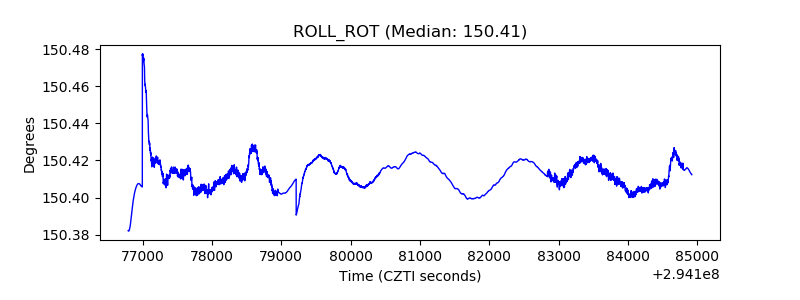

| _ROLL_ROT |  |

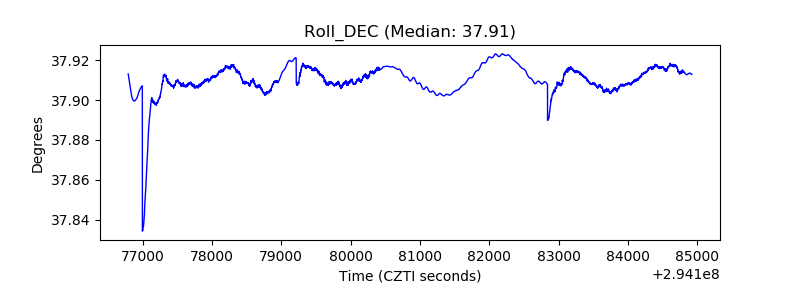

| _Roll_DEC |  |
| _Roll_RA |  |

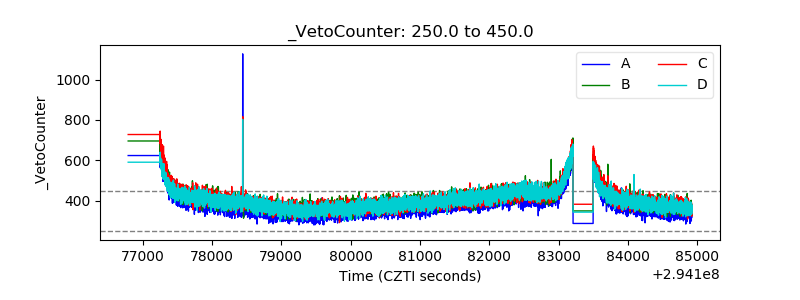

| Veto Counter |  |
