| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_208T03_9000002874_19393cztM0_level2.evt | modeM0/AS1A05_208T03_9000002874_19393cztM0_level2_quad_clean.evt |
| Size (bytes) | 731,770,560 | 64,529,280 |
| Size | 697.9 MB | 61.5 MB |
| Events in quadrant A | 3,296,964 | 402,868 |
| Events in quadrant B | 3,338,117 | 405,702 |
| Events in quadrant C | 3,271,013 | 384,776 |
| Events in quadrant D | 11,817,217 | 307,537 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13829 | 2 |
| B | 0 | 13896 | 2 |
| C | 0 | 13660 | 2 |
| D | 0 | 39622 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6486 | 53 | 0.817145% |
| B | 6486 | 71 | 1.094665% |
| C | 6486 | 69 | 1.063830% |
| D | 6485 | 3216 | 49.591365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6486 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7636 | 6486 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7636 | 6486 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7634 | 6484 | 2807 | 2807 | 36.77% | 43.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 12849 | 70.7 | 851 | 837 | 169.9 |
| A | 13 | 254 | 7560 | 39.57 | 851 | 837 | 169.9 |
| A | 0 | 226 | 7432 | 38.82 | 851 | 837 | 169.9 |
| B | 12 | 111 | 19273 | 116.82 | 842 | 822 | 157.9 |
| B | 3 | 64 | 17581 | 106.11 | 842 | 822 | 157.9 |
| B | 0 | 230 | 17149 | 103.37 | 842 | 822 | 157.9 |
| C | 14 | 238 | 127917 | 683.76 | 799 | 806 | 185.9 |
| C | 3 | 233 | 19422 | 100.14 | 799 | 806 | 185.9 |
| C | 7 | 247 | 7191 | 34.35 | 799 | 806 | 185.9 |
| D | 10 | 66 | 7133493 | 42453.11 | 691 | 672 | 168.0 |
| D | 7 | 238 | 1748884 | 10405.01 | 691 | 672 | 168.0 |
| D | 1 | 52 | 222540 | 1320.51 | 691 | 672 | 168.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

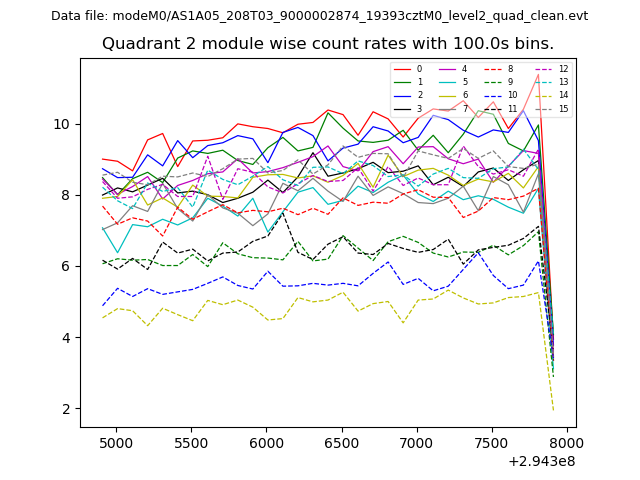

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

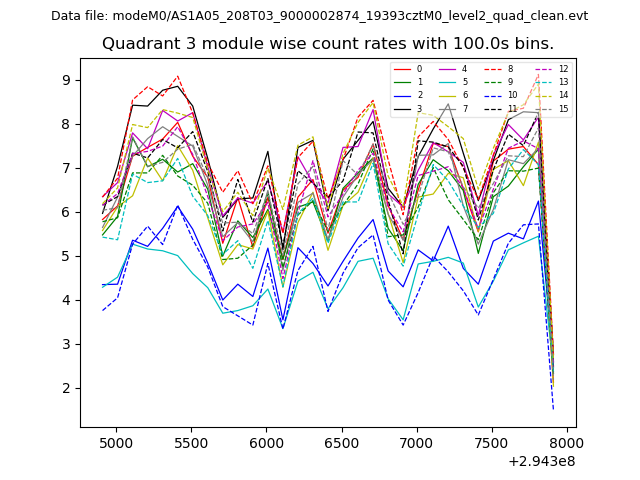

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

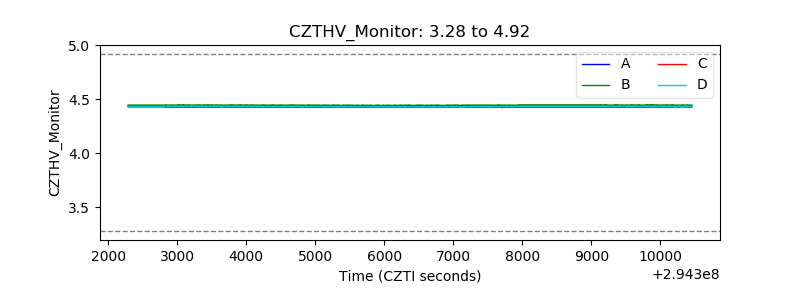

| CZT HV Monitor |  |
| D_VDD |  |

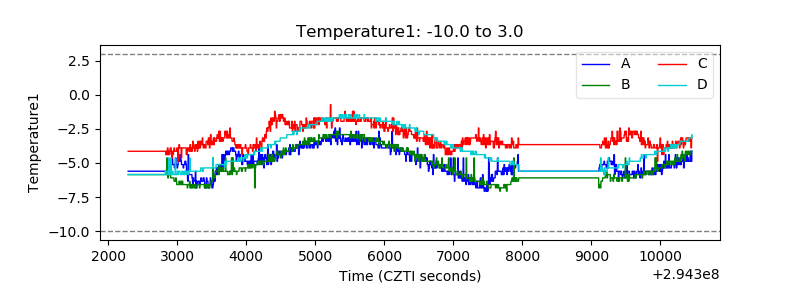

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

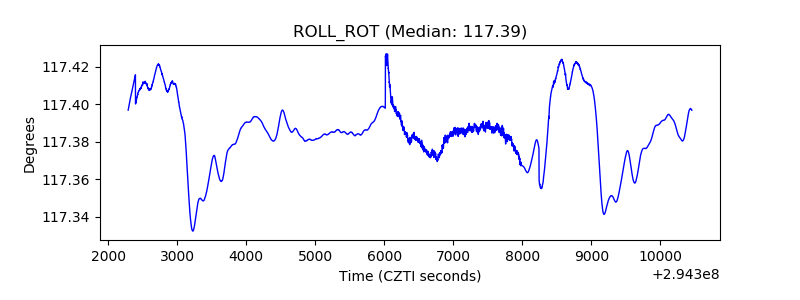

| _ROLL_ROT |  |

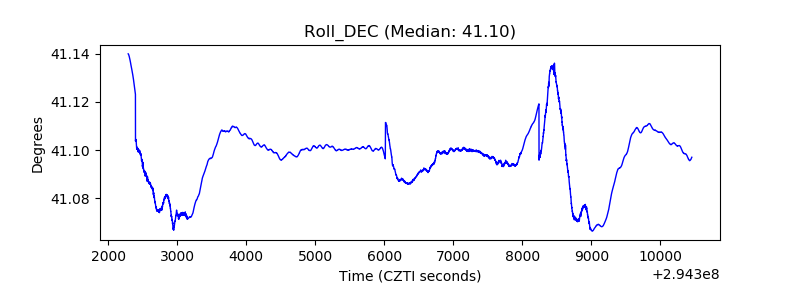

| _Roll_DEC |  |
| _Roll_RA |  |

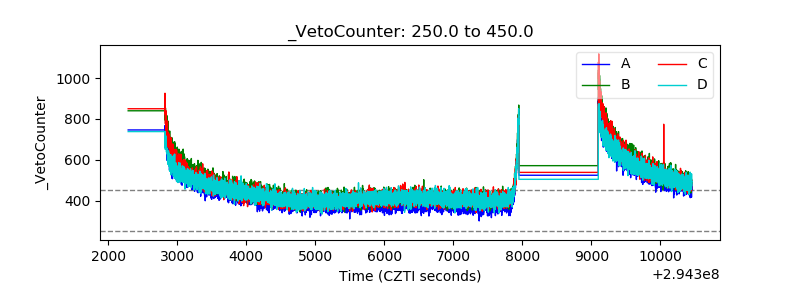

| Veto Counter |  |
