| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_226T09_9000002884_19422cztM0_level2.evt | modeM0/AS1A05_226T09_9000002884_19422cztM0_level2_quad_clean.evt |
| Size (bytes) | 318,093,120 | 45,722,880 |
| Size | 303.4 MB | 43.6 MB |
| Events in quadrant A | 2,265,472 | 276,924 |
| Events in quadrant B | 2,259,406 | 278,354 |
| Events in quadrant C | 2,137,391 | 265,352 |
| Events in quadrant D | 2,676,666 | 259,277 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9374 | 1 |
| B | 0 | 9302 | 1 |
| C | 0 | 8896 | 1 |
| D | 0 | 10718 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4322 | 8 | 0.185099% |
| B | 4322 | 30 | 0.694123% |
| C | 4322 | 24 | 0.555298% |
| D | 4322 | 35 | 0.809810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4322 | 4322 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4322 | 4322 | 14 | 14 | 0.32% | 0.32% |  |
| C | 4322 | 4322 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4322 | 4322 | 30 | 30 | 0.69% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 175798 | 1597.9 | 540 | 530 | 109.7 |
| A | 13 | 254 | 5129 | 41.93 | 540 | 530 | 109.7 |
| A | 0 | 226 | 4671 | 37.75 | 540 | 530 | 109.7 |
| B | 7 | 220 | 119511 | 1160.56 | 537 | 524 | 102.5 |
| B | 0 | 190 | 15217 | 143.31 | 537 | 524 | 102.5 |
| B | 12 | 111 | 12222 | 114.1 | 537 | 524 | 102.5 |
| C | 14 | 238 | 82621 | 683.05 | 513 | 515 | 120.2 |
| C | 3 | 233 | 48452 | 398.79 | 513 | 515 | 120.2 |
| C | 0 | 207 | 3647 | 26.05 | 513 | 515 | 120.2 |
| D | 1 | 52 | 516802 | 4065.94 | 519 | 505 | 127.0 |
| D | 7 | 238 | 189684 | 1489.82 | 519 | 505 | 127.0 |
| D | 2 | 234 | 15738 | 119.96 | 519 | 505 | 127.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

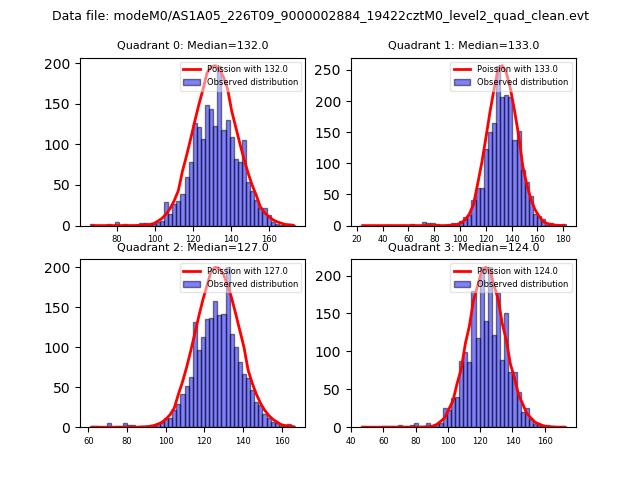

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

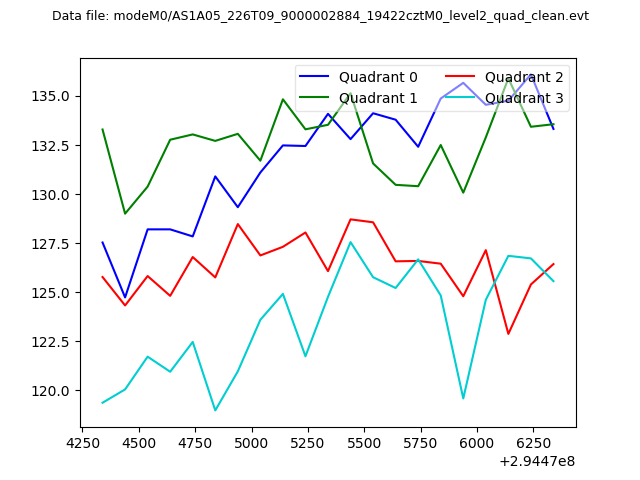

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

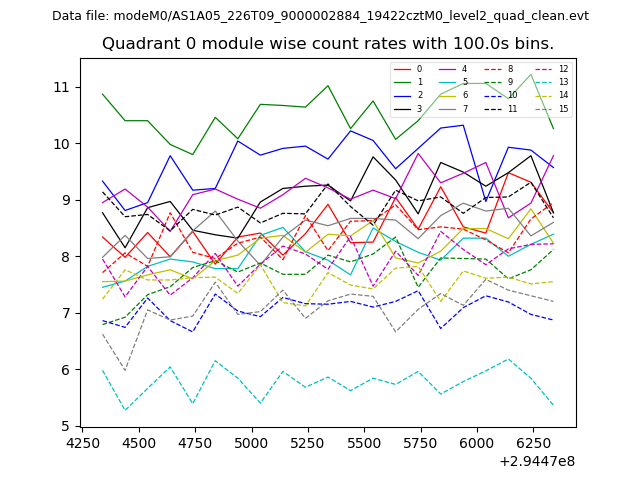

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
