| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_028T01_9000002880_19409cztM0_level2.evt | modeM0/AS1T03_028T01_9000002880_19409cztM0_level2_quad_clean.evt |
| Size (bytes) | 224,723,520 | 23,037,120 |
| Size | 214.3 MB | 22.0 MB |
| Events in quadrant A | 955,819 | 178,993 |
| Events in quadrant B | 947,861 | 182,074 |
| Events in quadrant C | 932,202 | 167,578 |
| Events in quadrant D | 3,859,649 | 50,707 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3908 | 1 |
| B | 0 | 3865 | 1 |
| C | 0 | 3762 | 1 |
| D | 0 | 12541 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1606 | 7 | 0.435866% |
| B | 1606 | 12 | 0.747198% |
| C | 1606 | 15 | 0.933998% |
| D | 1544 | 1525 | 98.769430% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1606 | 1606 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1606 | 1606 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1606 | 1606 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1543 | 1543 | 1507 | 1507 | 97.67% | 97.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 7834 | 151.23 | 245 | 240 | 50.2 |
| A | 13 | 254 | 2171 | 38.46 | 245 | 240 | 50.2 |
| A | 0 | 226 | 2112 | 37.28 | 245 | 240 | 50.2 |
| B | 0 | 198 | 11601 | 250.13 | 237 | 234 | 45.4 |
| B | 0 | 214 | 4998 | 104.83 | 237 | 234 | 45.4 |
| B | 12 | 111 | 4856 | 101.71 | 237 | 234 | 45.4 |
| C | 14 | 238 | 36356 | 676.85 | 226 | 228 | 53.4 |
| C | 3 | 233 | 5848 | 105.29 | 226 | 228 | 53.4 |
| C | 0 | 207 | 5349 | 95.94 | 226 | 228 | 53.4 |
| D | 10 | 66 | 3466502 | 144714.86 | 92 | 89 | 24.0 |
| D | 5 | 222 | 26353 | 1096.46 | 92 | 89 | 24.0 |
| D | 7 | 96 | 5242 | 215.13 | 92 | 89 | 24.0 |

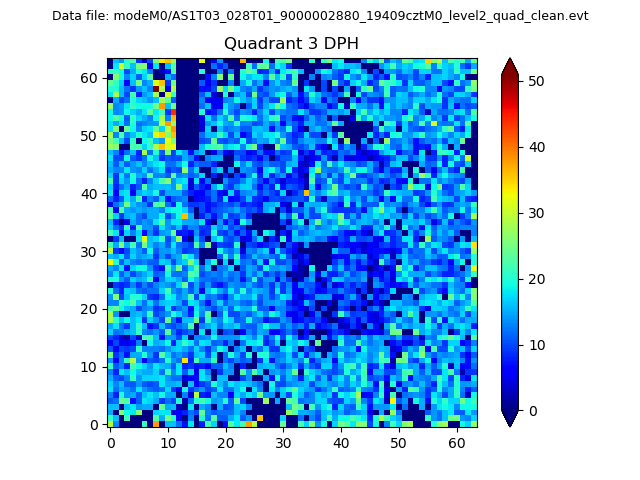

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

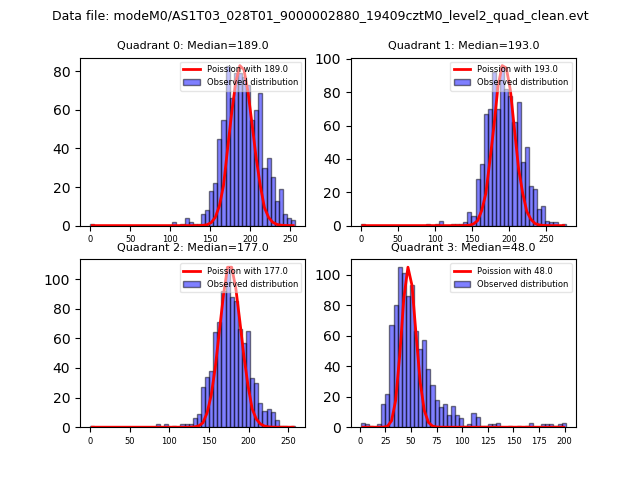

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

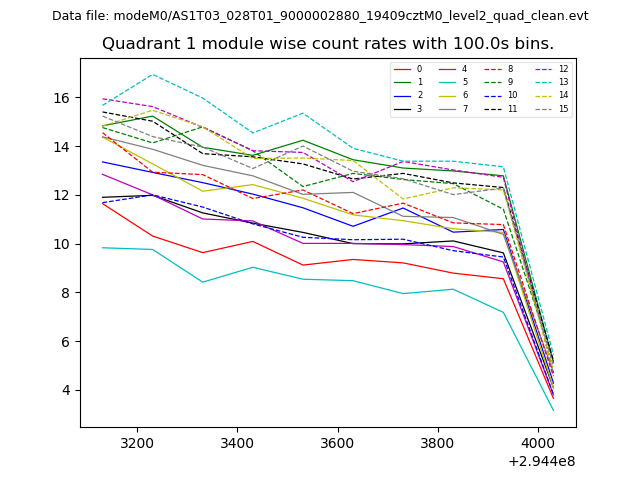

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

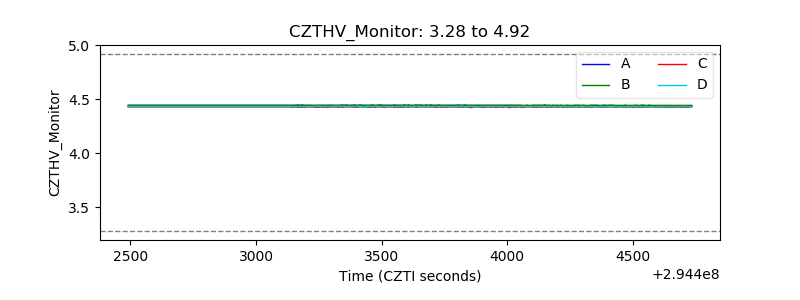

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

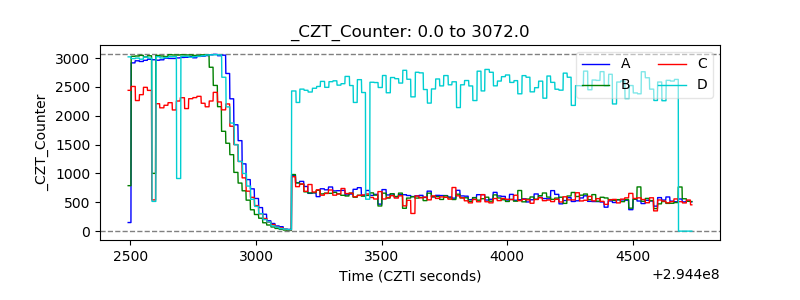

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

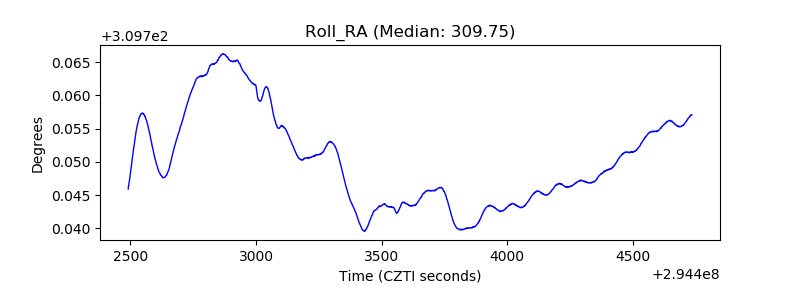

| _Roll_RA |  |

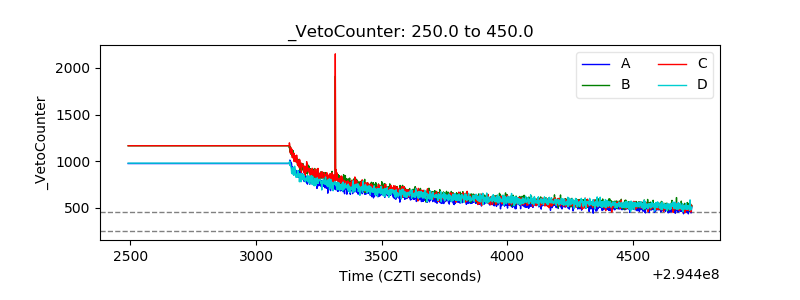

| Veto Counter |  |
