| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_221T01_9000002888_19440cztM0_level2.evt | modeM0/AS1A05_221T01_9000002888_19440cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,518,720 | 66,130,560 |
| Size | 510.7 MB | 63.1 MB |
| Events in quadrant A | 3,526,058 | 396,499 |
| Events in quadrant B | 3,724,525 | 398,378 |
| Events in quadrant C | 3,468,083 | 380,972 |
| Events in quadrant D | 5,061,313 | 375,329 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14332 | 2 |
| B | 0 | 15122 | 2 |
| C | 0 | 14079 | 2 |
| D | 0 | 19332 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6462 | 99 | 1.532033% |
| B | 6463 | 126 | 1.949559% |
| C | 6463 | 113 | 1.748414% |
| D | 6462 | 428 | 6.623336% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 6462 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7768 | 6463 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7768 | 6463 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7767 | 6462 | 285 | 285 | 3.67% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 33215 | 182.1 | 898 | 881 | 177.6 |
| A | 12 | 96 | 11370 | 59.07 | 898 | 881 | 177.6 |
| A | 5 | 16 | 10474 | 54.03 | 898 | 881 | 177.6 |
| B | 7 | 220 | 75130 | 445.33 | 886 | 866 | 166.8 |
| B | 15 | 19 | 54097 | 319.2 | 886 | 866 | 166.8 |
| B | 0 | 190 | 42859 | 251.81 | 886 | 866 | 166.8 |
| C | 14 | 238 | 134213 | 684.49 | 845 | 854 | 194.8 |
| C | 0 | 207 | 27865 | 138.64 | 845 | 854 | 194.8 |
| C | 9 | 221 | 9124 | 42.45 | 845 | 854 | 194.8 |
| D | 7 | 238 | 1596747 | 7769.09 | 853 | 831 | 205.4 |
| D | 12 | 218 | 176121 | 853.33 | 853 | 831 | 205.4 |
| D | 2 | 234 | 31426 | 148.94 | 853 | 831 | 205.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

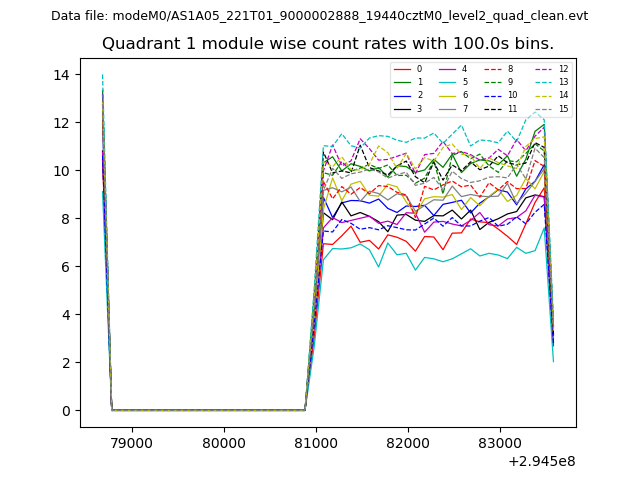

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

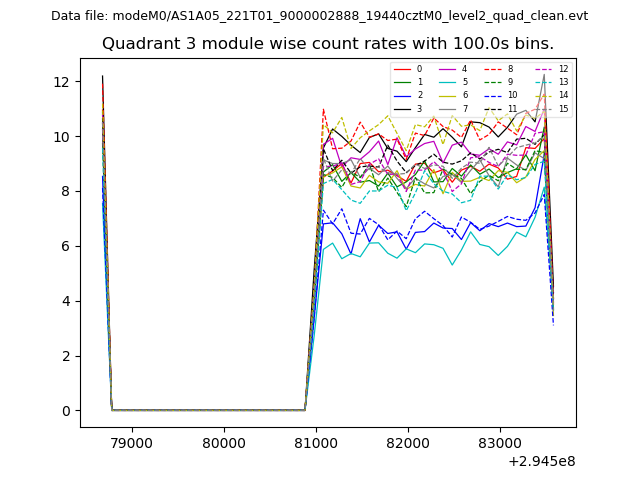

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

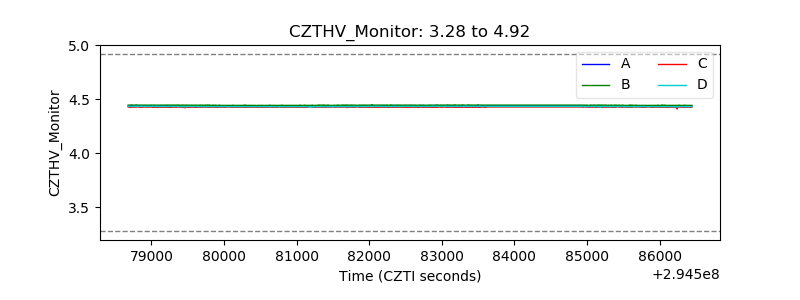

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

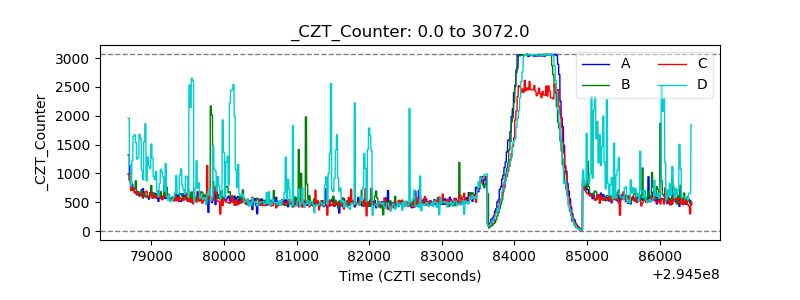

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

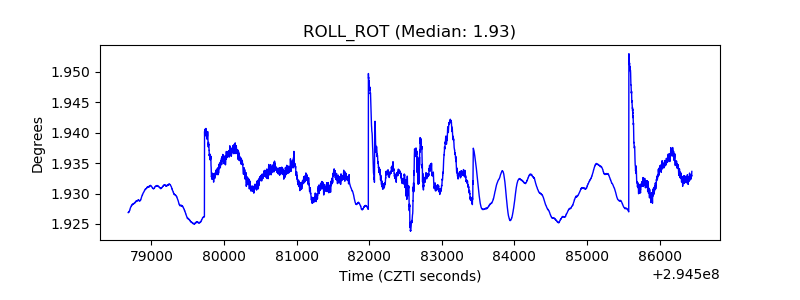

| _ROLL_ROT |  |
| _Roll_DEC |  |

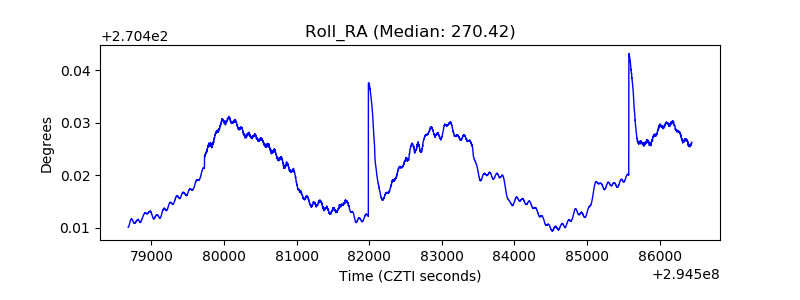

| _Roll_RA |  |
| Veto Counter |  |
