| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_221T01_9000002888_19445cztM0_level2.evt | modeM0/AS1A05_221T01_9000002888_19445cztM0_level2_quad_clean.evt |
| Size (bytes) | 680,909,760 | 98,392,320 |
| Size | 649.4 MB | 93.8 MB |
| Events in quadrant A | 3,472,678 | 634,459 |
| Events in quadrant B | 3,576,197 | 644,116 |
| Events in quadrant C | 3,483,991 | 626,361 |
| Events in quadrant D | 9,590,618 | 562,568 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15130 | 1 |
| B | 0 | 15443 | 1 |
| C | 0 | 15031 | 1 |
| D | 0 | 33578 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7350 | 28 | 0.380952% |
| B | 7351 | 57 | 0.775405% |
| C | 7350 | 65 | 0.884354% |
| D | 7350 | 1888 | 25.687075% |

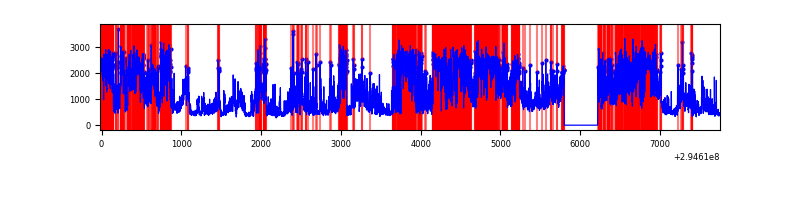

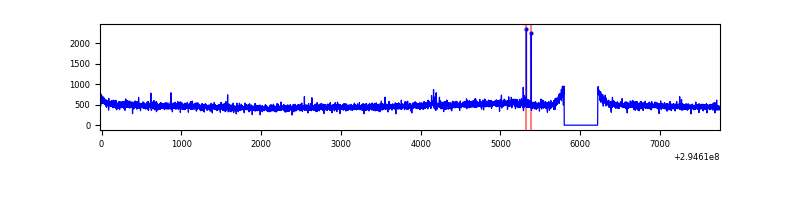

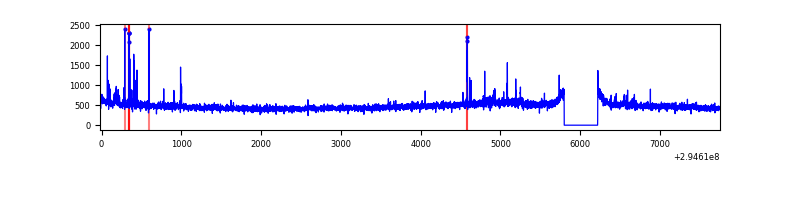

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7770 | 7351 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7771 | 7352 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7770 | 7351 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7770 | 7350 | 1624 | 1624 | 20.90% | 22.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 22143 | 117.78 | 885 | 865 | 180.7 |
| A | 9 | 143 | 21514 | 114.3 | 885 | 865 | 180.7 |
| A | 3 | 1 | 13459 | 69.71 | 885 | 865 | 180.7 |
| B | 7 | 220 | 39252 | 224.85 | 884 | 859 | 170.7 |
| B | 0 | 197 | 25733 | 145.67 | 884 | 859 | 170.7 |
| B | 12 | 111 | 20775 | 116.64 | 884 | 859 | 170.7 |
| C | 14 | 238 | 131921 | 651.14 | 854 | 860 | 201.3 |
| C | 9 | 54 | 9896 | 44.89 | 854 | 860 | 201.3 |
| C | 0 | 207 | 8425 | 37.58 | 854 | 860 | 201.3 |
| D | 7 | 238 | 6369200 | 33442.8 | 773 | 748 | 190.4 |
| D | 1 | 52 | 277491 | 1453.27 | 773 | 748 | 190.4 |
| D | 2 | 234 | 30866 | 158.16 | 773 | 748 | 190.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

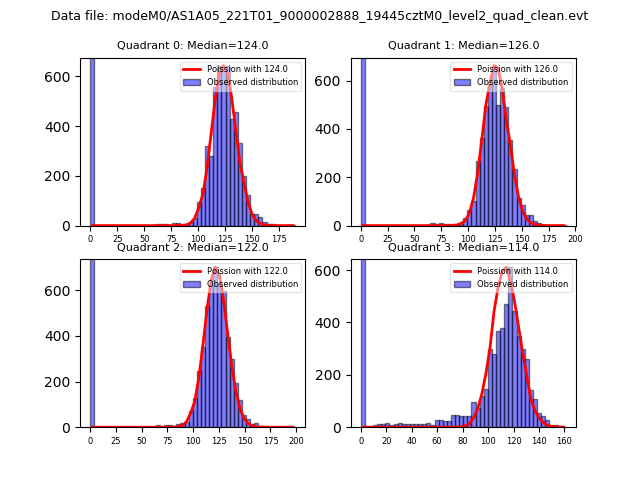

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

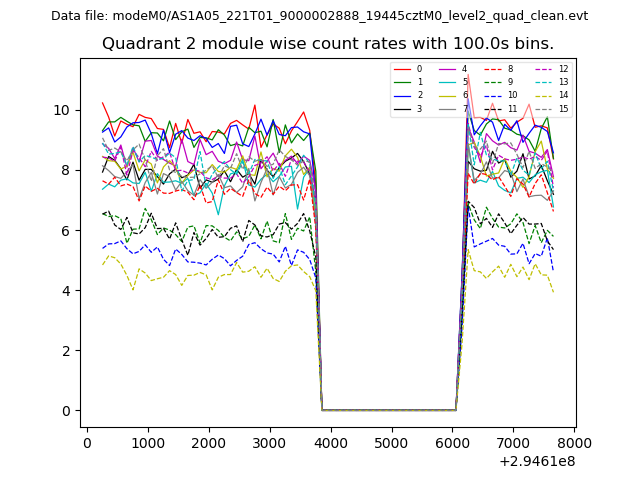

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

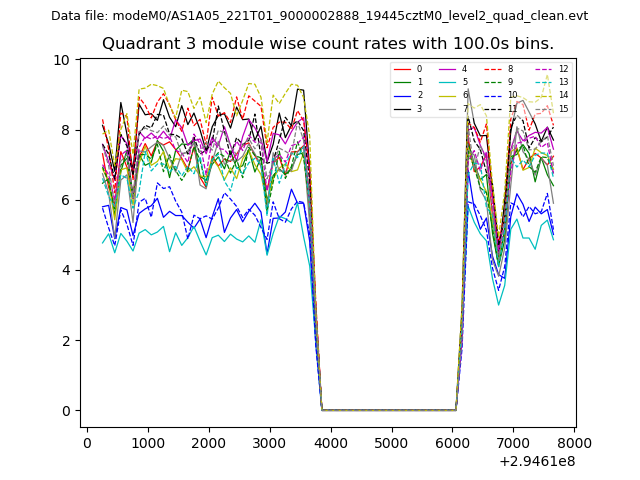

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

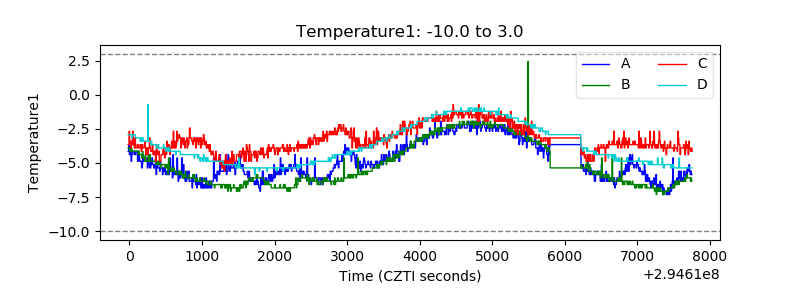

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

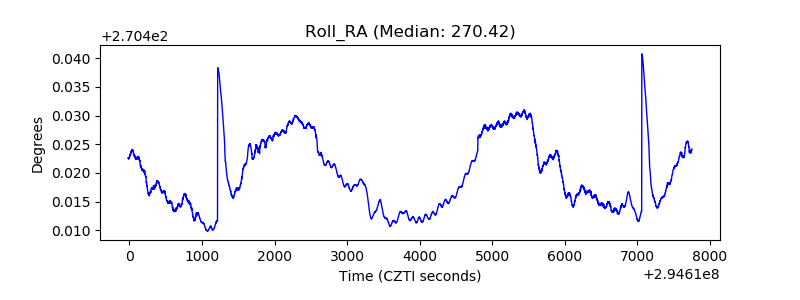

| _Roll_RA |  |
| Veto Counter |  |
