| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_221T01_9000002888_19452cztM0_level2.evt | modeM0/AS1A05_221T01_9000002888_19452cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,956,480 | 82,128,960 |
| Size | 433.9 MB | 78.3 MB |
| Events in quadrant A | 3,294,124 | 524,856 |
| Events in quadrant B | 3,392,287 | 525,858 |
| Events in quadrant C | 3,334,811 | 501,467 |
| Events in quadrant D | 3,331,354 | 497,337 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13403 | 1 |
| B | 0 | 13793 | 1 |
| C | 0 | 13508 | 2 |
| D | 0 | 13731 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6267 | 55 | 0.877613% |
| B | 6268 | 67 | 1.068922% |
| C | 6267 | 77 | 1.228658% |
| D | 6267 | 51 | 0.813787% |

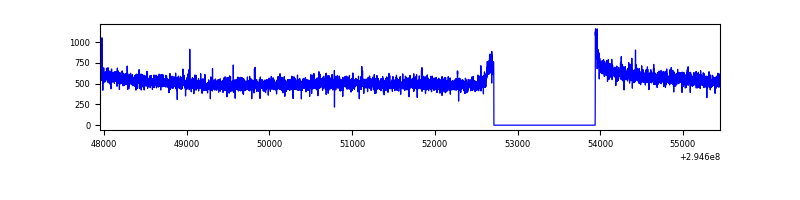

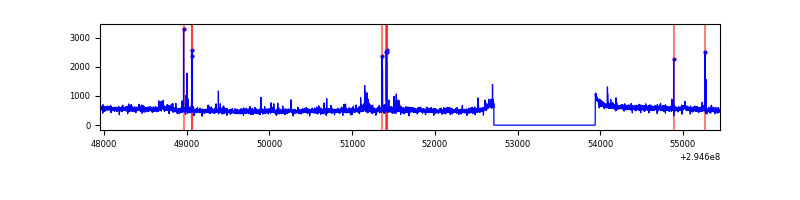

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7492 | 6267 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7493 | 6268 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7492 | 6267 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7492 | 6267 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 27515 | 157.17 | 847 | 830 | 169.8 |
| A | 13 | 254 | 9163 | 49.08 | 847 | 830 | 169.8 |
| A | 0 | 226 | 7430 | 38.87 | 847 | 830 | 169.8 |
| B | 0 | 198 | 50582 | 323.51 | 829 | 811 | 153.8 |
| B | 7 | 220 | 30670 | 194.09 | 829 | 811 | 153.8 |
| B | 12 | 111 | 17698 | 109.77 | 829 | 811 | 153.8 |
| C | 14 | 238 | 127224 | 681.38 | 799 | 805 | 185.5 |
| C | 9 | 221 | 74618 | 397.84 | 799 | 805 | 185.5 |
| C | 0 | 207 | 12930 | 65.35 | 799 | 805 | 185.5 |
| D | 1 | 52 | 130364 | 648.95 | 824 | 803 | 199.6 |
| D | 7 | 238 | 68317 | 338.16 | 824 | 803 | 199.6 |
| D | 2 | 234 | 24469 | 118.54 | 824 | 803 | 199.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

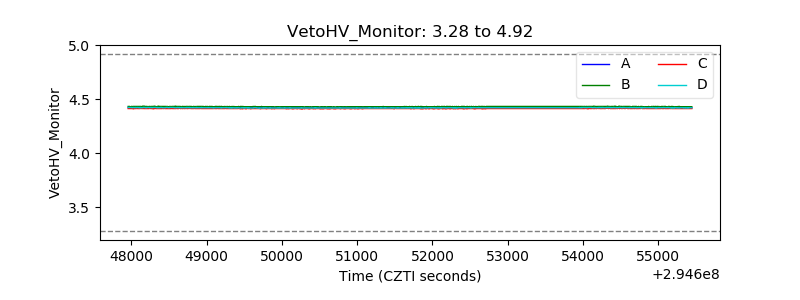

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

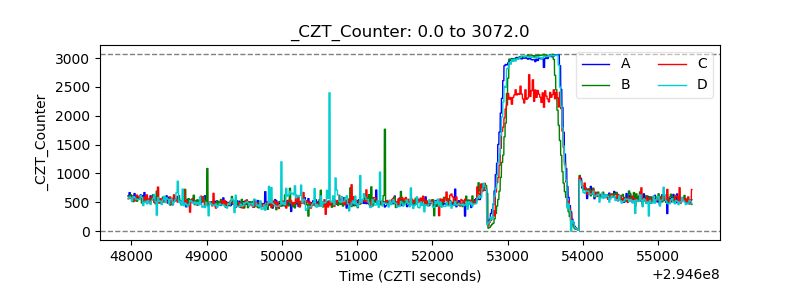

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

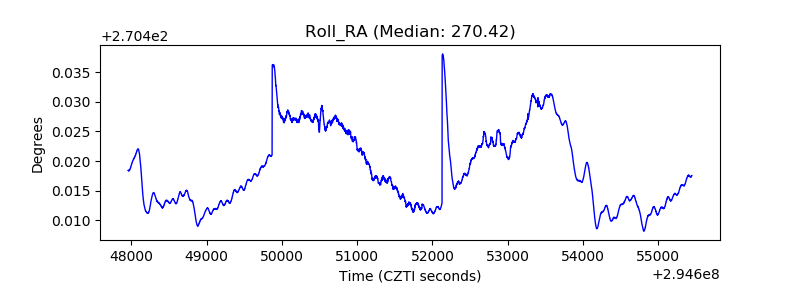

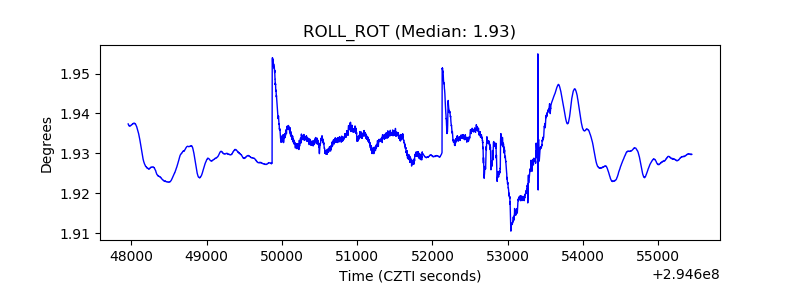

| _ROLL_ROT |  |

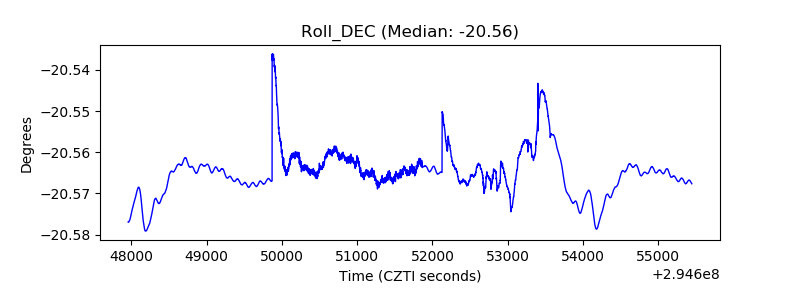

| _Roll_DEC |  |
| _Roll_RA |  |

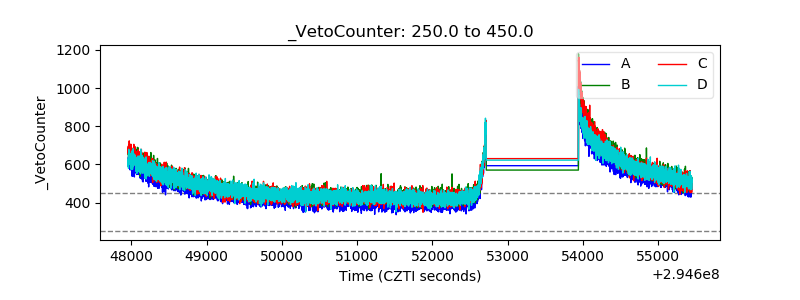

| Veto Counter |  |
