| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000002890_19465cztM0_level2.evt | modeM0/AS1A05_229T02_9000002890_19465cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,259,520 | 88,122,240 |
| Size | 519.0 MB | 84.0 MB |
| Events in quadrant A | 3,307,492 | 558,011 |
| Events in quadrant B | 3,328,763 | 568,236 |
| Events in quadrant C | 3,657,581 | 547,234 |
| Events in quadrant D | 5,728,943 | 522,149 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14314 | 2 |
| B | 0 | 14319 | 2 |
| C | 0 | 15106 | 2 |
| D | 0 | 21557 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6790 | 38 | 0.559647% |
| B | 6791 | 81 | 1.192755% |
| C | 6791 | 101 | 1.487263% |
| D | 6791 | 583 | 8.584892% |

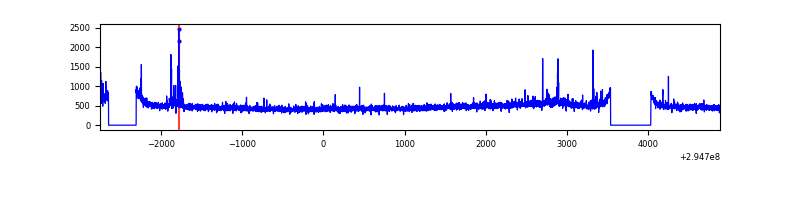

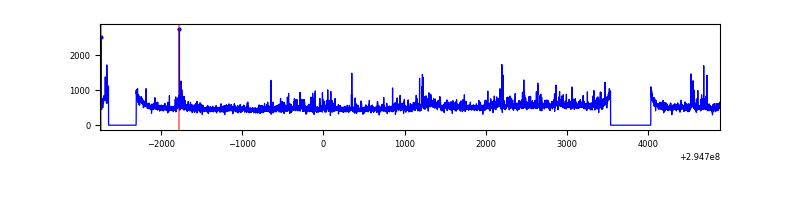

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7625 | 6792 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7626 | 6792 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7626 | 6793 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7626 | 6793 | 434 | 434 | 5.69% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 72635 | 429.92 | 825 | 807 | 167.1 |
| A | 11 | 29 | 30039 | 174.97 | 825 | 807 | 167.1 |
| A | 12 | 96 | 11220 | 62.33 | 825 | 807 | 167.1 |
| B | 0 | 197 | 37730 | 229.53 | 827 | 804 | 160.9 |
| B | 0 | 198 | 24923 | 149.92 | 827 | 804 | 160.9 |
| B | 12 | 111 | 19338 | 115.2 | 827 | 804 | 160.9 |
| C | 9 | 221 | 370925 | 1953.83 | 797 | 804 | 189.4 |
| C | 14 | 238 | 122117 | 640.4 | 797 | 804 | 189.4 |
| C | 3 | 233 | 45471 | 235.79 | 797 | 804 | 189.4 |
| D | 1 | 52 | 2020859 | 10758.45 | 776 | 756 | 187.8 |
| D | 5 | 222 | 695241 | 3698.62 | 776 | 756 | 187.8 |
| D | 2 | 234 | 29369 | 152.38 | 776 | 756 | 187.8 |

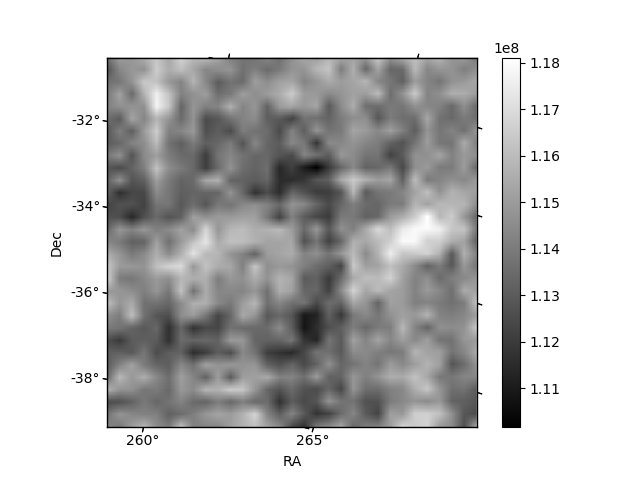

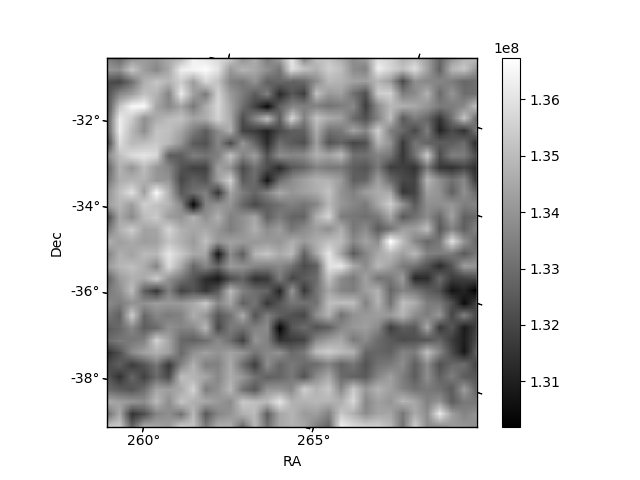

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

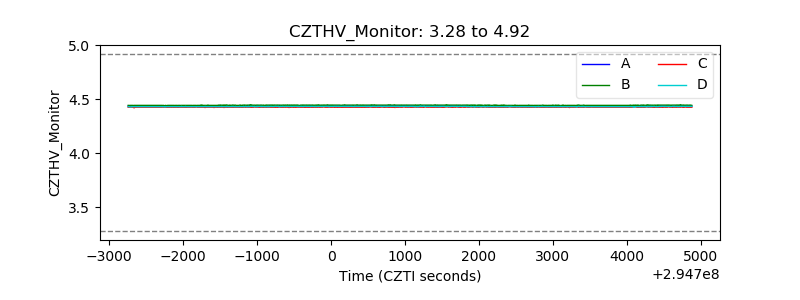

| CZT HV Monitor |  |

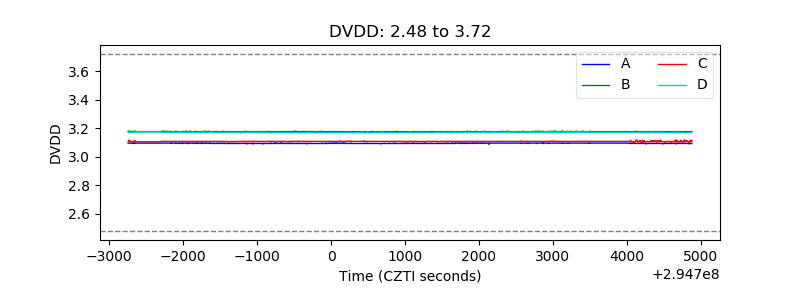

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

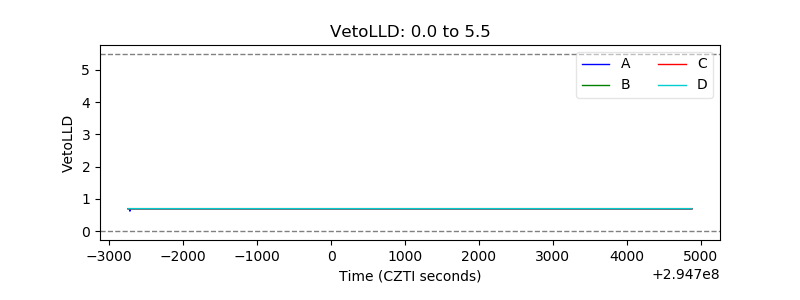

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

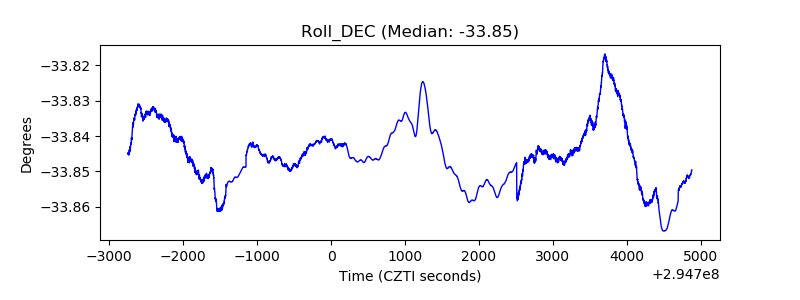

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
