| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000002890_19467cztM0_level2.evt | modeM0/AS1A05_229T02_9000002890_19467cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,099,520 | 76,210,560 |
| Size | 499.8 MB | 72.7 MB |
| Events in quadrant A | 3,394,880 | 495,484 |
| Events in quadrant B | 3,378,233 | 502,092 |
| Events in quadrant C | 3,480,633 | 476,255 |
| Events in quadrant D | 5,195,064 | 397,488 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13807 | 1 |
| B | 0 | 13661 | 1 |
| C | 0 | 14002 | 1 |
| D | 0 | 19432 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6251 | 90 | 1.439770% |
| B | 6251 | 89 | 1.423772% |
| C | 6250 | 104 | 1.664000% |
| D | 6251 | 758 | 12.126060% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7496 | 6251 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7496 | 6251 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7495 | 6250 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7496 | 6251 | 536 | 536 | 7.15% | 8.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 67216 | 387.65 | 860 | 845 | 171.2 |
| A | 11 | 29 | 9819 | 52.41 | 860 | 845 | 171.2 |
| A | 13 | 254 | 8663 | 45.66 | 860 | 845 | 171.2 |
| B | 0 | 198 | 19256 | 116.29 | 842 | 825 | 158.5 |
| B | 6 | 36 | 19059 | 115.05 | 842 | 825 | 158.5 |
| B | 12 | 111 | 17699 | 106.47 | 842 | 825 | 158.5 |
| C | 14 | 238 | 129667 | 691.49 | 812 | 821 | 186.3 |
| C | 3 | 233 | 103470 | 550.9 | 812 | 821 | 186.3 |
| C | 9 | 221 | 52251 | 276.02 | 812 | 821 | 186.3 |
| D | 1 | 52 | 1638327 | 9076.44 | 752 | 733 | 180.4 |
| D | 12 | 225 | 397920 | 2201.43 | 752 | 733 | 180.4 |
| D | 10 | 230 | 142686 | 786.78 | 752 | 733 | 180.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

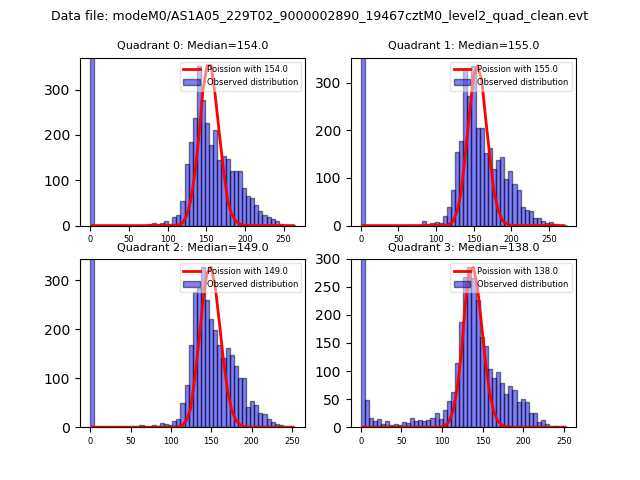

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

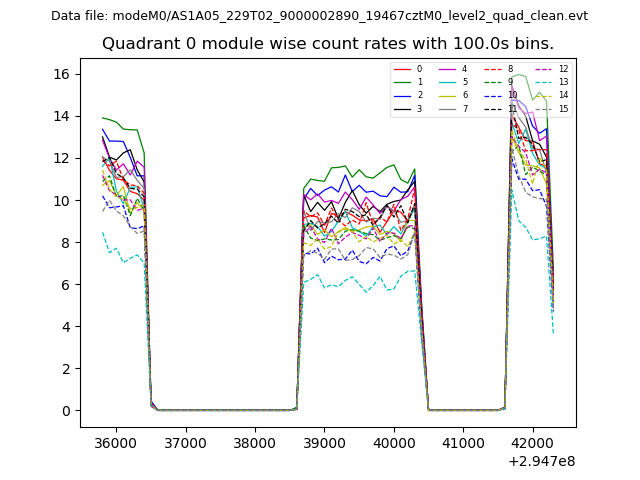

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

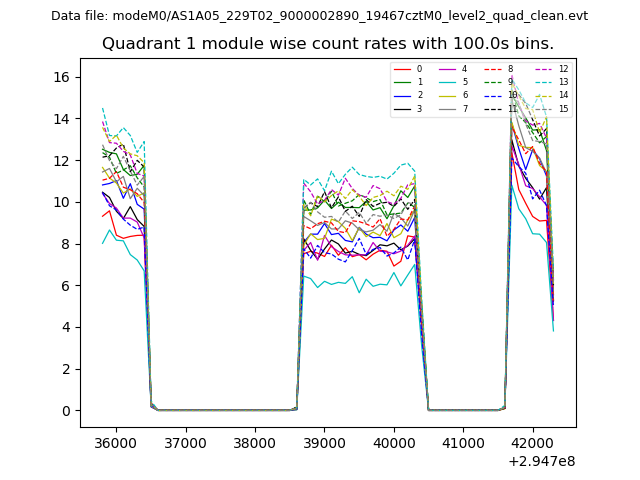

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

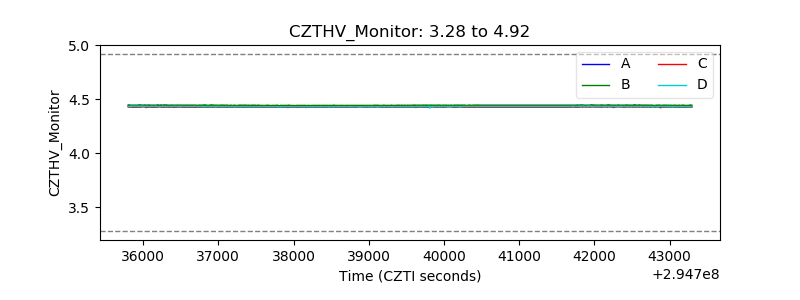

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

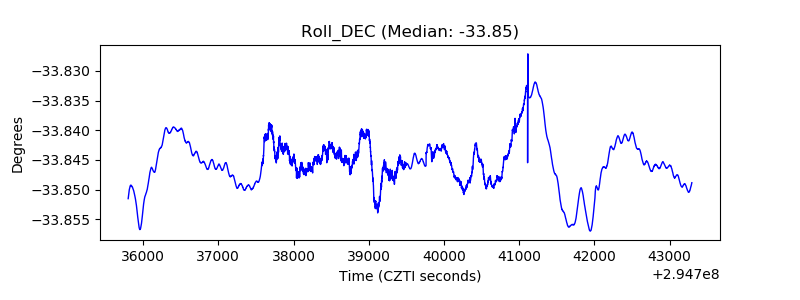

| _Roll_DEC |  |

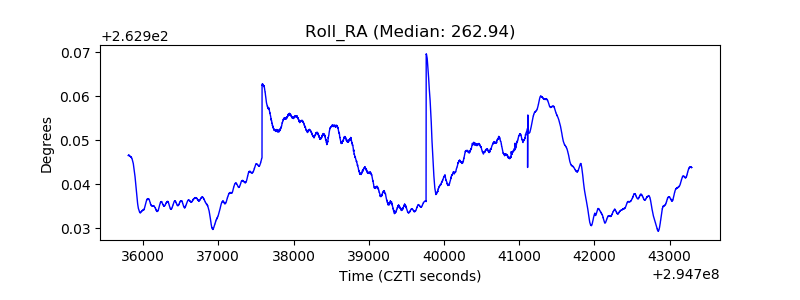

| _Roll_RA |  |

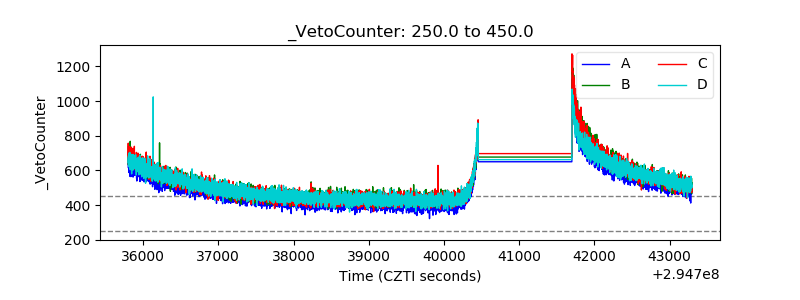

| Veto Counter |  |
