| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_229T02_9000002890_19487cztM0_level2.evt | modeM0/AS1A05_229T02_9000002890_19487cztM0_level2_quad_clean.evt |
| Size (bytes) | 722,736,000 | 90,789,120 |
| Size | 689.3 MB | 86.6 MB |
| Events in quadrant A | 4,011,955 | 566,230 |
| Events in quadrant B | 4,832,286 | 565,628 |
| Events in quadrant C | 4,677,118 | 551,273 |
| Events in quadrant D | 7,821,946 | 505,988 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17083 | 2 |
| B | 0 | 19513 | 2 |
| C | 0 | 19133 | 2 |
| D | 0 | 28699 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8050 | 150 | 1.863354% |
| B | 8051 | 410 | 5.092535% |
| C | 8051 | 229 | 2.844367% |
| D | 8051 | 993 | 12.333872% |

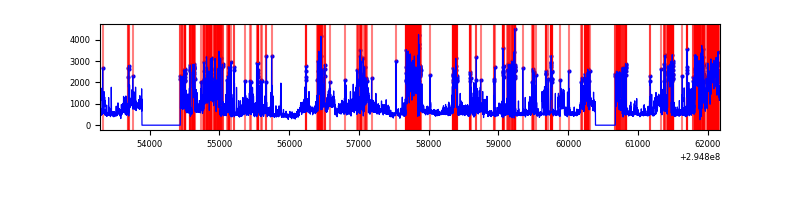

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8885 | 8051 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8886 | 8052 | 145 | 145 | 1.63% | 1.80% |  |
| C | 8886 | 8051 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8886 | 8053 | 801 | 801 | 9.01% | 9.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 60359 | 290.45 | 1010 | 989 | 204.4 |
| A | 11 | 47 | 30451 | 144.13 | 1010 | 989 | 204.4 |
| A | 11 | 29 | 16303 | 74.92 | 1010 | 989 | 204.4 |
| B | 3 | 112 | 589943 | 3050.52 | 995 | 972 | 193.1 |
| B | 3 | 64 | 152594 | 785.31 | 995 | 972 | 193.1 |
| B | 0 | 197 | 71921 | 367.47 | 995 | 972 | 193.1 |
| C | 9 | 221 | 609403 | 2699.13 | 961 | 965 | 225.4 |
| C | 3 | 233 | 160319 | 706.92 | 961 | 965 | 225.4 |
| C | 14 | 238 | 149816 | 660.32 | 961 | 965 | 225.4 |
| D | 7 | 238 | 1906041 | 8308.86 | 938 | 912 | 229.3 |
| D | 5 | 222 | 734358 | 3198.79 | 938 | 912 | 229.3 |
| D | 1 | 52 | 684931 | 2983.22 | 938 | 912 | 229.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

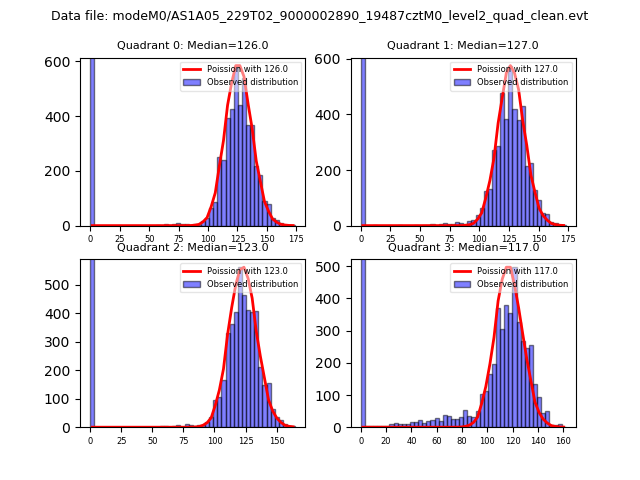

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

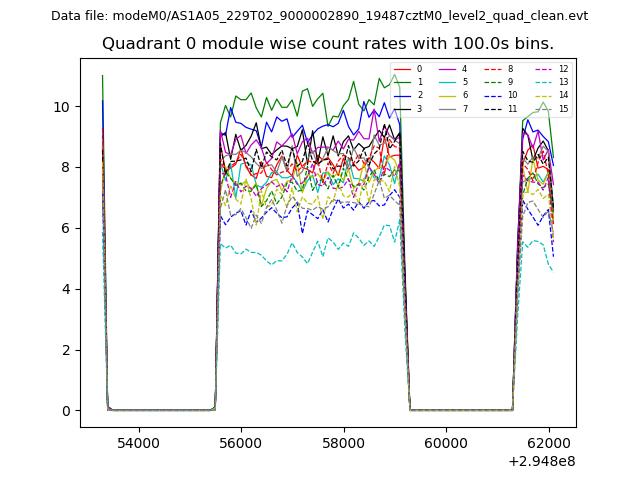

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

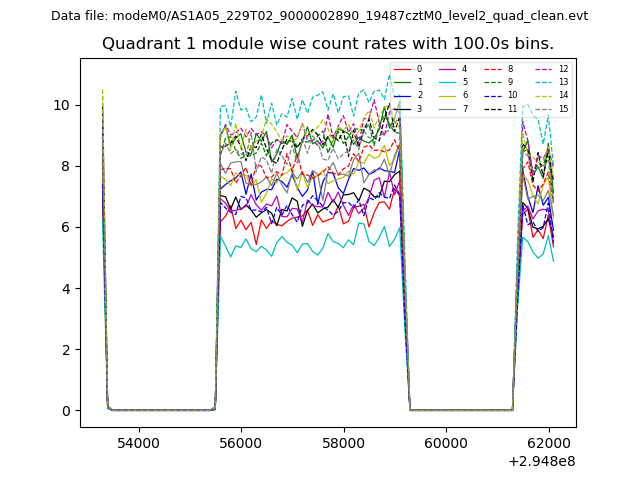

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

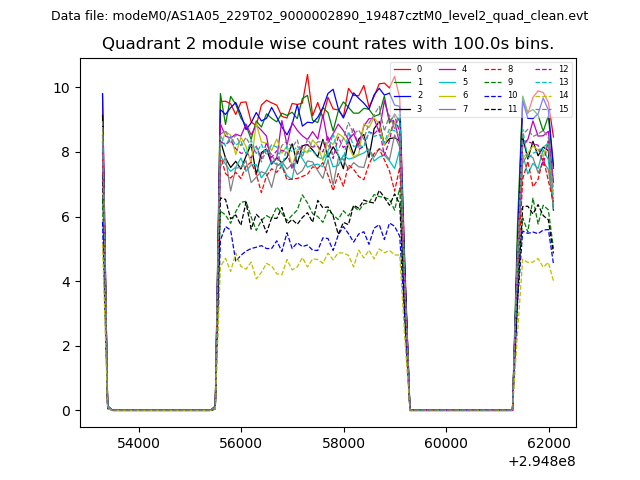

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

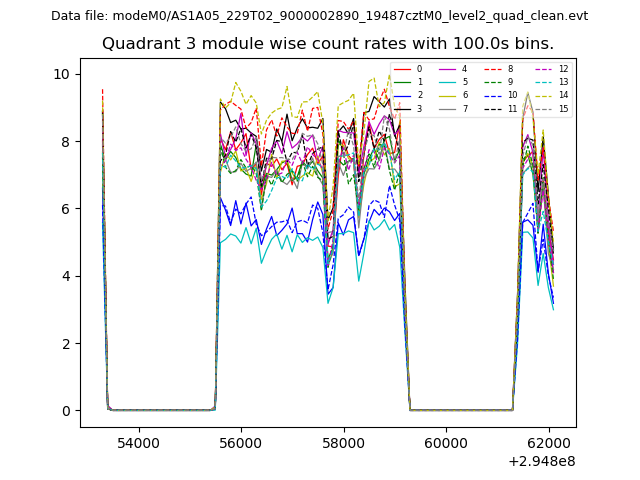

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

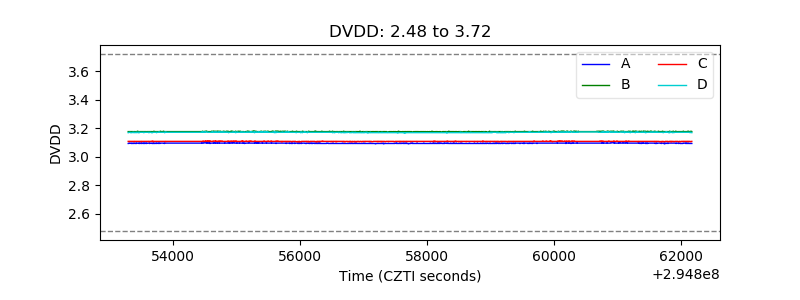

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

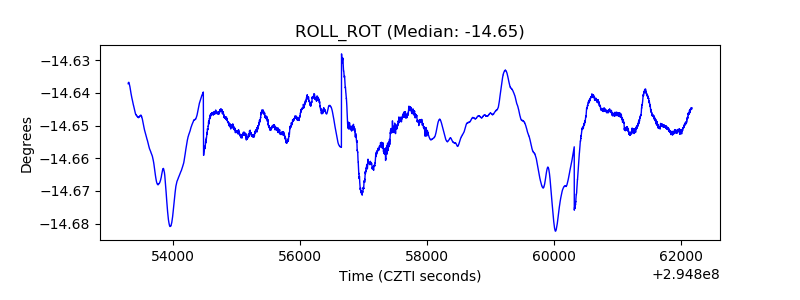

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
