| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_062T01_9000002892_19497cztM0_level2.evt | modeM0/AS1A05_062T01_9000002892_19497cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,837,760 | 79,600,320 |
| Size | 477.6 MB | 75.9 MB |
| Events in quadrant A | 3,464,218 | 503,664 |
| Events in quadrant B | 3,527,587 | 518,547 |
| Events in quadrant C | 3,689,834 | 487,601 |
| Events in quadrant D | 4,075,074 | 477,152 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13907 | 1 |
| B | 0 | 14226 | 1 |
| C | 0 | 14869 | 1 |
| D | 0 | 16125 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6058 | 185 | 3.053813% |
| B | 6059 | 111 | 1.831985% |
| C | 6058 | 136 | 2.244965% |
| D | 6058 | 235 | 3.879168% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

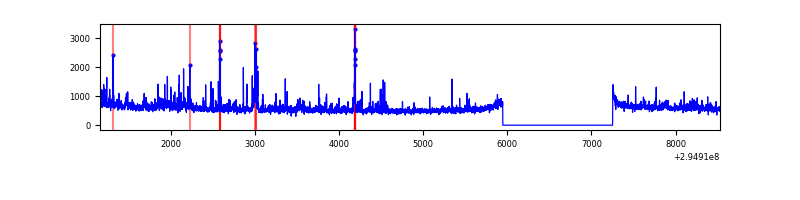

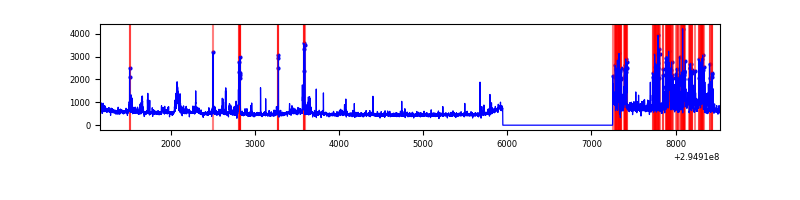

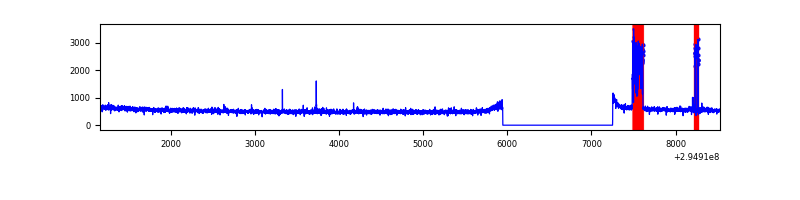

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7363 | 6058 | 105 | 105 | 1.43% | 1.73% |  |
| B | 7364 | 6059 | 26 | 26 | 0.35% | 0.43% |  |
| C | 7363 | 6059 | 15 | 15 | 0.20% | 0.25% |  |
| D | 7363 | 6059 | 144 | 144 | 1.96% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 279939 | 1705.16 | 825 | 813 | 163.7 |
| A | 13 | 254 | 8471 | 46.78 | 825 | 813 | 163.7 |
| A | 0 | 226 | 7221 | 39.15 | 825 | 813 | 163.7 |
| B | 4 | 171 | 120824 | 797.29 | 815 | 797 | 150.5 |
| B | 0 | 189 | 79873 | 525.27 | 815 | 797 | 150.5 |
| B | 7 | 220 | 49944 | 326.46 | 815 | 797 | 150.5 |
| C | 5 | 112 | 195312 | 1083.9 | 788 | 798 | 179.5 |
| C | 9 | 221 | 193150 | 1071.85 | 788 | 798 | 179.5 |
| C | 14 | 238 | 126343 | 699.58 | 788 | 798 | 179.5 |
| D | 12 | 218 | 500997 | 2604.4 | 800 | 778 | 192.1 |
| D | 7 | 238 | 297429 | 1544.52 | 800 | 778 | 192.1 |
| D | 1 | 52 | 94567 | 488.31 | 800 | 778 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

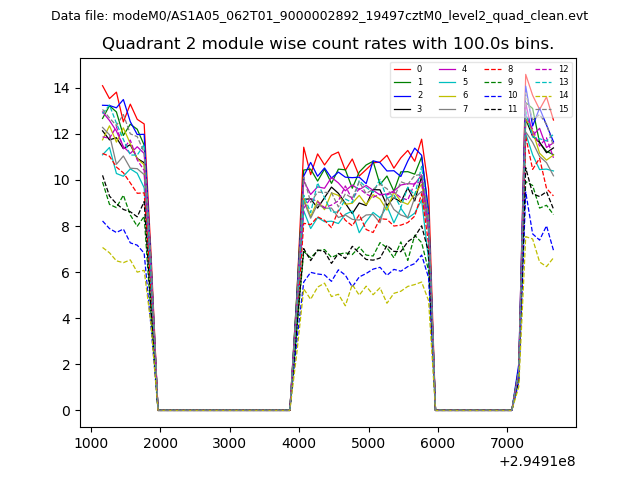

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

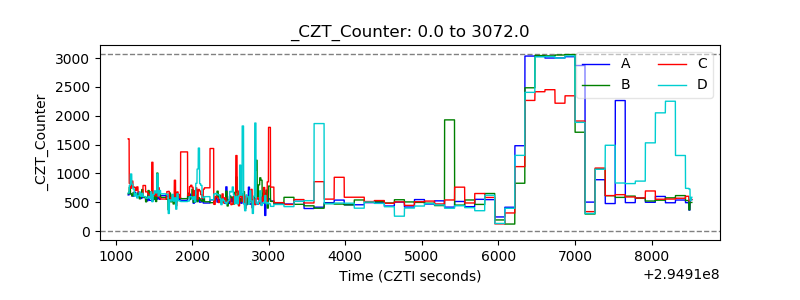

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

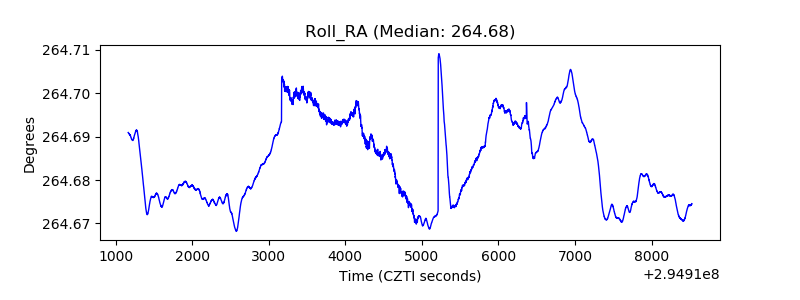

| _ROLL_ROT |  |

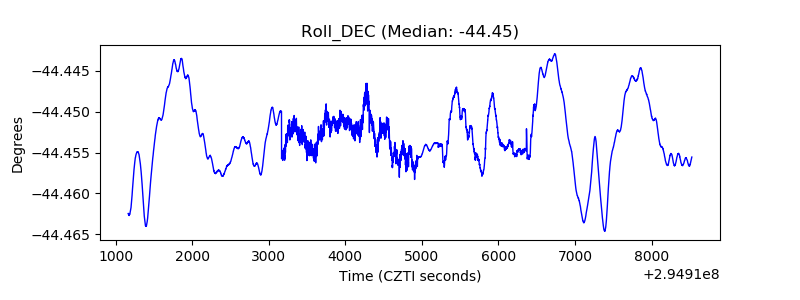

| _Roll_DEC |  |
| _Roll_RA |  |

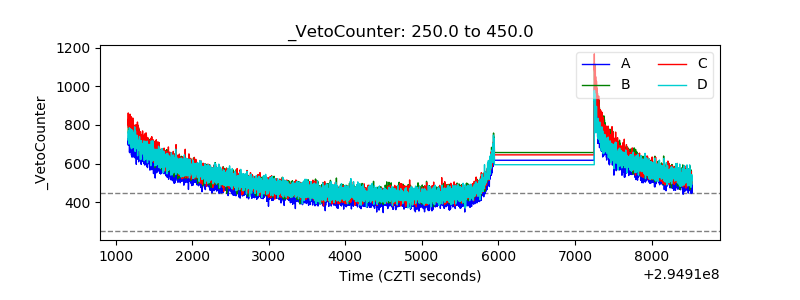

| Veto Counter |  |
