| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_112T01_9000002896_19521cztM0_level2.evt | modeM0/AS1T03_112T01_9000002896_19521cztM0_level2_quad_clean.evt |
| Size (bytes) | 726,330,240 | 103,423,680 |
| Size | 692.7 MB | 98.6 MB |
| Events in quadrant A | 3,240,975 | 735,301 |
| Events in quadrant B | 3,374,408 | 747,623 |
| Events in quadrant C | 3,470,754 | 706,103 |
| Events in quadrant D | 11,436,385 | 454,299 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14197 | 2 |
| B | 0 | 14451 | 2 |
| C | 0 | 14539 | 2 |
| D | 0 | 38639 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7010 | 9 | 0.128388% |
| B | 7011 | 21 | 0.299529% |
| C | 7011 | 50 | 0.713165% |
| D | 7010 | 3372 | 48.102710% |

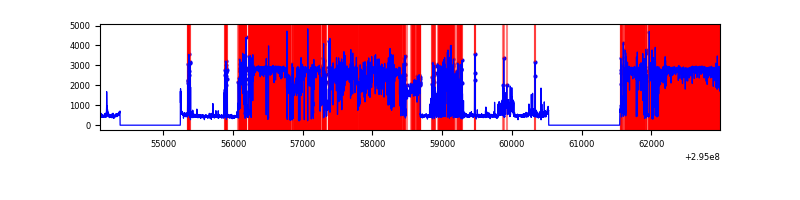

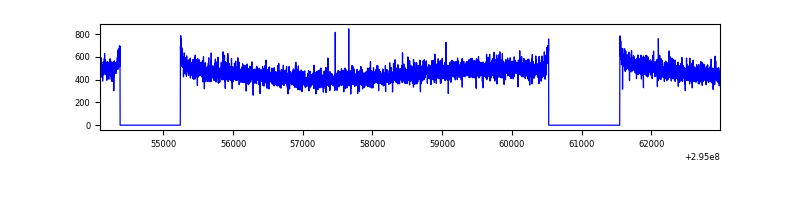

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8895 | 7012 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8896 | 7013 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8896 | 7013 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8895 | 7012 | 3232 | 3232 | 36.34% | 46.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9133 | 48.92 | 841 | 826 | 169.8 |
| A | 0 | 226 | 7303 | 38.14 | 841 | 826 | 169.8 |
| A | 3 | 137 | 6623 | 34.14 | 841 | 826 | 169.8 |
| B | 3 | 64 | 25988 | 156.25 | 844 | 822 | 161.1 |
| B | 12 | 111 | 19298 | 114.71 | 844 | 822 | 161.1 |
| B | 0 | 198 | 18351 | 108.83 | 844 | 822 | 161.1 |
| C | 14 | 238 | 128375 | 680.21 | 810 | 815 | 187.5 |
| C | 3 | 233 | 117293 | 621.12 | 810 | 815 | 187.5 |
| C | 9 | 221 | 60797 | 319.85 | 810 | 815 | 187.5 |
| D | 7 | 238 | 8796023 | 61423.53 | 586 | 569 | 143.2 |
| D | 1 | 52 | 385301 | 2686.8 | 586 | 569 | 143.2 |
| D | 12 | 218 | 21569 | 146.65 | 586 | 569 | 143.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

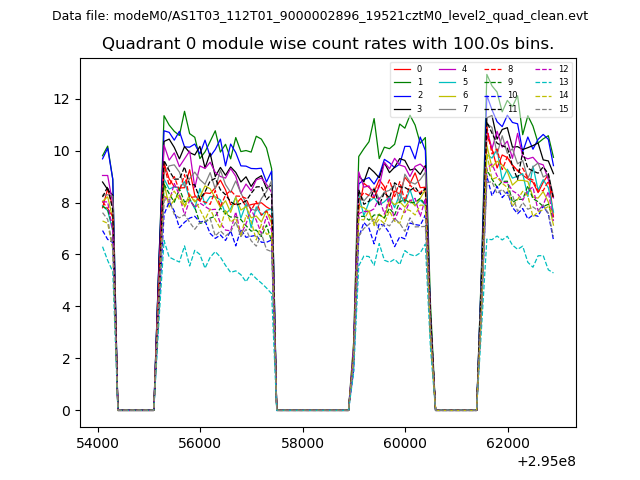

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

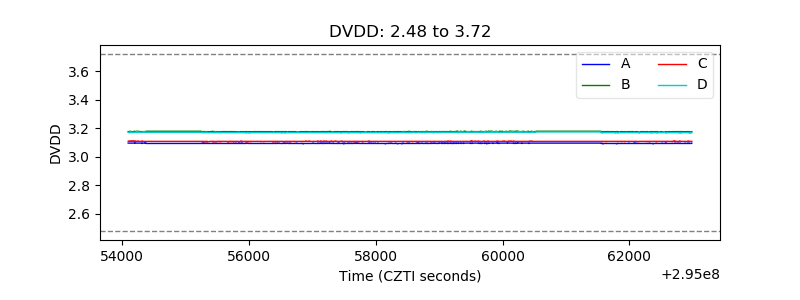

| D_VDD |  |

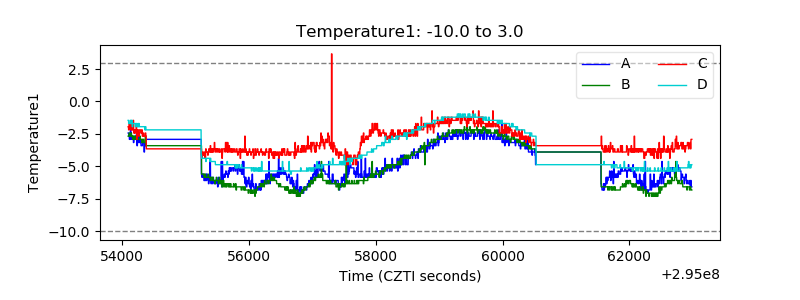

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

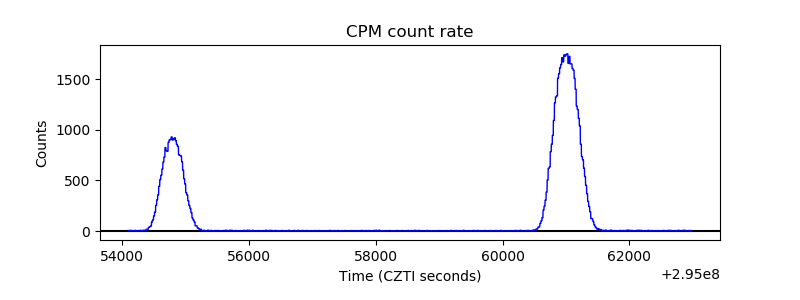

| _CPM_Rate |  |

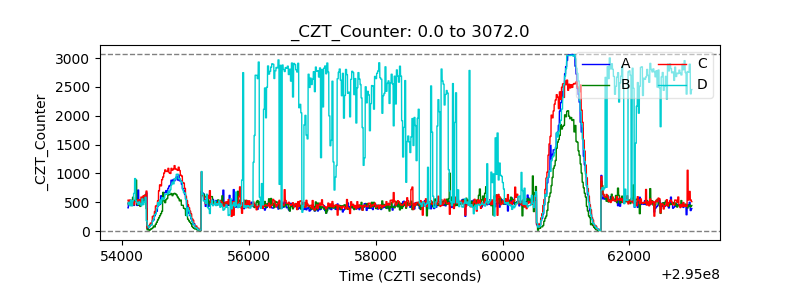

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

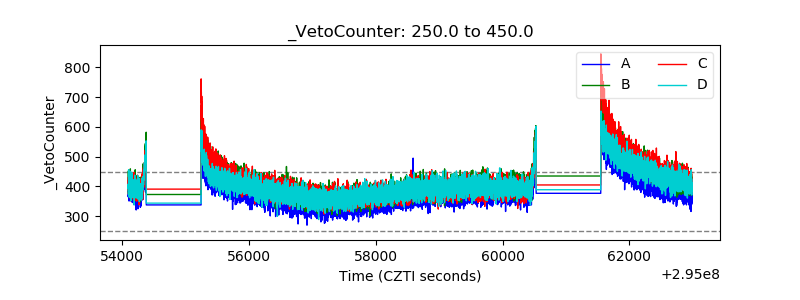

| Veto Counter |  |
