| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_112T01_9000002896_19524cztM0_level2.evt | modeM0/AS1T03_112T01_9000002896_19524cztM0_level2_quad_clean.evt |
| Size (bytes) | 393,120,000 | 89,714,880 |
| Size | 374.9 MB | 85.6 MB |
| Events in quadrant A | 2,717,388 | 589,300 |
| Events in quadrant B | 2,887,160 | 605,447 |
| Events in quadrant C | 2,918,388 | 578,464 |
| Events in quadrant D | 3,012,286 | 562,551 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11463 | 1 |
| B | 0 | 11990 | 1 |
| C | 0 | 12002 | 1 |
| D | 0 | 12499 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5441 | 12 | 0.220548% |
| B | 5442 | 52 | 0.955531% |
| C | 5442 | 49 | 0.900404% |
| D | 5442 | 63 | 1.157663% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6696 | 5442 | 5 | 5 | 0.07% | 0.09% |  |
| B | 6697 | 5443 | 23 | 23 | 0.34% | 0.42% |  |
| C | 6697 | 5443 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6697 | 5443 | 71 | 71 | 1.06% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 26942 | 189.3 | 696 | 684 | 138.7 |
| A | 13 | 254 | 8106 | 53.51 | 696 | 684 | 138.7 |
| A | 0 | 226 | 5971 | 38.12 | 696 | 684 | 138.7 |
| B | 7 | 220 | 83522 | 645.56 | 698 | 683 | 128.3 |
| B | 3 | 64 | 39841 | 305.16 | 698 | 683 | 128.3 |
| B | 12 | 111 | 14949 | 111.17 | 698 | 683 | 128.3 |
| C | 14 | 238 | 110262 | 694.63 | 681 | 688 | 157.7 |
| C | 3 | 233 | 75844 | 476.44 | 681 | 688 | 157.7 |
| C | 9 | 221 | 72979 | 458.28 | 681 | 688 | 157.7 |
| D | 13 | 104 | 327219 | 2029.77 | 680 | 661 | 160.9 |
| D | 7 | 238 | 30000 | 182.36 | 680 | 661 | 160.9 |
| D | 1 | 52 | 25921 | 157.01 | 680 | 661 | 160.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

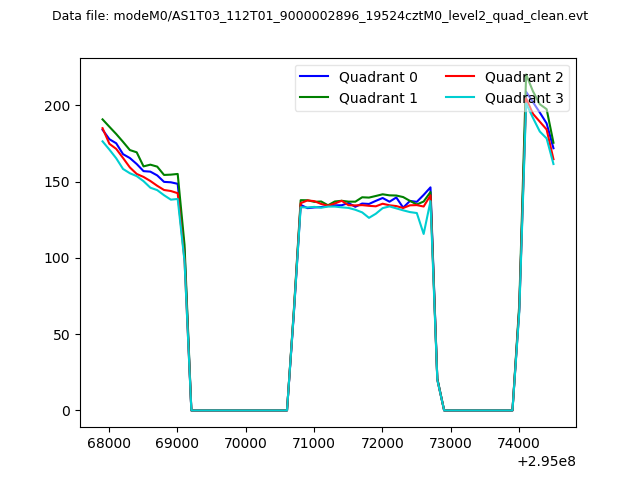

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

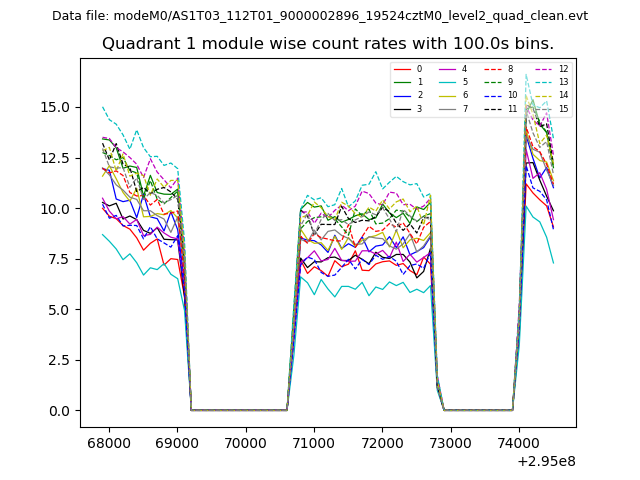

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

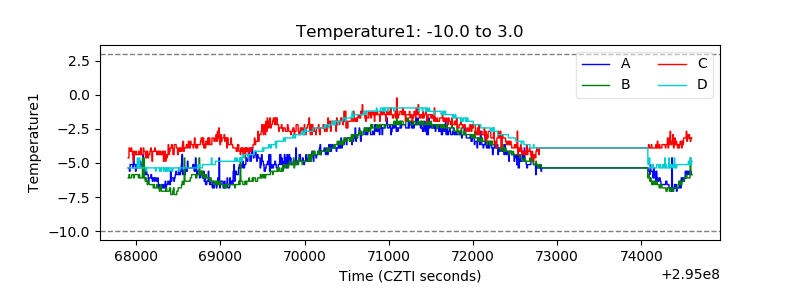

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

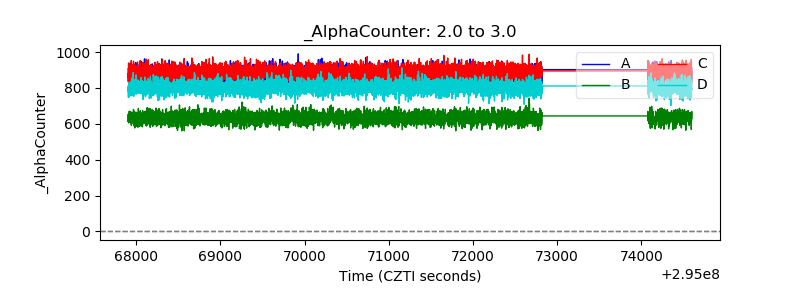

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

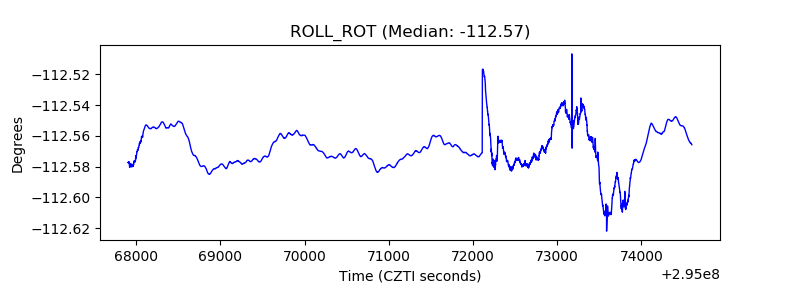

| _ROLL_ROT |  |
| _Roll_DEC |  |

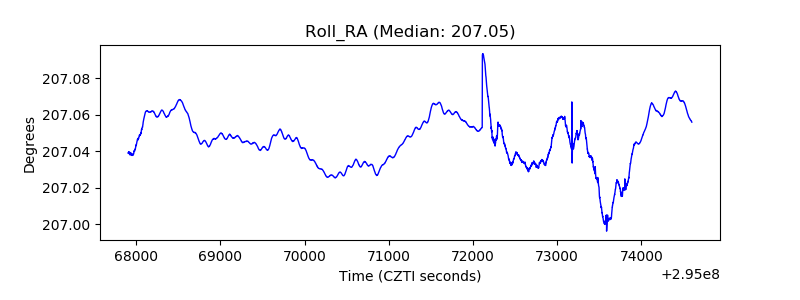

| _Roll_RA |  |

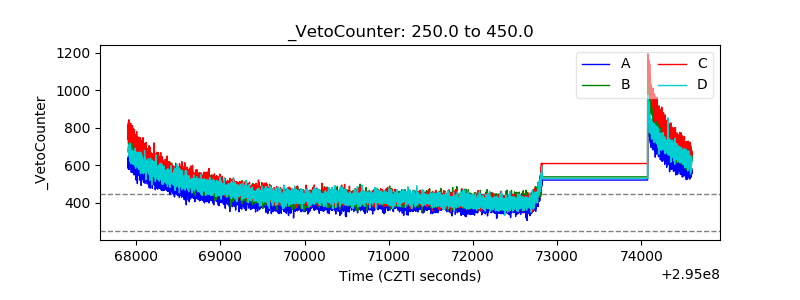

| Veto Counter |  |
