| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_108T01_9000002898_19525cztM0_level2.evt | modeM0/AS1T03_108T01_9000002898_19525cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,225,920 | 59,800,320 |
| Size | 333.0 MB | 57.0 MB |
| Events in quadrant A | 2,522,252 | 375,473 |
| Events in quadrant B | 2,612,344 | 379,084 |
| Events in quadrant C | 2,593,266 | 362,378 |
| Events in quadrant D | 2,525,725 | 360,756 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10107 | 1 |
| B | 0 | 10430 | 1 |
| C | 0 | 10326 | 1 |
| D | 0 | 10283 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4744 | 53 | 1.117201% |
| B | 4743 | 73 | 1.539110% |
| C | 4743 | 63 | 1.328273% |
| D | 4743 | 34 | 0.716846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6019 | 4744 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6018 | 4744 | 6 | 6 | 0.10% | 0.13% |  |
| C | 6018 | 4744 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6018 | 4744 | 3 | 3 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7069 | 48.77 | 652 | 639 | 131.8 |
| A | 0 | 226 | 5706 | 38.43 | 652 | 639 | 131.8 |
| A | 12 | 194 | 4803 | 31.58 | 652 | 639 | 131.8 |
| B | 7 | 220 | 43687 | 352.94 | 644 | 630 | 122.0 |
| B | 0 | 230 | 29633 | 237.74 | 644 | 630 | 122.0 |
| B | 12 | 111 | 14143 | 110.77 | 644 | 630 | 122.0 |
| C | 14 | 238 | 97934 | 678.94 | 619 | 626 | 143.3 |
| C | 3 | 233 | 51042 | 351.76 | 619 | 626 | 143.3 |
| C | 9 | 221 | 22076 | 149.66 | 619 | 626 | 143.3 |
| D | 13 | 104 | 42297 | 265.39 | 637 | 619 | 157.0 |
| D | 2 | 16 | 28083 | 174.88 | 637 | 619 | 157.0 |
| D | 2 | 234 | 17955 | 110.39 | 637 | 619 | 157.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

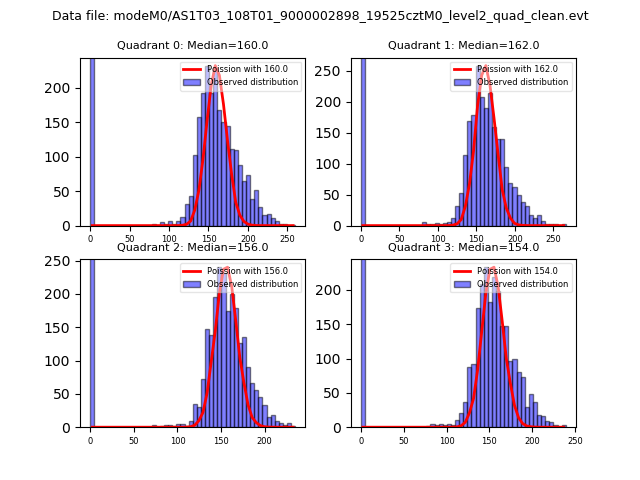

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

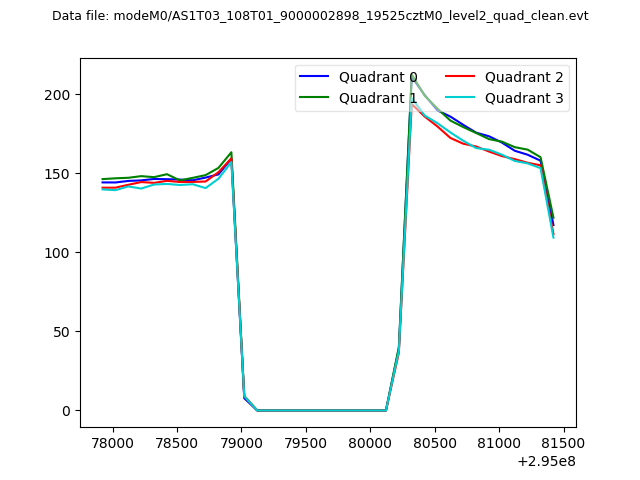

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

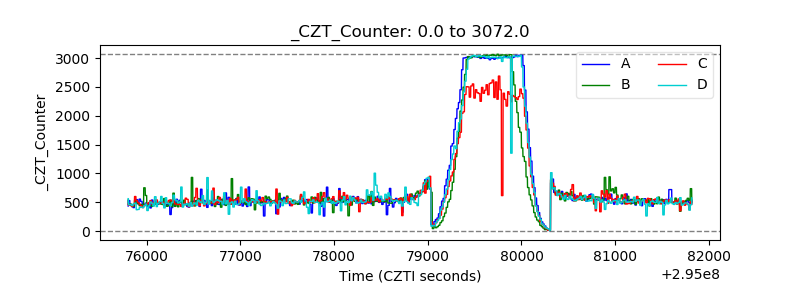

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

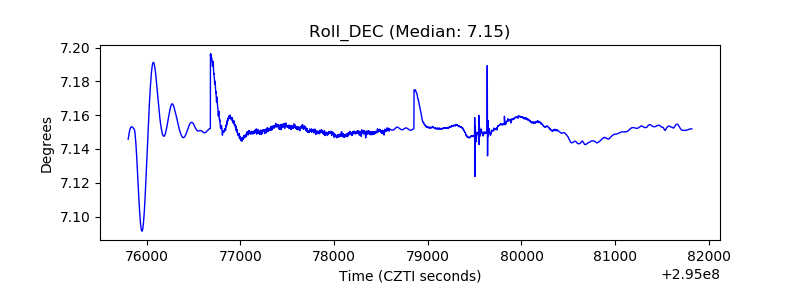

| _Roll_DEC |  |

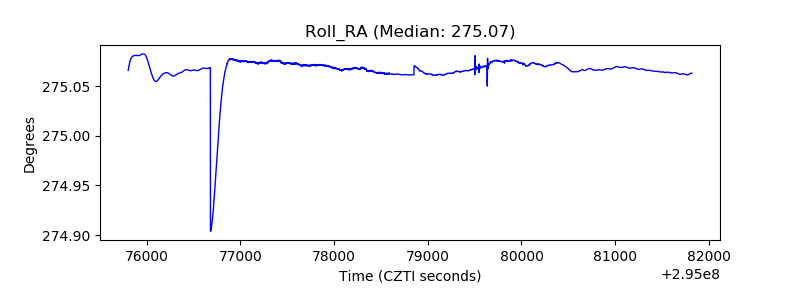

| _Roll_RA |  |
| Veto Counter |  |
