| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_115T02_9000002906_19552cztM0_level2.evt | modeM0/AS1A05_115T02_9000002906_19552cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,016,960 | 91,869,120 |
| Size | 451.1 MB | 87.6 MB |
| Events in quadrant A | 3,281,199 | 591,997 |
| Events in quadrant B | 3,330,060 | 602,320 |
| Events in quadrant C | 3,650,400 | 562,984 |
| Events in quadrant D | 3,603,810 | 552,889 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13934 | 2 |
| B | 0 | 14058 | 2 |
| C | 0 | 15055 | 2 |
| D | 0 | 15349 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6769 | 21 | 0.310238% |
| B | 6770 | 29 | 0.428360% |
| C | 6770 | 60 | 0.886263% |
| D | 6770 | 48 | 0.709010% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8949 | 6771 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8950 | 6772 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8950 | 6772 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8950 | 6772 | 26 | 26 | 0.29% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 41210 | 237.47 | 841 | 825 | 170.1 |
| A | 13 | 254 | 8183 | 43.27 | 841 | 825 | 170.1 |
| A | 0 | 226 | 7238 | 37.71 | 841 | 825 | 170.1 |
| B | 12 | 111 | 19145 | 114.71 | 837 | 815 | 159.8 |
| B | 11 | 111 | 17003 | 101.31 | 837 | 815 | 159.8 |
| B | 0 | 198 | 16983 | 101.18 | 837 | 815 | 159.8 |
| C | 7 | 247 | 297453 | 1588.0 | 802 | 810 | 186.8 |
| C | 14 | 238 | 124825 | 663.88 | 802 | 810 | 186.8 |
| C | 3 | 233 | 99606 | 528.88 | 802 | 810 | 186.8 |
| D | 7 | 238 | 329832 | 1701.45 | 805 | 785 | 193.4 |
| D | 1 | 52 | 154592 | 795.31 | 805 | 785 | 193.4 |
| D | 12 | 233 | 44251 | 224.76 | 805 | 785 | 193.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

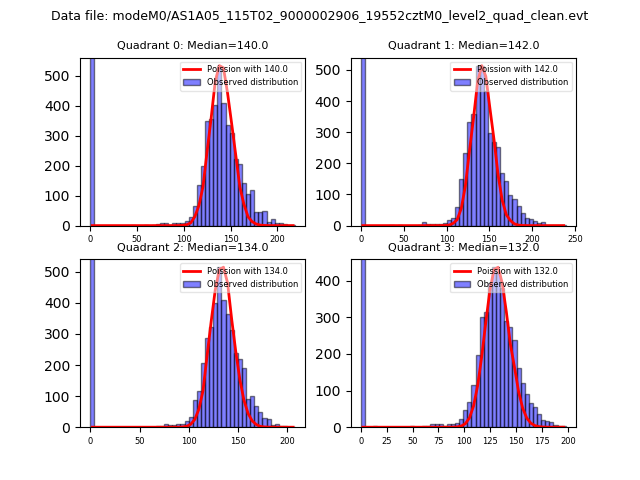

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

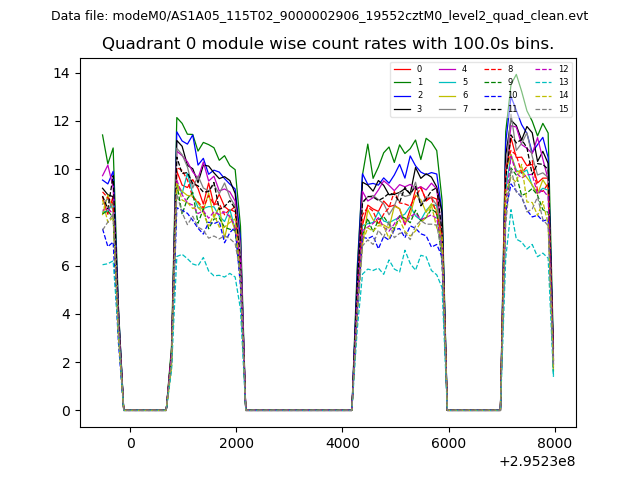

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

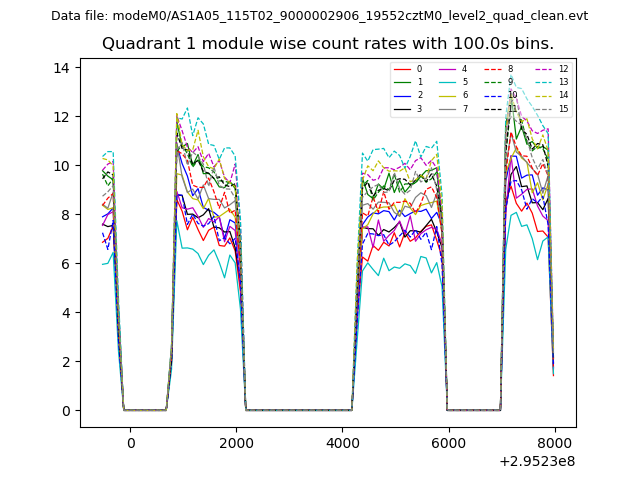

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

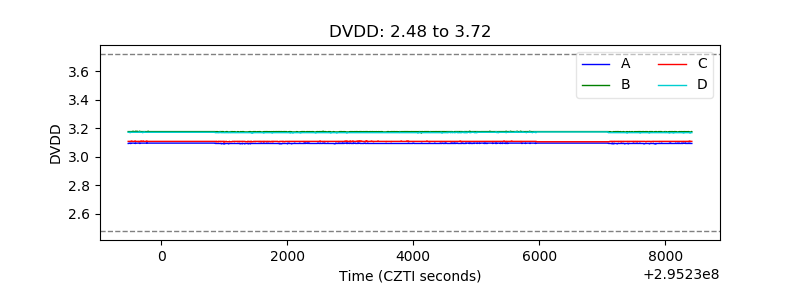

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

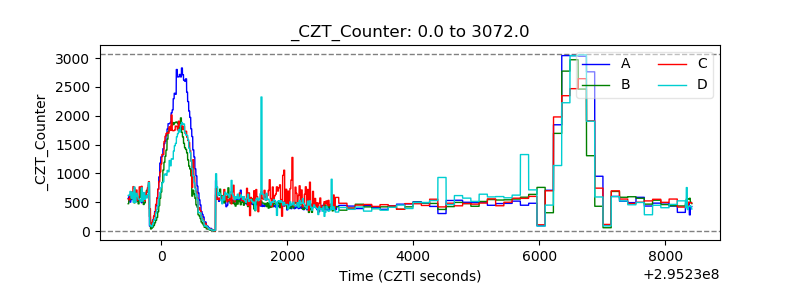

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

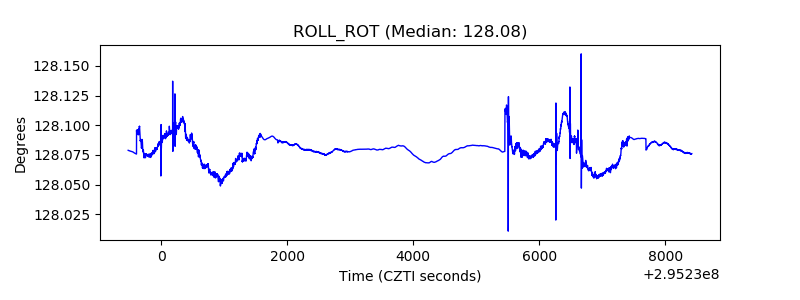

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
