| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_005T01_9000002908_19563cztM0_level2.evt | modeM0/AS1T03_005T01_9000002908_19563cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,219,227,840 | 172,923,840 |
| Size | 1.1 GB | 164.9 MB |
| Events in quadrant A | 7,289,287 | 1,078,058 |
| Events in quadrant B | 7,232,395 | 1,093,312 |
| Events in quadrant C | 7,939,282 | 1,041,127 |
| Events in quadrant D | 13,441,919 | 980,050 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 308 | 0 |
| B | 0 | 308 | 0 |
| C | 0 | 308 | 0 |
| D | 0 | 308 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31849 | 3 |
| B | 0 | 31497 | 3 |
| C | 0 | 33006 | 3 |
| D | 0 | 50426 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15133 | 213 | 1.407520% |
| B | 15133 | 172 | 1.136589% |
| C | 15132 | 241 | 1.592651% |
| D | 15132 | 1288 | 8.511763% |

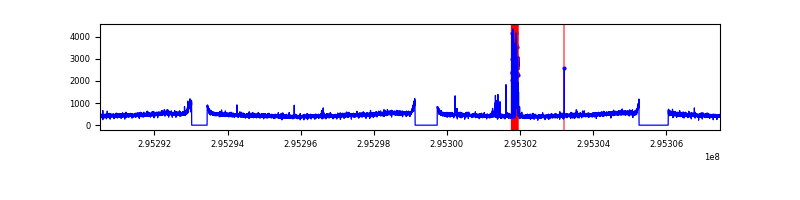

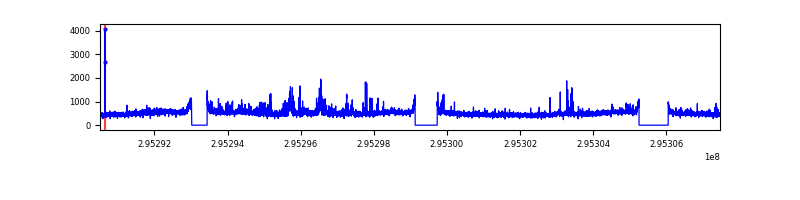

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16963 | 15134 | 77 | 77 | 0.45% | 0.51% |  |
| B | 16963 | 15135 | 12 | 12 | 0.07% | 0.08% |  |
| C | 16962 | 15135 | 2 | 2 | 0.01% | 0.01% |  |
| D | 16962 | 15133 | 969 | 969 | 5.71% | 6.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 306345 | 829.87 | 1807 | 1766 | 367.0 |
| A | 13 | 254 | 23103 | 58.13 | 1807 | 1766 | 367.0 |
| A | 0 | 226 | 15687 | 37.93 | 1807 | 1766 | 367.0 |
| B | 3 | 64 | 46821 | 129.82 | 1805 | 1757 | 347.1 |
| B | 12 | 111 | 42849 | 118.38 | 1805 | 1757 | 347.1 |
| B | 11 | 111 | 38428 | 105.65 | 1805 | 1757 | 347.1 |
| C | 3 | 233 | 618600 | 1520.38 | 1733 | 1740 | 405.7 |
| C | 14 | 238 | 271005 | 663.66 | 1733 | 1740 | 405.7 |
| C | 9 | 221 | 120929 | 293.77 | 1733 | 1740 | 405.7 |
| D | 7 | 238 | 2396055 | 5852.83 | 1689 | 1641 | 409.1 |
| D | 1 | 52 | 2389533 | 5836.88 | 1689 | 1641 | 409.1 |
| D | 12 | 218 | 1501695 | 3666.68 | 1689 | 1641 | 409.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

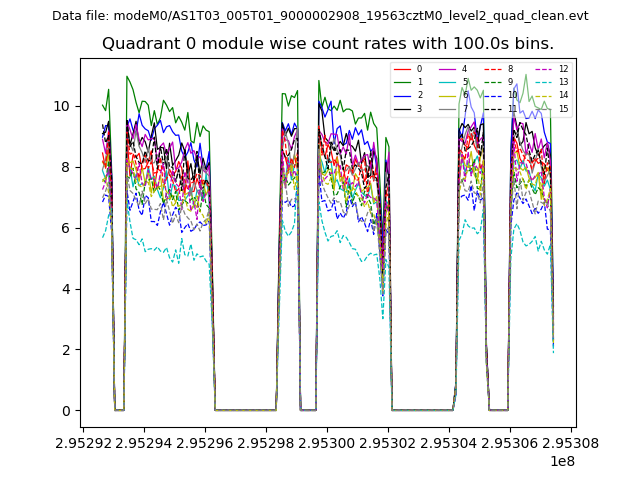

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

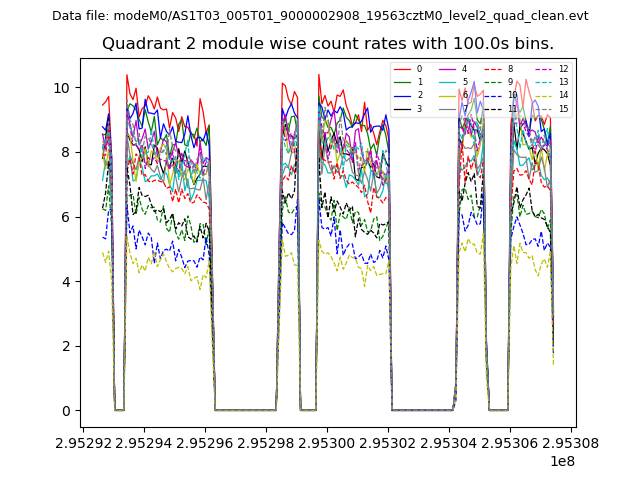

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

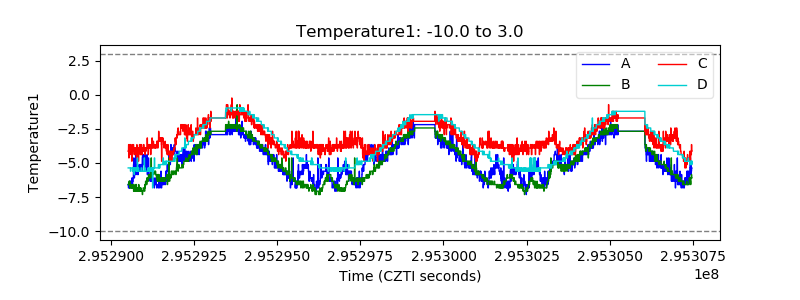

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

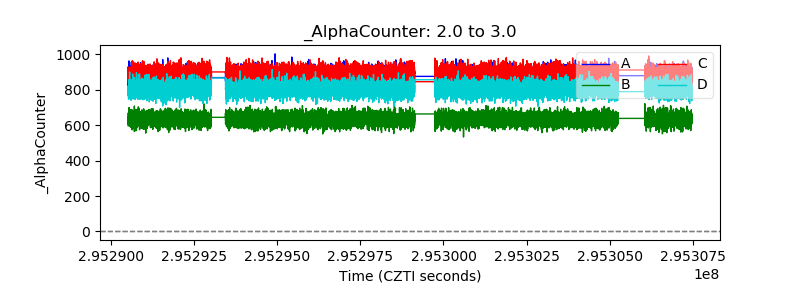

| Alpha Counter |  |
| _CPM_Rate |  |

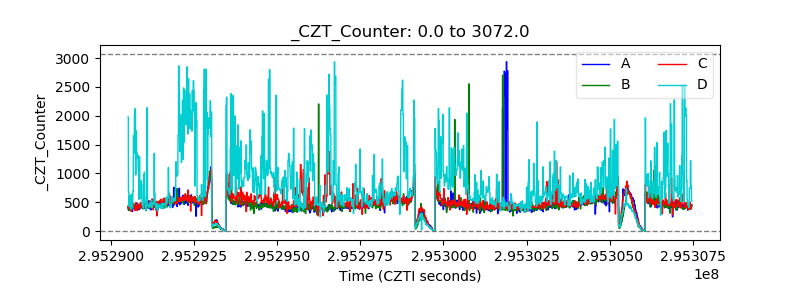

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

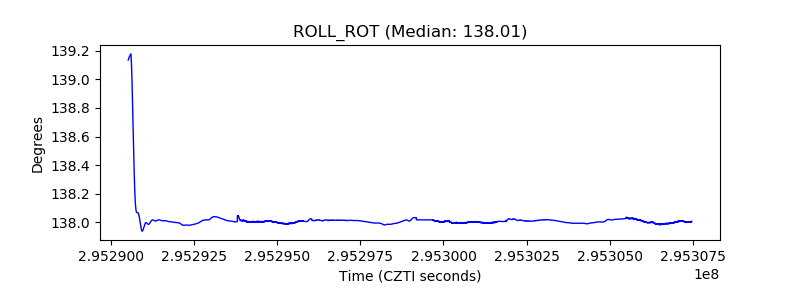

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
