| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T08_9000002910_19578cztM0_level2.evt | modeM0/AS1A05_104T08_9000002910_19578cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,094,025,600 | 180,717,120 |
| Size | 1.0 GB | 172.3 MB |
| Events in quadrant A | 7,231,426 | 1,128,892 |
| Events in quadrant B | 7,448,401 | 1,138,230 |
| Events in quadrant C | 7,655,834 | 1,080,391 |
| Events in quadrant D | 9,736,151 | 1,043,458 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32086 | 3 |
| B | 0 | 32443 | 3 |
| C | 0 | 33206 | 4 |
| D | 0 | 39152 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15681 | 96 | 0.612206% |
| B | 15681 | 113 | 0.720617% |
| C | 15680 | 251 | 1.600765% |
| D | 15680 | 529 | 3.373724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17821 | 15683 | 1 | 1 | 0.01% | 0.01% |  |
| B | 17821 | 15682 | 9 | 9 | 0.05% | 0.06% |  |
| C | 17820 | 15682 | 11 | 11 | 0.06% | 0.07% |  |
| D | 17820 | 15683 | 397 | 397 | 2.23% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 23579 | 57.33 | 1869 | 1827 | 379.4 |
| A | 9 | 143 | 22716 | 55.06 | 1869 | 1827 | 379.4 |
| A | 0 | 226 | 16262 | 38.05 | 1869 | 1827 | 379.4 |
| B | 12 | 111 | 44392 | 119.79 | 1864 | 1820 | 355.4 |
| B | 11 | 111 | 39623 | 106.37 | 1864 | 1820 | 355.4 |
| B | 14 | 111 | 34506 | 91.98 | 1864 | 1820 | 355.4 |
| C | 14 | 238 | 276955 | 657.24 | 1786 | 1801 | 418.6 |
| C | 3 | 233 | 252799 | 599.54 | 1786 | 1801 | 418.6 |
| C | 7 | 247 | 82467 | 192.68 | 1786 | 1801 | 418.6 |
| D | 1 | 52 | 1518704 | 3475.27 | 1789 | 1736 | 436.5 |
| D | 7 | 238 | 556400 | 1270.7 | 1789 | 1736 | 436.5 |
| D | 12 | 218 | 525592 | 1200.12 | 1789 | 1736 | 436.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

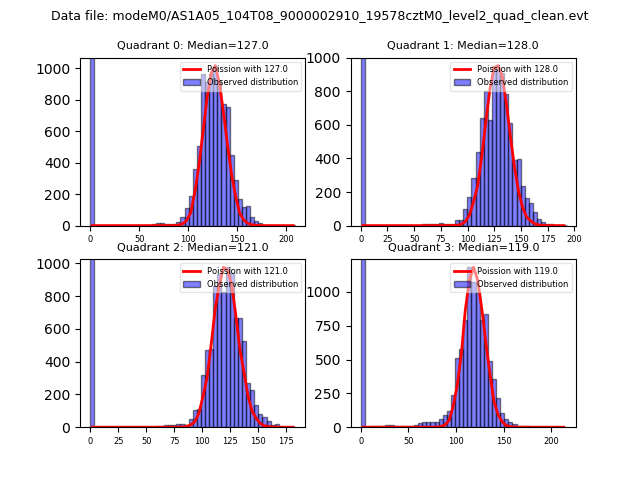

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

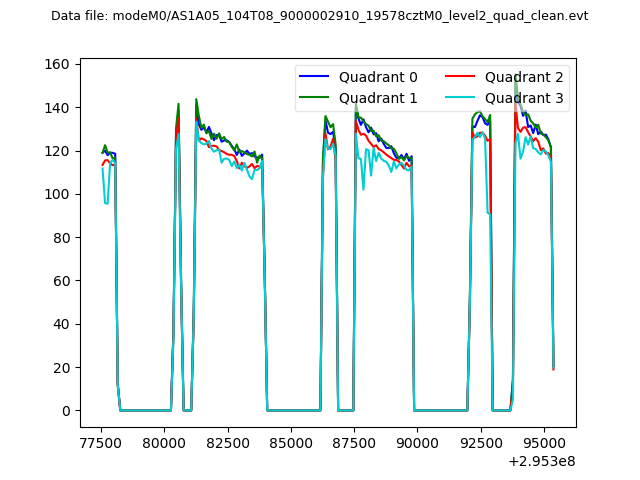

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

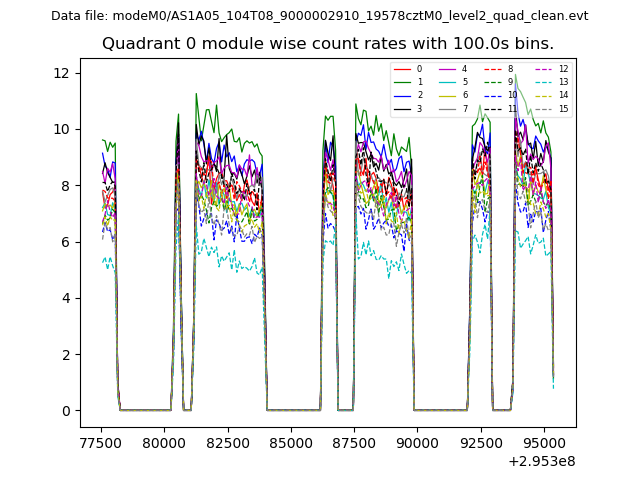

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

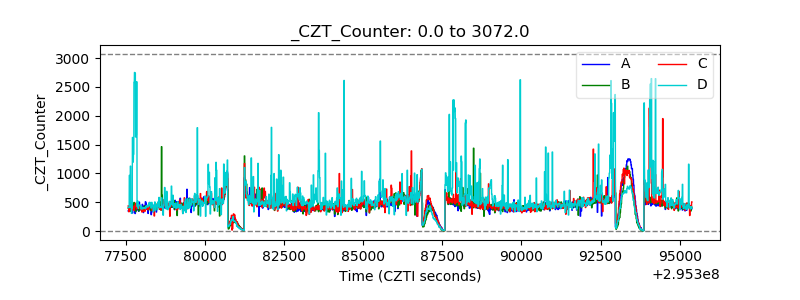

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

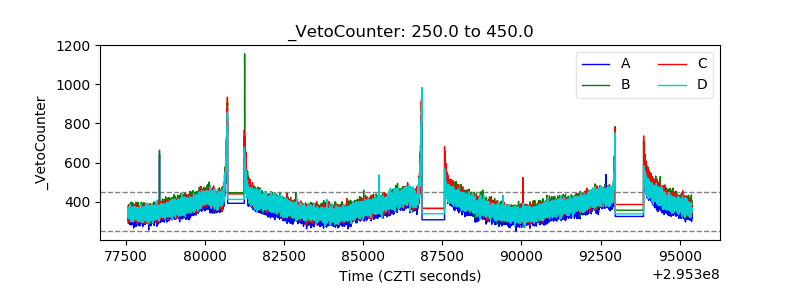

| Veto Counter |  |
