| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_115T01_9000002914_19593cztM0_level2.evt | modeM0/AS1T03_115T01_9000002914_19593cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,616,000 | 99,527,040 |
| Size | 408.8 MB | 94.9 MB |
| Events in quadrant A | 3,146,932 | 647,234 |
| Events in quadrant B | 3,242,462 | 657,208 |
| Events in quadrant C | 3,068,993 | 636,023 |
| Events in quadrant D | 3,082,230 | 622,445 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13716 | 1 |
| B | 0 | 13962 | 1 |
| C | 0 | 13397 | 1 |
| D | 0 | 13702 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 113 | 1.745713% |
| B | 6474 | 63 | 0.973123% |
| C | 6474 | 67 | 1.034909% |
| D | 6474 | 23 | 0.355267% |

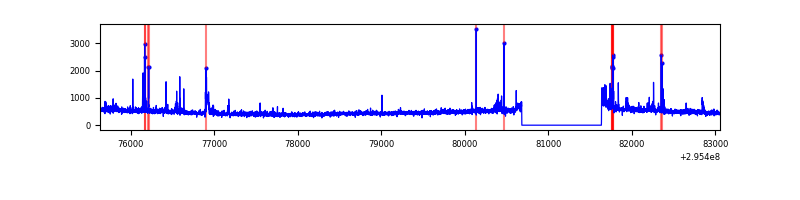

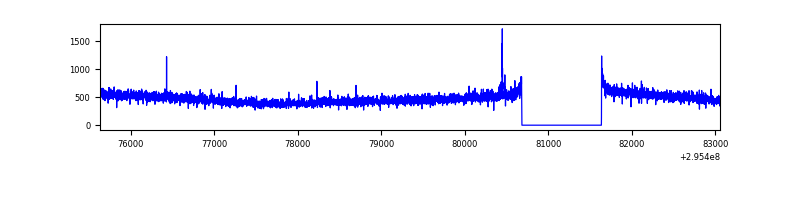

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 6474 | 55 | 55 | 0.74% | 0.85% |  |
| B | 7429 | 6475 | 15 | 15 | 0.20% | 0.23% |  |
| C | 7429 | 6475 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7429 | 6474 | 8 | 8 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 183834 | 1174.89 | 766 | 750 | 155.8 |
| A | 13 | 254 | 9026 | 53.11 | 766 | 750 | 155.8 |
| A | 0 | 226 | 6573 | 37.37 | 766 | 750 | 155.8 |
| B | 0 | 189 | 70709 | 475.07 | 770 | 752 | 147.3 |
| B | 7 | 220 | 43183 | 288.15 | 770 | 752 | 147.3 |
| B | 0 | 197 | 38518 | 256.47 | 770 | 752 | 147.3 |
| C | 14 | 238 | 116566 | 663.44 | 745 | 749 | 174.6 |
| C | 3 | 233 | 29880 | 166.87 | 745 | 749 | 174.6 |
| C | 7 | 247 | 10371 | 55.12 | 745 | 749 | 174.6 |
| D | 7 | 238 | 141012 | 762.18 | 752 | 729 | 184.1 |
| D | 1 | 52 | 43399 | 231.83 | 752 | 729 | 184.1 |
| D | 2 | 234 | 27516 | 145.54 | 752 | 729 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

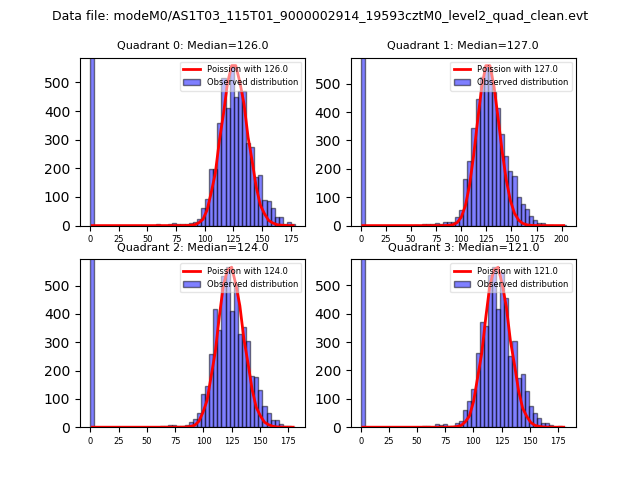

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

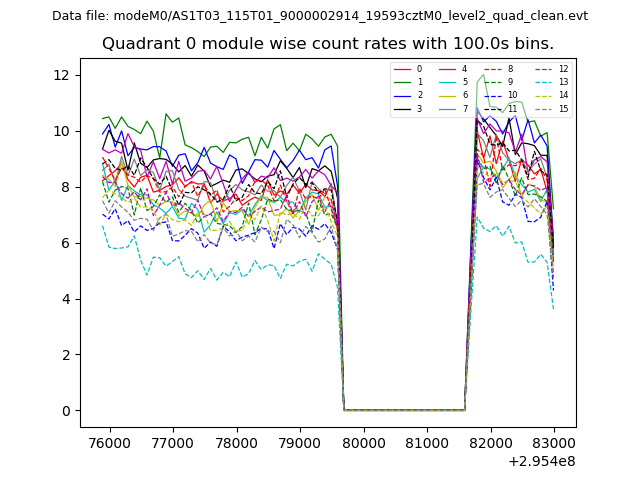

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

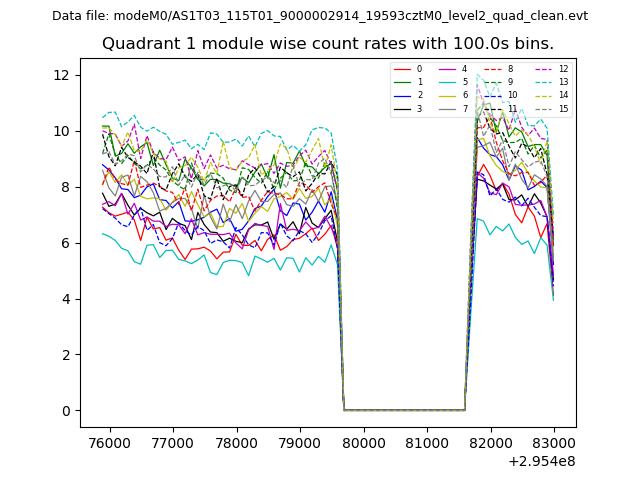

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

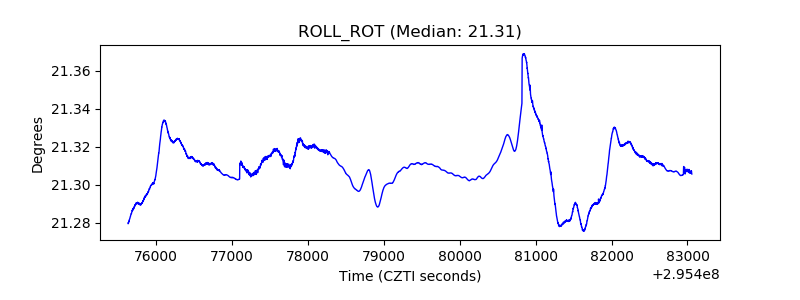

| _ROLL_ROT |  |
| _Roll_DEC |  |

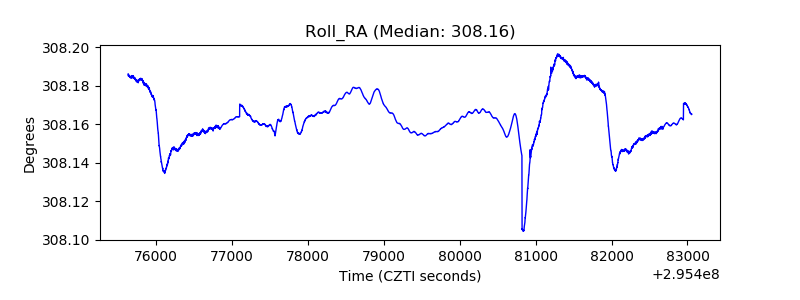

| _Roll_RA |  |

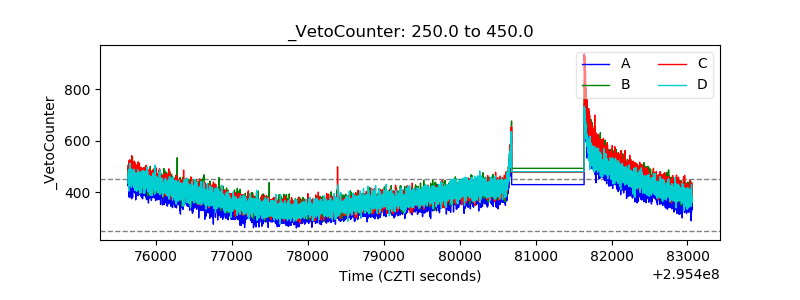

| Veto Counter |  |
