| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_115T01_9000002914_19599cztM0_level2.evt | modeM0/AS1T03_115T01_9000002914_19599cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,364,800 | 89,475,840 |
| Size | 409.5 MB | 85.3 MB |
| Events in quadrant A | 3,132,208 | 582,187 |
| Events in quadrant B | 3,098,799 | 590,816 |
| Events in quadrant C | 2,997,608 | 561,720 |
| Events in quadrant D | 3,359,046 | 548,045 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13054 | 2 |
| B | 0 | 12946 | 1 |
| C | 0 | 12704 | 1 |
| D | 0 | 14090 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6109 | 44 | 0.720249% |
| B | 6110 | 59 | 0.965630% |
| C | 6110 | 61 | 0.998363% |
| D | 6110 | 45 | 0.736498% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

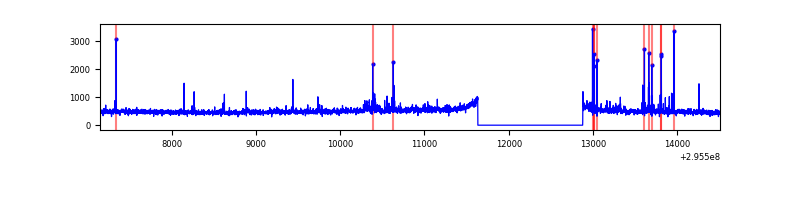

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7354 | 6110 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7355 | 6111 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7355 | 6111 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7355 | 6111 | 24 | 24 | 0.33% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 105779 | 679.79 | 766 | 752 | 154.5 |
| A | 11 | 29 | 55603 | 355.03 | 766 | 752 | 154.5 |
| A | 11 | 47 | 14355 | 88.05 | 766 | 752 | 154.5 |
| B | 4 | 216 | 45794 | 310.9 | 762 | 743 | 144.9 |
| B | 0 | 230 | 17480 | 115.5 | 762 | 743 | 144.9 |
| B | 12 | 111 | 16437 | 108.31 | 762 | 743 | 144.9 |
| C | 14 | 238 | 114611 | 677.76 | 725 | 731 | 168.0 |
| C | 9 | 221 | 31207 | 181.38 | 725 | 731 | 168.0 |
| C | 3 | 233 | 24124 | 139.22 | 725 | 731 | 168.0 |
| D | 1 | 52 | 330215 | 1850.81 | 735 | 713 | 178.0 |
| D | 7 | 238 | 163361 | 913.59 | 735 | 713 | 178.0 |
| D | 7 | 38 | 56434 | 312.99 | 735 | 713 | 178.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

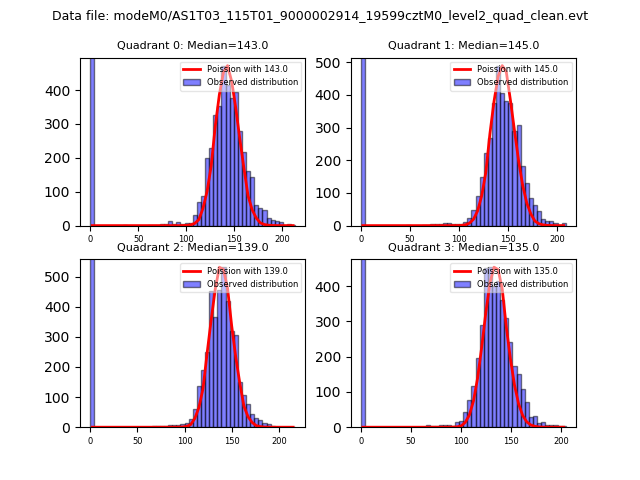

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

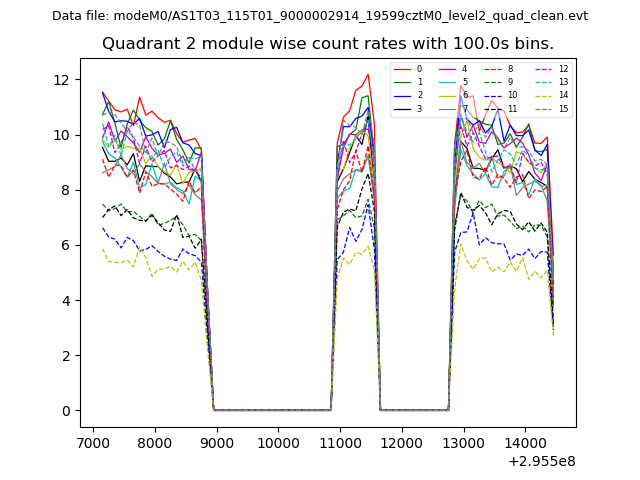

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

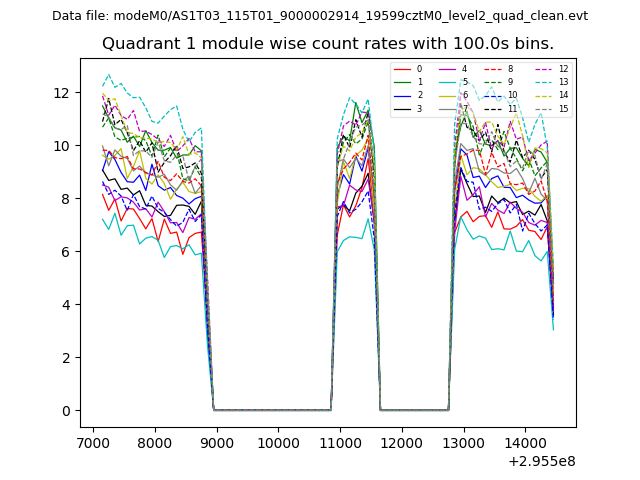

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

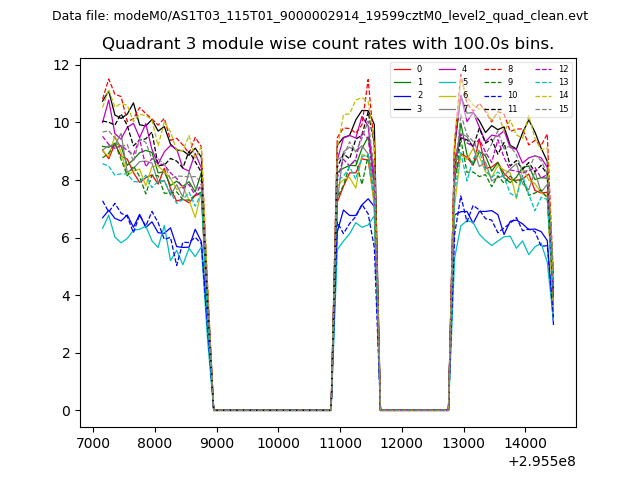

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

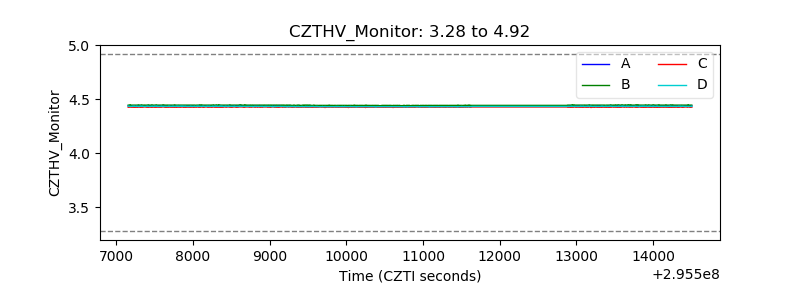

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

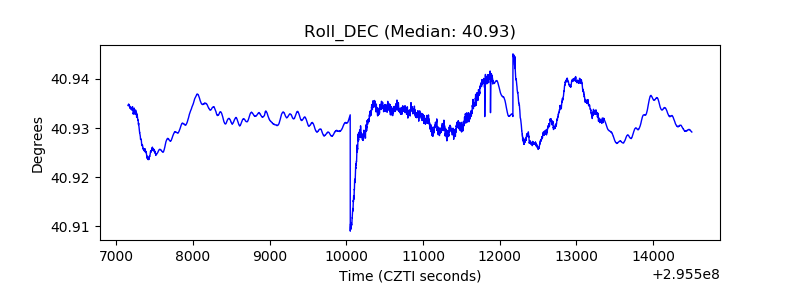

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
