| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_115T01_9000002914_19611cztM0_level2.evt | modeM0/AS1T03_115T01_9000002914_19611cztM0_level2_quad_clean.evt |
| Size (bytes) | 340,145,280 | 72,152,640 |
| Size | 324.4 MB | 68.8 MB |
| Events in quadrant A | 2,580,756 | 460,771 |
| Events in quadrant B | 2,436,153 | 477,108 |
| Events in quadrant C | 2,632,859 | 455,931 |
| Events in quadrant D | 2,311,386 | 441,060 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10896 | 1 |
| B | 0 | 10514 | 1 |
| C | 0 | 11157 | 1 |
| D | 0 | 10380 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4990 | 25 | 0.501002% |
| B | 4990 | 23 | 0.460922% |
| C | 4990 | 97 | 1.943888% |
| D | 4990 | 7 | 0.140281% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4990 | 4990 | 12 | 12 | 0.24% | 0.24% |  |
| B | 4990 | 4990 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4990 | 4990 | 18 | 18 | 0.36% | 0.36% |  |
| D | 4990 | 4990 | 2 | 2 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 189813 | 1541.25 | 611 | 600 | 122.8 |
| A | 5 | 16 | 39491 | 316.79 | 611 | 600 | 122.8 |
| A | 0 | 226 | 5337 | 38.59 | 611 | 600 | 122.8 |
| B | 4 | 216 | 14887 | 122.98 | 613 | 598 | 116.2 |
| B | 12 | 111 | 13392 | 110.11 | 613 | 598 | 116.2 |
| B | 11 | 111 | 11538 | 94.15 | 613 | 598 | 116.2 |
| C | 5 | 112 | 183162 | 1345.33 | 585 | 589 | 135.7 |
| C | 14 | 238 | 92347 | 676.14 | 585 | 589 | 135.7 |
| C | 3 | 233 | 53551 | 390.26 | 585 | 589 | 135.7 |
| D | 1 | 52 | 30354 | 209.27 | 589 | 572 | 142.3 |
| D | 7 | 96 | 21629 | 147.96 | 589 | 572 | 142.3 |
| D | 2 | 234 | 20445 | 139.64 | 589 | 572 | 142.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

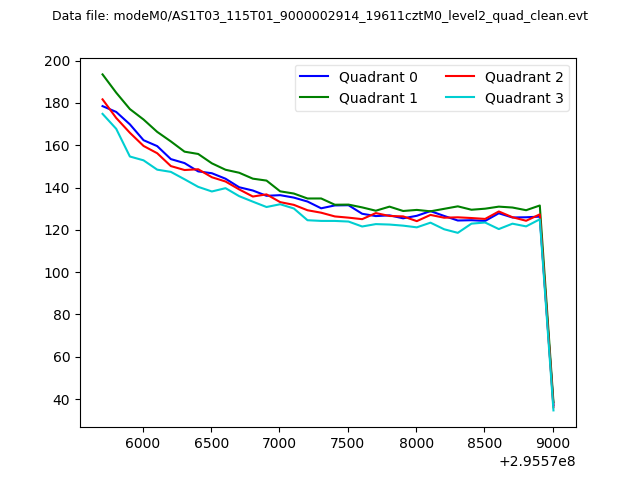

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

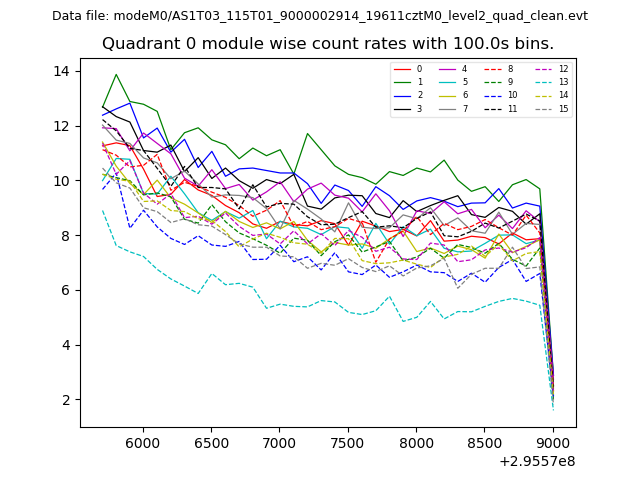

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

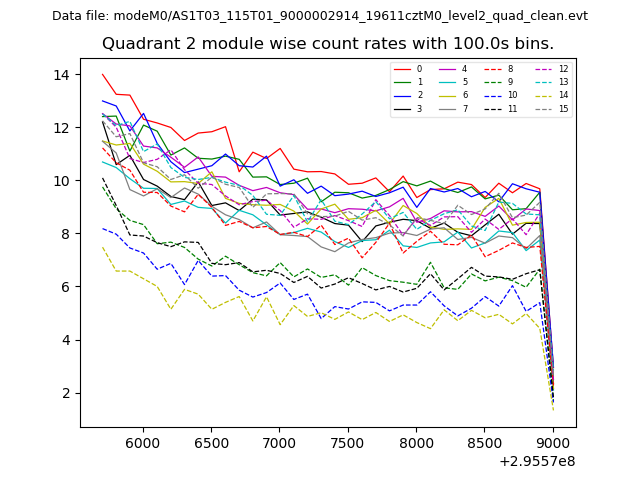

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

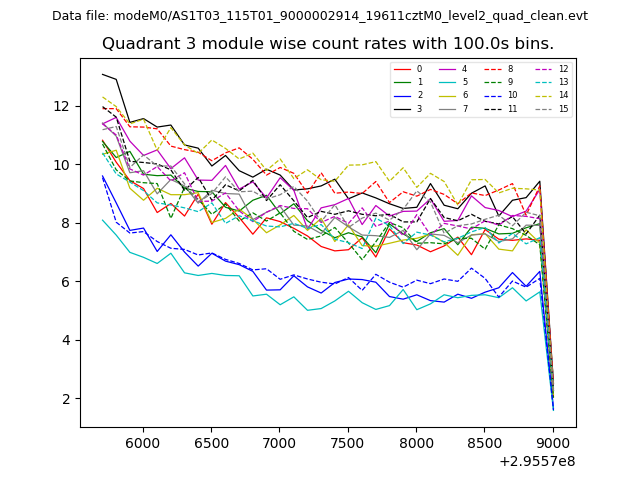

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

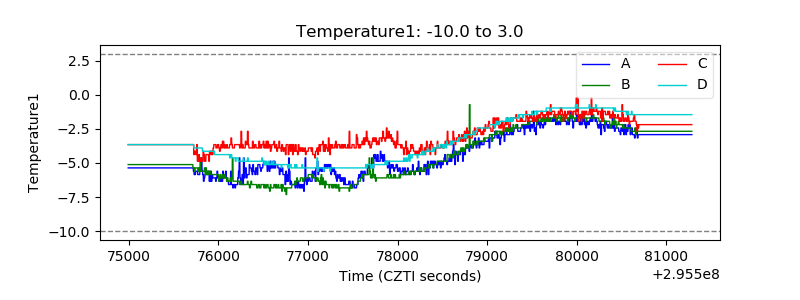

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

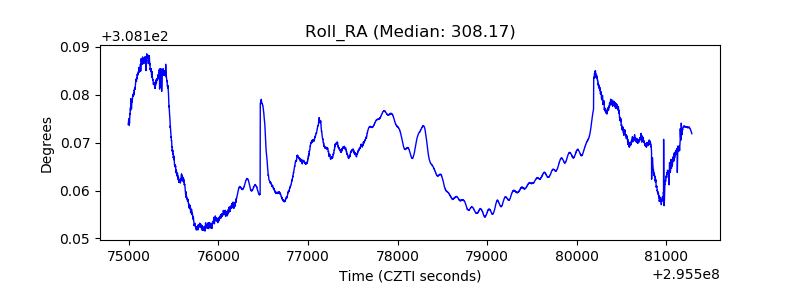

| _Roll_RA |  |
| Veto Counter |  |
