| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_116T01_9000002916_19613cztM0_level2.evt | modeM0/AS1T03_116T01_9000002916_19613cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,263,360 | 101,062,080 |
| Size | 453.2 MB | 96.4 MB |
| Events in quadrant A | 3,400,531 | 671,704 |
| Events in quadrant B | 3,502,749 | 678,781 |
| Events in quadrant C | 3,506,310 | 633,466 |
| Events in quadrant D | 3,543,683 | 624,644 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13812 | 2 |
| B | 0 | 14266 | 2 |
| C | 0 | 14201 | 2 |
| D | 0 | 14584 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6481 | 59 | 0.910353% |
| B | 6481 | 92 | 1.419534% |
| C | 6481 | 123 | 1.897855% |
| D | 6481 | 58 | 0.894924% |

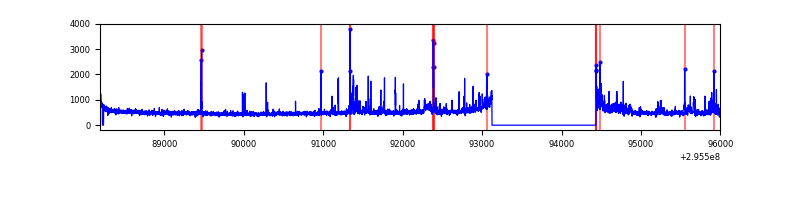

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

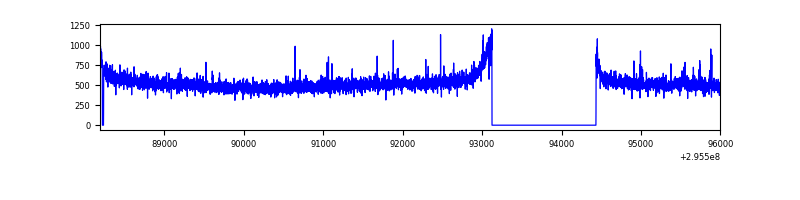

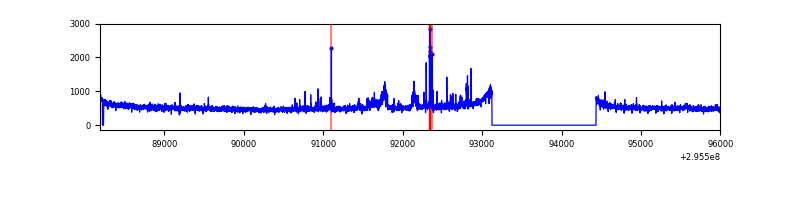

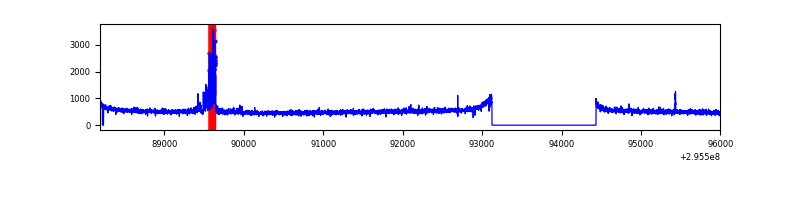

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 6483 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7806 | 6483 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7806 | 6483 | 32 | 32 | 0.41% | 0.49% |  |
| D | 7806 | 6483 | 16 | 16 | 0.20% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 39700 | 224.62 | 866 | 850 | 173.0 |
| A | 9 | 143 | 29767 | 167.19 | 866 | 850 | 173.0 |
| A | 0 | 226 | 7585 | 38.94 | 866 | 850 | 173.0 |
| B | 4 | 216 | 76833 | 469.28 | 856 | 836 | 161.9 |
| B | 7 | 220 | 62465 | 380.55 | 856 | 836 | 161.9 |
| B | 12 | 111 | 18776 | 110.78 | 856 | 836 | 161.9 |
| C | 3 | 233 | 206262 | 1091.6 | 810 | 819 | 188.2 |
| C | 14 | 238 | 129108 | 681.65 | 810 | 819 | 188.2 |
| C | 9 | 15 | 6953 | 32.59 | 810 | 819 | 188.2 |
| D | 7 | 238 | 338755 | 1687.72 | 830 | 810 | 200.2 |
| D | 1 | 52 | 51555 | 253.42 | 830 | 810 | 200.2 |
| D | 2 | 234 | 25036 | 120.99 | 830 | 810 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

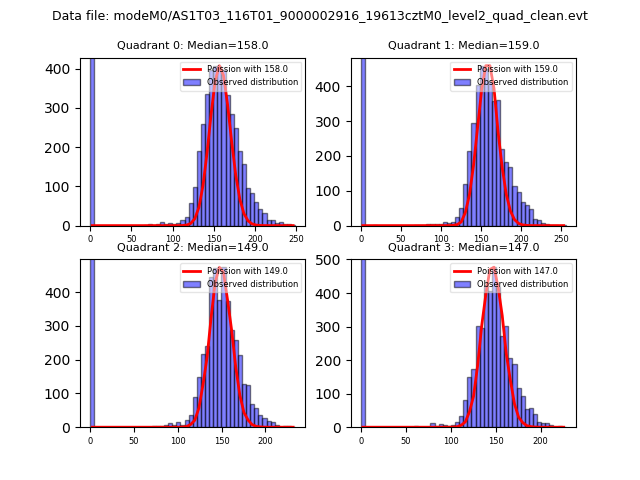

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

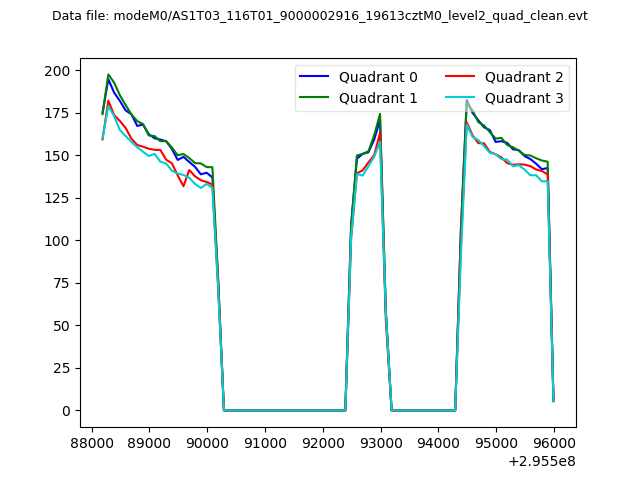

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

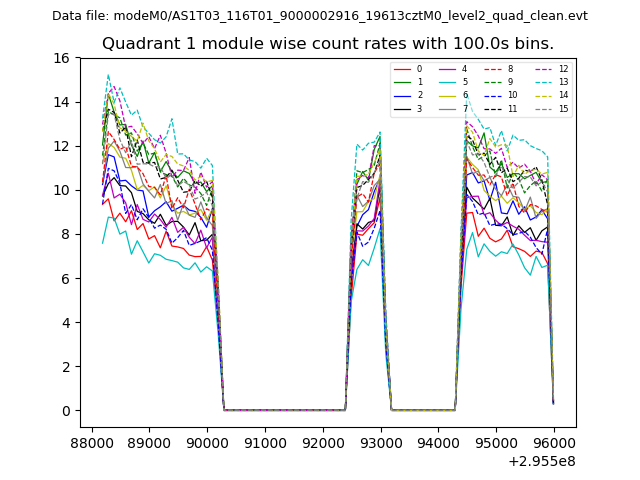

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

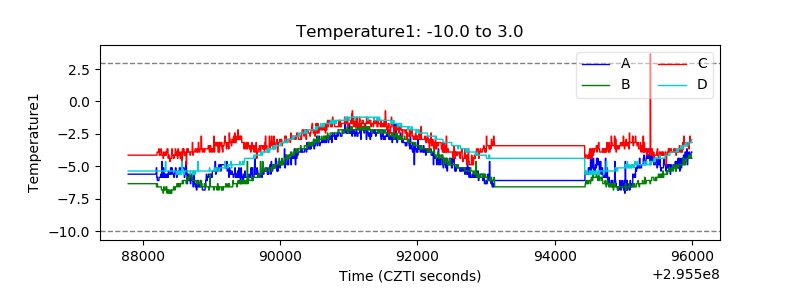

| Temperature 1 |  |

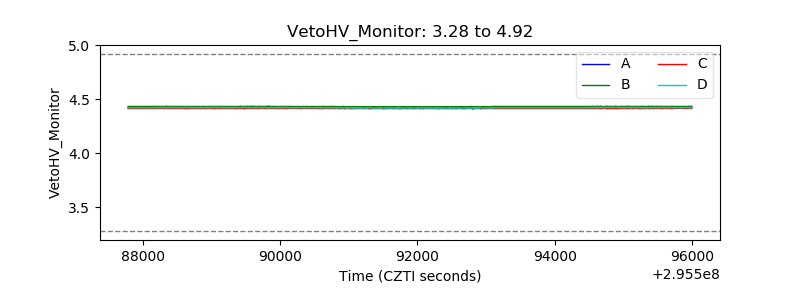

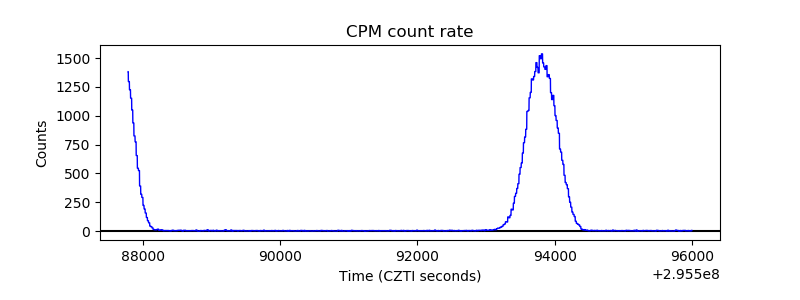

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

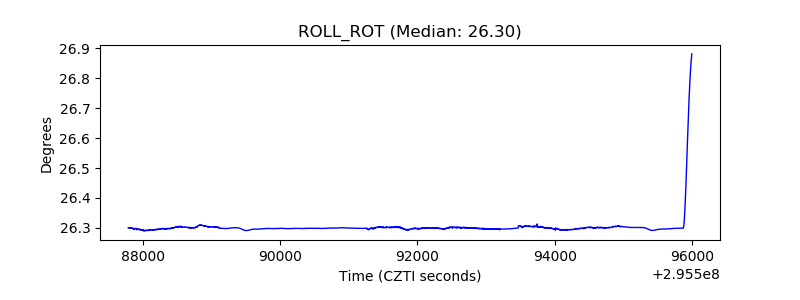

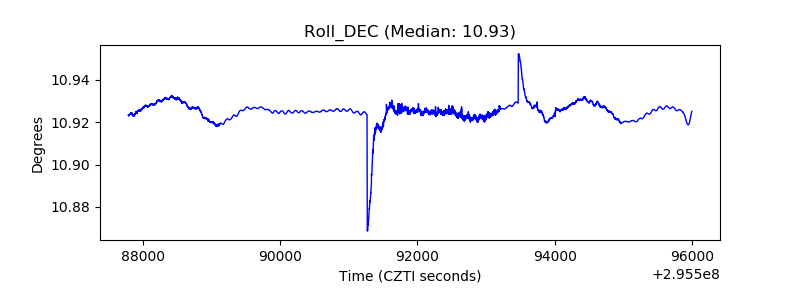

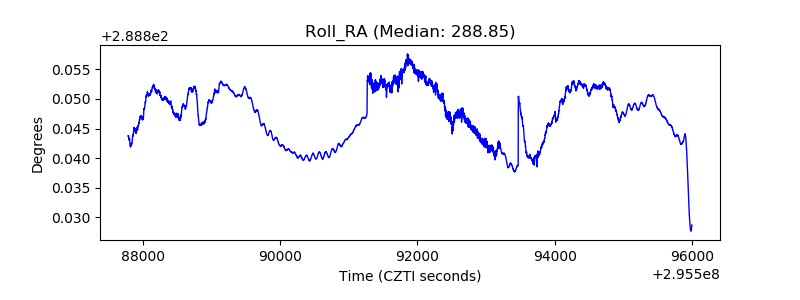

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

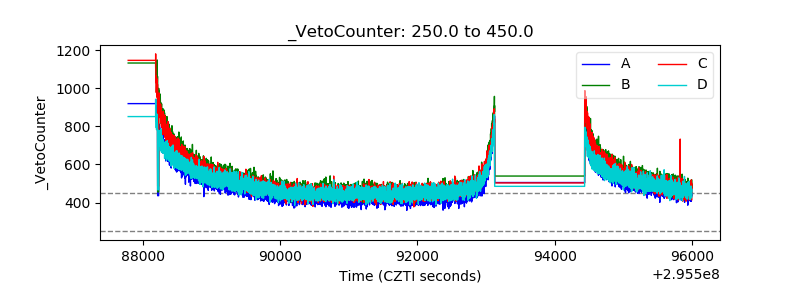

| Veto Counter |  |
