| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_116T01_9000002916_19627cztM0_level2.evt | modeM0/AS1T03_116T01_9000002916_19627cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,528,960 | 99,645,120 |
| Size | 478.3 MB | 95.0 MB |
| Events in quadrant A | 3,300,055 | 663,836 |
| Events in quadrant B | 3,351,363 | 676,289 |
| Events in quadrant C | 3,418,893 | 629,196 |
| Events in quadrant D | 4,681,335 | 598,944 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13536 | 2 |
| B | 0 | 13742 | 2 |
| C | 0 | 13913 | 2 |
| D | 0 | 18181 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 50 | 0.776639% |
| B | 6438 | 73 | 1.133893% |
| C | 6438 | 96 | 1.491146% |
| D | 6438 | 351 | 5.452004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7763 | 6438 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7763 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7763 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7763 | 6438 | 245 | 245 | 3.16% | 3.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7398 | 38.82 | 855 | 843 | 168.8 |
| A | 13 | 254 | 6919 | 35.99 | 855 | 843 | 168.8 |
| A | 3 | 137 | 6206 | 31.76 | 855 | 843 | 168.8 |
| B | 12 | 111 | 18440 | 110.62 | 849 | 830 | 159.2 |
| B | 11 | 111 | 16194 | 96.51 | 849 | 830 | 159.2 |
| B | 14 | 111 | 14277 | 84.47 | 849 | 830 | 159.2 |
| C | 3 | 233 | 141923 | 751.4 | 807 | 813 | 187.8 |
| C | 14 | 238 | 128371 | 679.24 | 807 | 813 | 187.8 |
| C | 13 | 61 | 5789 | 26.5 | 807 | 813 | 187.8 |
| D | 12 | 218 | 792438 | 4066.16 | 808 | 787 | 194.7 |
| D | 1 | 52 | 739579 | 3794.66 | 808 | 787 | 194.7 |
| D | 7 | 238 | 28124 | 140.41 | 808 | 787 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

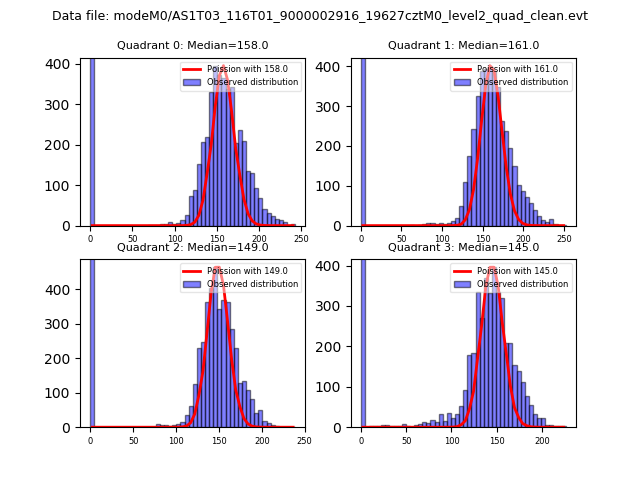

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
