| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_012T01_9000002918_19631cztM0_level2.evt | modeM0/AS1A05_012T01_9000002918_19631cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,406,080 | 99,645,120 |
| Size | 575.5 MB | 95.0 MB |
| Events in quadrant A | 3,978,468 | 633,062 |
| Events in quadrant B | 4,187,711 | 637,652 |
| Events in quadrant C | 4,104,466 | 606,588 |
| Events in quadrant D | 5,463,783 | 587,312 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16923 | 3 |
| B | 0 | 17421 | 3 |
| C | 0 | 17127 | 3 |
| D | 0 | 21428 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7958 | 415 | 5.214878% |
| B | 7958 | 457 | 5.742649% |
| C | 7959 | 428 | 5.377560% |
| D | 7959 | 630 | 7.915567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

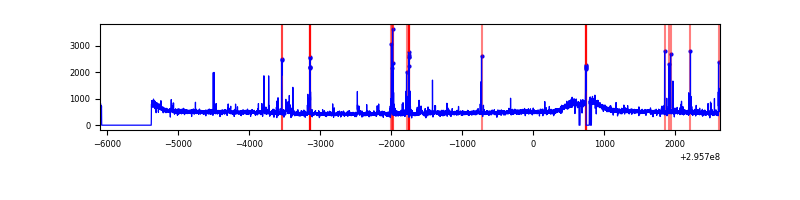

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

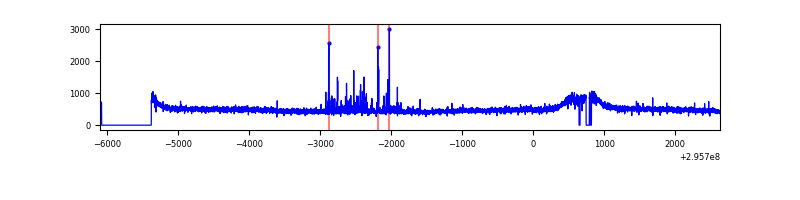

| A | 8733 | 7959 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8733 | 7960 | 28 | 28 | 0.32% | 0.35% |  |

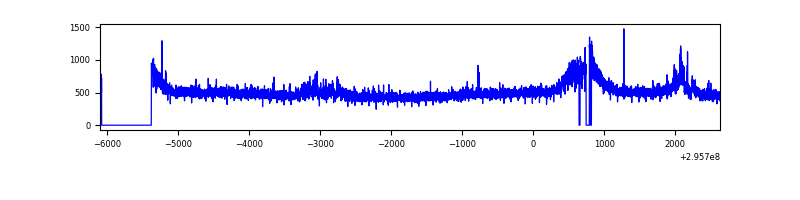

| C | 8734 | 7960 | 0 | 0 | 0.00% | 0.00% |  |

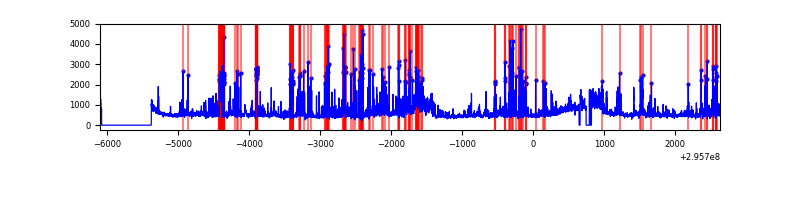

| D | 8734 | 7961 | 203 | 203 | 2.32% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 86179 | 409.43 | 1011 | 984 | 208.1 |
| A | 0 | 226 | 8713 | 37.14 | 1011 | 984 | 208.1 |
| A | 3 | 137 | 8223 | 34.79 | 1011 | 984 | 208.1 |
| B | 3 | 112 | 100937 | 513.74 | 996 | 966 | 194.6 |
| B | 7 | 220 | 87272 | 443.52 | 996 | 966 | 194.6 |
| B | 12 | 111 | 24050 | 118.63 | 996 | 966 | 194.6 |
| C | 14 | 238 | 148634 | 653.37 | 959 | 962 | 226.0 |
| C | 3 | 233 | 130591 | 573.54 | 959 | 962 | 226.0 |
| C | 7 | 247 | 71452 | 311.88 | 959 | 962 | 226.0 |
| D | 1 | 52 | 1145621 | 4781.1 | 974 | 943 | 239.4 |
| D | 7 | 238 | 433685 | 1807.48 | 974 | 943 | 239.4 |
| D | 9 | 68 | 60147 | 247.28 | 974 | 943 | 239.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

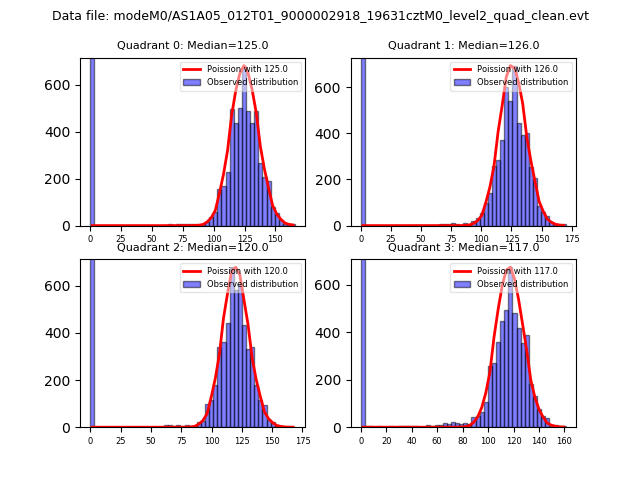

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

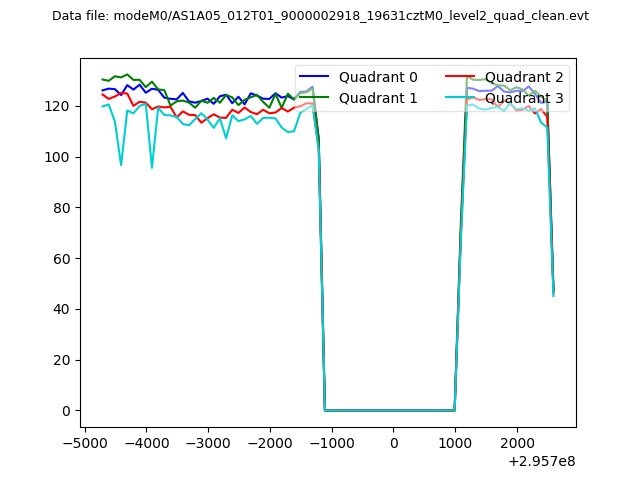

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

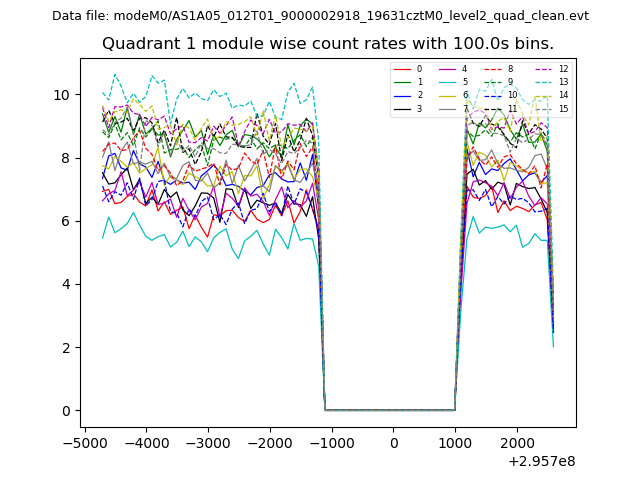

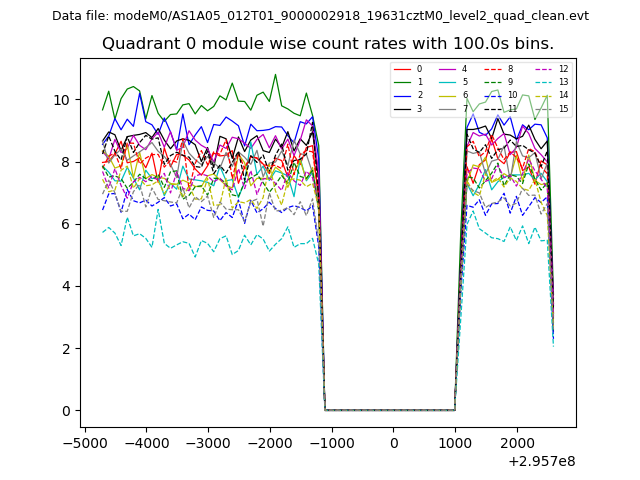

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

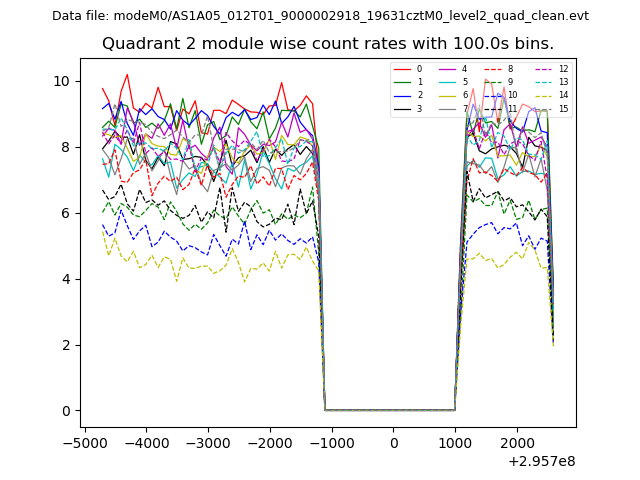

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

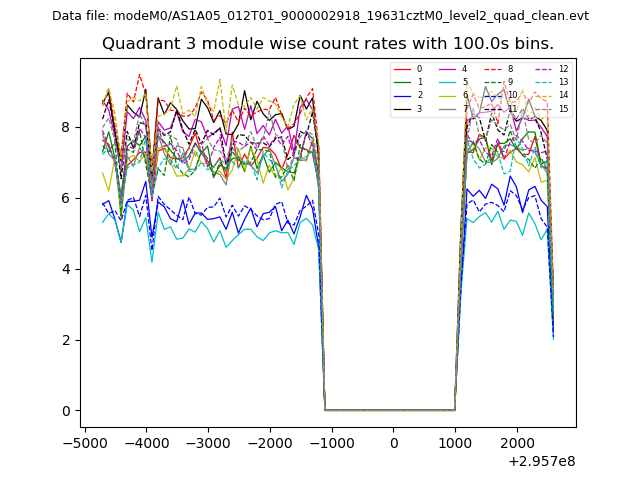

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

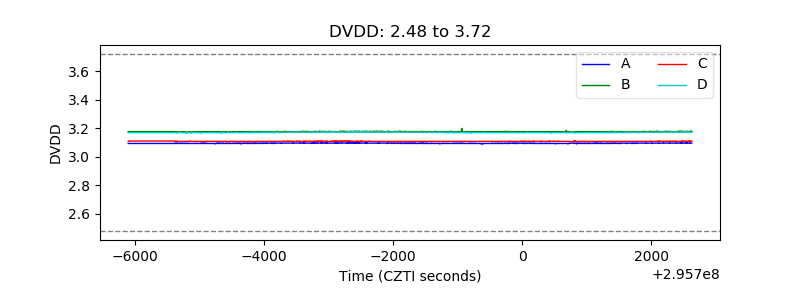

| D_VDD |  |

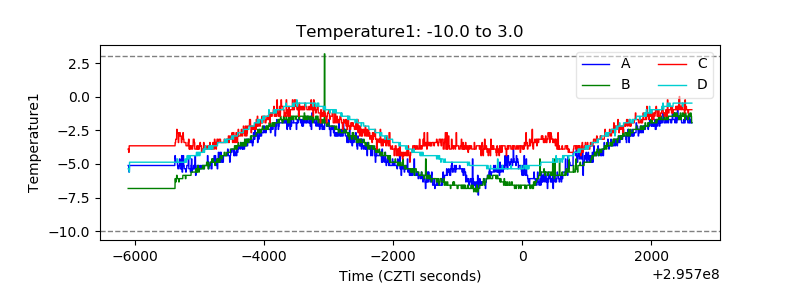

| Temperature 1 |  |

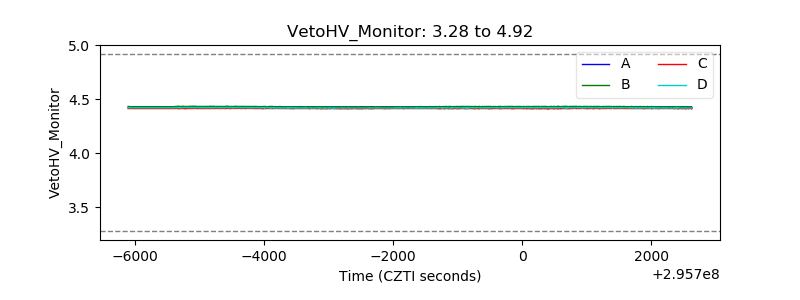

| Veto HV Monitor |  |

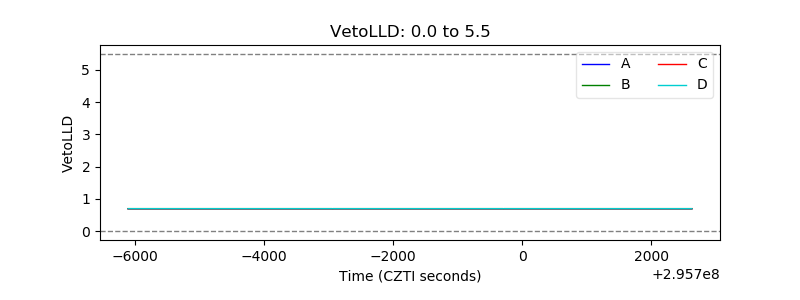

| Veto LLD |  |

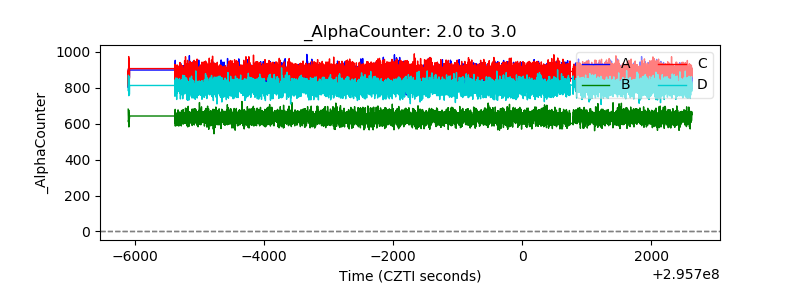

| Alpha Counter |  |

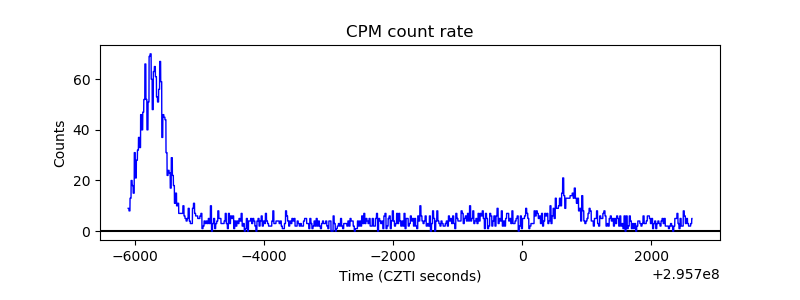

| _CPM_Rate |  |

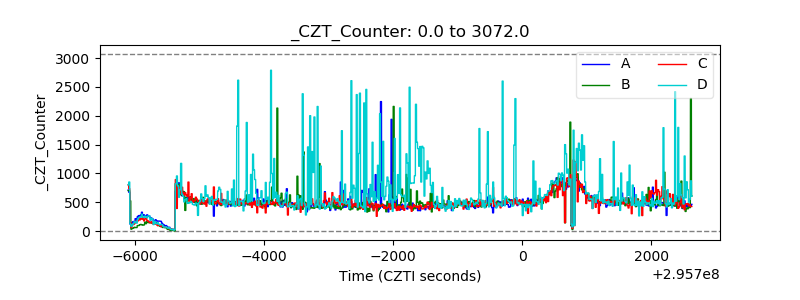

| CZT Counter |  |

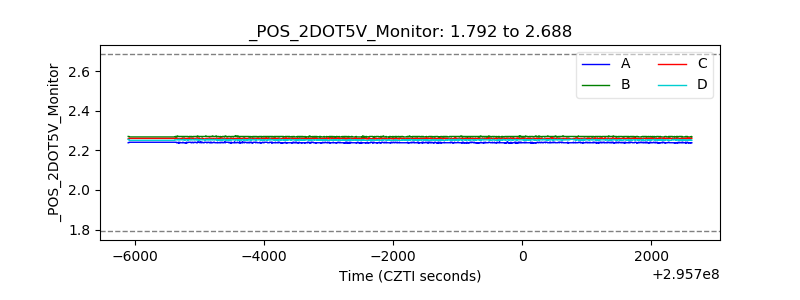

| +2.5 Volts monitor |  |

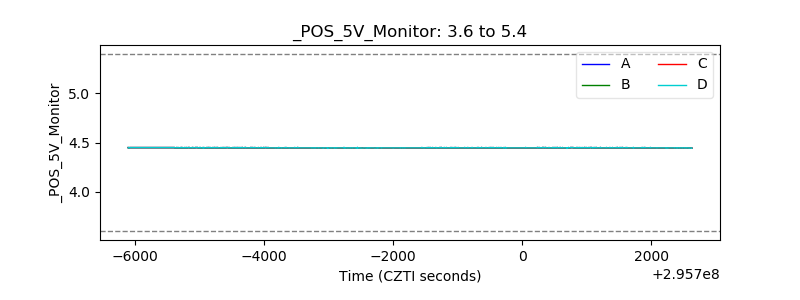

| +5 Volts monitor |  |

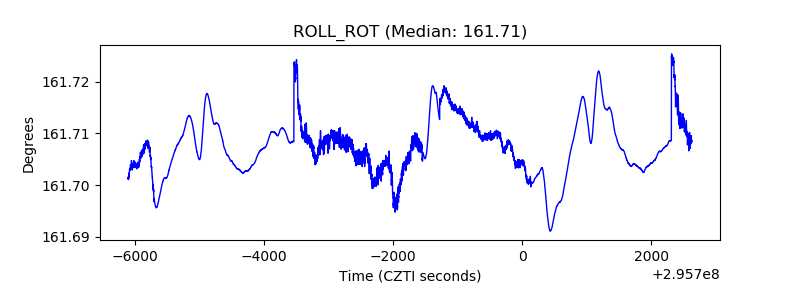

| _ROLL_ROT |  |

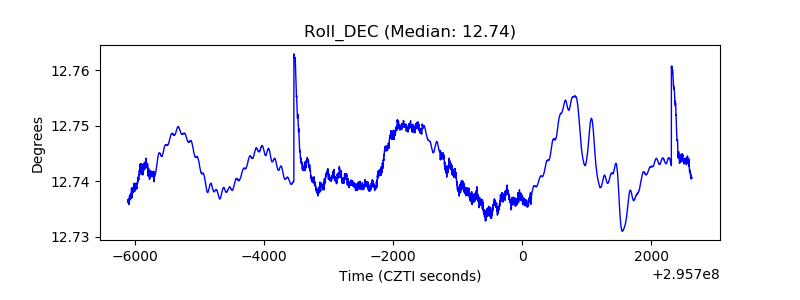

| _Roll_DEC |  |

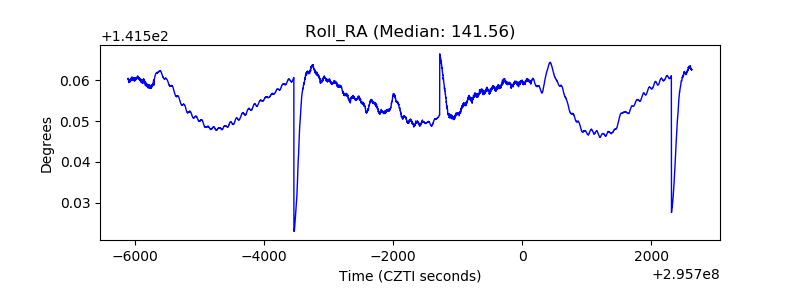

| _Roll_RA |  |

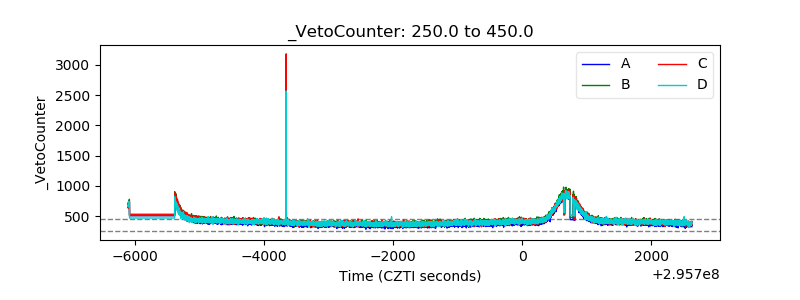

| Veto Counter |  |
