| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T08_9000002922_19643cztM0_level2.evt | modeM0/AS1A05_101T08_9000002922_19643cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,577,600 | 98,441,280 |
| Size | 577.5 MB | 93.9 MB |
| Events in quadrant A | 3,191,373 | 657,345 |
| Events in quadrant B | 3,587,255 | 661,448 |
| Events in quadrant C | 3,293,342 | 642,350 |
| Events in quadrant D | 7,834,798 | 573,276 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13350 | 2 |
| B | 0 | 14622 | 2 |
| C | 0 | 13570 | 2 |
| D | 0 | 27648 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6397 | 89 | 1.391277% |
| B | 6397 | 147 | 2.297952% |
| C | 6397 | 117 | 1.828982% |
| D | 6397 | 1279 | 19.993747% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

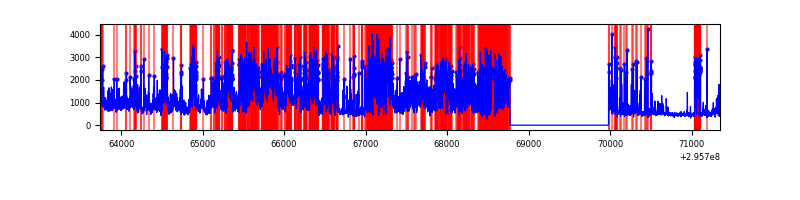

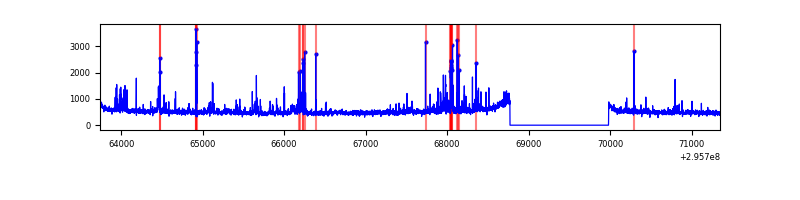

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7607 | 6397 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7607 | 6397 | 29 | 29 | 0.38% | 0.45% |  |
| C | 7607 | 6397 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7607 | 6397 | 1125 | 1125 | 14.79% | 17.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7305 | 39.0 | 828 | 810 | 166.5 |
| A | 13 | 254 | 7013 | 37.25 | 828 | 810 | 166.5 |
| A | 3 | 137 | 6192 | 32.32 | 828 | 810 | 166.5 |
| B | 3 | 112 | 274042 | 1789.07 | 815 | 795 | 152.7 |
| B | 7 | 220 | 88276 | 572.78 | 815 | 795 | 152.7 |
| B | 0 | 198 | 17931 | 112.19 | 815 | 795 | 152.7 |
| C | 14 | 238 | 125542 | 667.2 | 807 | 816 | 186.9 |
| C | 3 | 233 | 20493 | 105.26 | 807 | 816 | 186.9 |
| C | 13 | 61 | 5640 | 25.81 | 807 | 816 | 186.9 |
| D | 7 | 238 | 2021842 | 11176.42 | 753 | 734 | 180.8 |
| D | 12 | 218 | 1703250 | 9414.66 | 753 | 734 | 180.8 |
| D | 1 | 52 | 1185698 | 6552.67 | 753 | 734 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

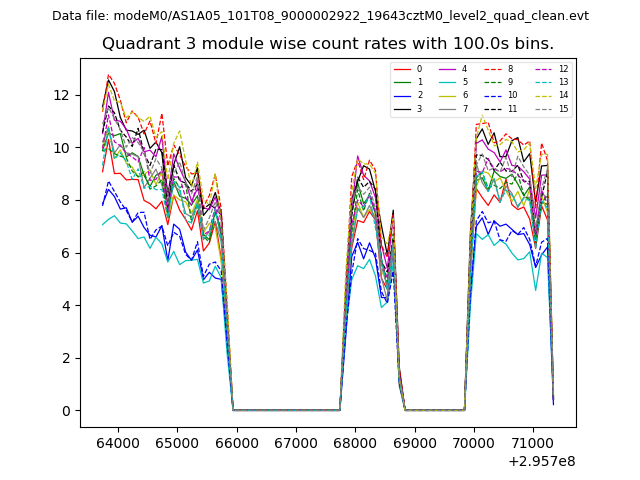

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

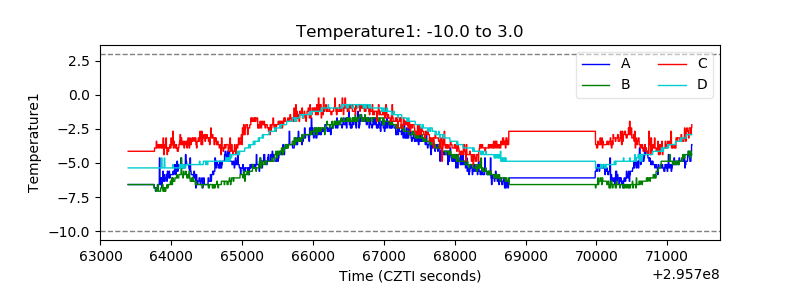

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

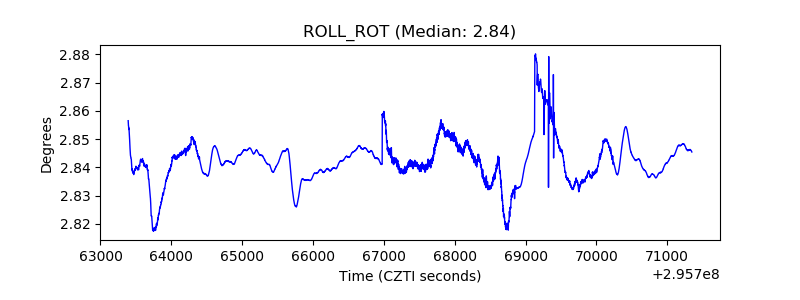

| _ROLL_ROT |  |

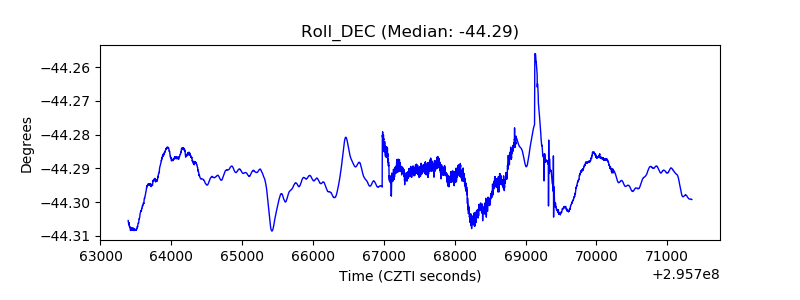

| _Roll_DEC |  |

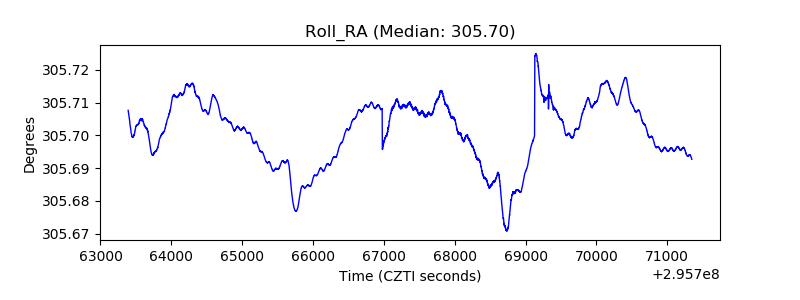

| _Roll_RA |  |

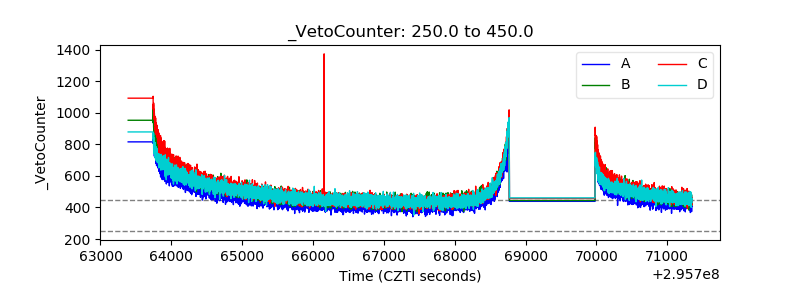

| Veto Counter |  |
