| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_005T01_9000002928_19656cztM0_level2.evt | modeM0/AS1T03_005T01_9000002928_19656cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,293,440 | 74,615,040 |
| Size | 408.5 MB | 71.2 MB |
| Events in quadrant A | 3,047,791 | 472,224 |
| Events in quadrant B | 3,275,808 | 484,062 |
| Events in quadrant C | 3,079,106 | 450,979 |
| Events in quadrant D | 3,163,636 | 436,274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12442 | 1 |
| B | 0 | 13141 | 1 |
| C | 0 | 12552 | 1 |
| D | 0 | 13088 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5950 | 63 | 1.058824% |
| B | 5950 | 86 | 1.445378% |
| C | 5950 | 81 | 1.361345% |
| D | 5950 | 116 | 1.949580% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7280 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7280 | 5950 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7280 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7280 | 5950 | 74 | 74 | 1.02% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6894 | 38.86 | 791 | 777 | 157.4 |
| A | 13 | 254 | 6110 | 33.88 | 791 | 777 | 157.4 |
| A | 3 | 137 | 5823 | 32.05 | 791 | 777 | 157.4 |
| B | 3 | 112 | 85552 | 567.77 | 794 | 778 | 149.3 |
| B | 0 | 198 | 43260 | 284.52 | 794 | 778 | 149.3 |
| B | 12 | 111 | 17338 | 110.91 | 794 | 778 | 149.3 |
| C | 14 | 238 | 121132 | 691.89 | 750 | 757 | 174.0 |
| C | 3 | 233 | 27828 | 155.6 | 750 | 757 | 174.0 |
| C | 9 | 221 | 6683 | 34.06 | 750 | 757 | 174.0 |
| D | 1 | 52 | 171350 | 940.69 | 751 | 731 | 181.4 |
| D | 2 | 120 | 63736 | 347.37 | 751 | 731 | 181.4 |
| D | 10 | 199 | 56273 | 306.23 | 751 | 731 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

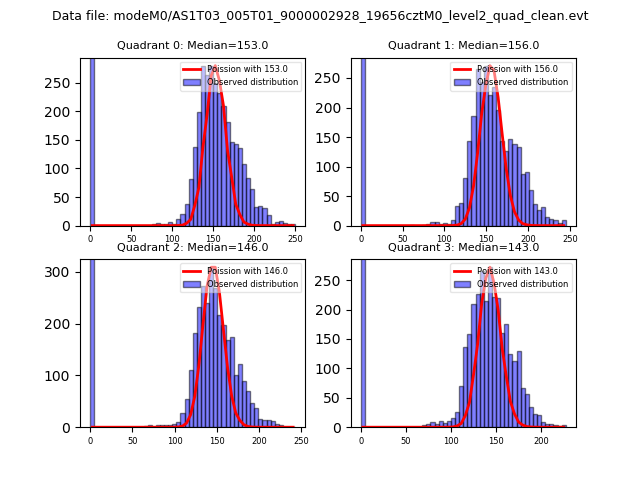

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

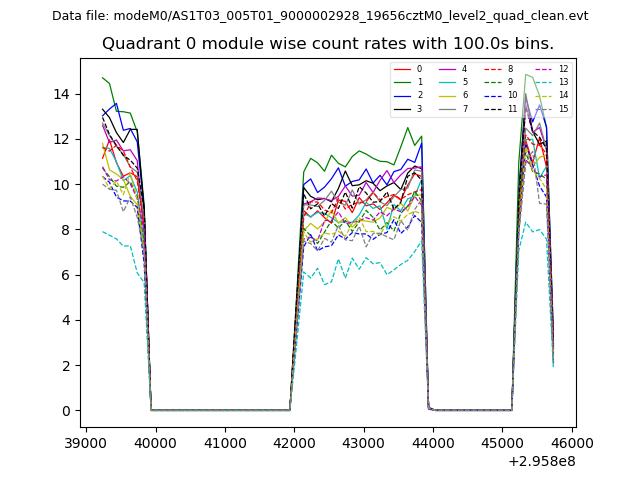

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

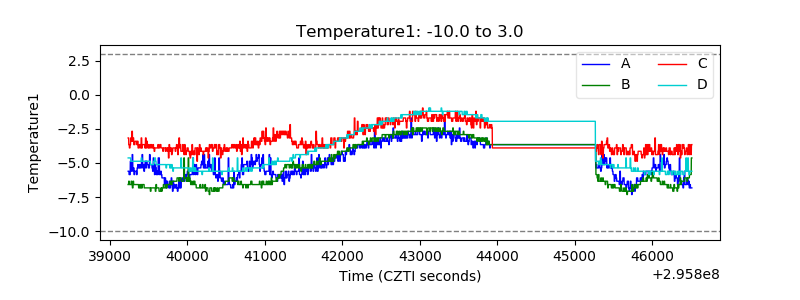

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
