| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_005T01_9000002928_19670cztM0_level2.evt | modeM0/AS1T03_005T01_9000002928_19670cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,650,880 | 89,277,120 |
| Size | 429.8 MB | 85.1 MB |
| Events in quadrant A | 3,014,281 | 584,314 |
| Events in quadrant B | 3,134,684 | 602,542 |
| Events in quadrant C | 3,267,236 | 562,122 |
| Events in quadrant D | 3,822,852 | 534,121 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12680 | 2 |
| B | 0 | 13023 | 2 |
| C | 0 | 13377 | 2 |
| D | 0 | 15466 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6021 | 26 | 0.431822% |
| B | 6021 | 53 | 0.880252% |
| C | 6022 | 58 | 0.963135% |
| D | 6022 | 121 | 2.009299% |

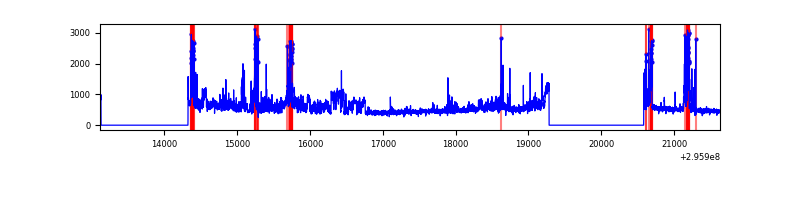

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8516 | 6023 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8516 | 6022 | 10 | 10 | 0.12% | 0.17% |  |
| C | 8517 | 6023 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8517 | 6024 | 86 | 86 | 1.01% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 42422 | 271.71 | 767 | 753 | 153.4 |
| A | 11 | 29 | 14661 | 90.69 | 767 | 753 | 153.4 |
| A | 4 | 2 | 7050 | 41.06 | 767 | 753 | 153.4 |
| B | 0 | 230 | 34767 | 232.97 | 770 | 751 | 146.0 |
| B | 0 | 197 | 30995 | 207.14 | 770 | 751 | 146.0 |
| B | 7 | 220 | 29833 | 199.18 | 770 | 751 | 146.0 |
| C | 3 | 233 | 255391 | 1487.51 | 736 | 743 | 171.2 |
| C | 14 | 238 | 116627 | 676.93 | 736 | 743 | 171.2 |
| C | 0 | 207 | 17770 | 99.46 | 736 | 743 | 171.2 |
| D | 1 | 20 | 619624 | 3515.36 | 727 | 705 | 176.1 |
| D | 12 | 218 | 334300 | 1894.77 | 727 | 705 | 176.1 |
| D | 10 | 199 | 63223 | 355.09 | 727 | 705 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

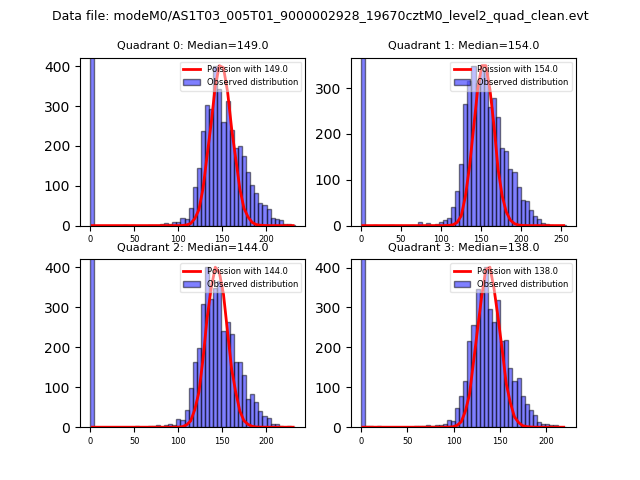

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

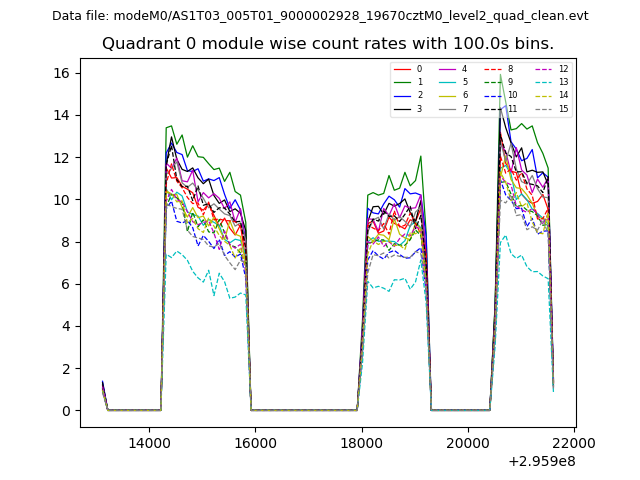

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

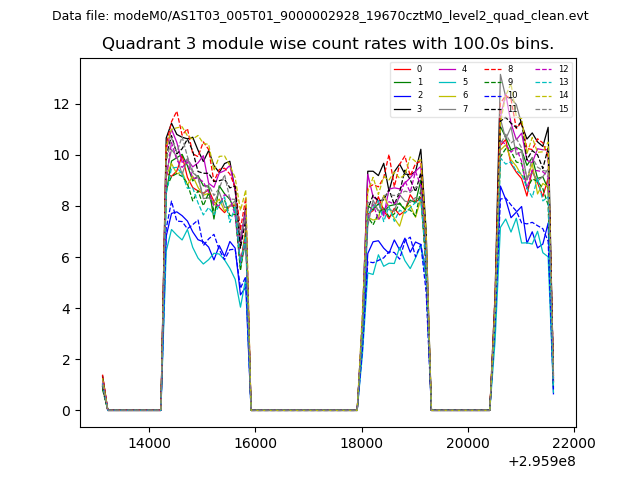

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

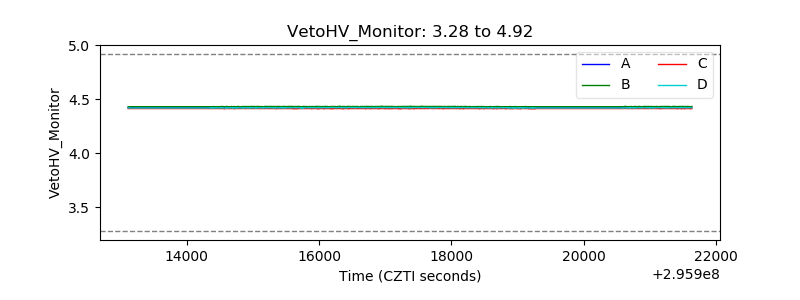

| Veto HV Monitor |  |
| Veto LLD |  |

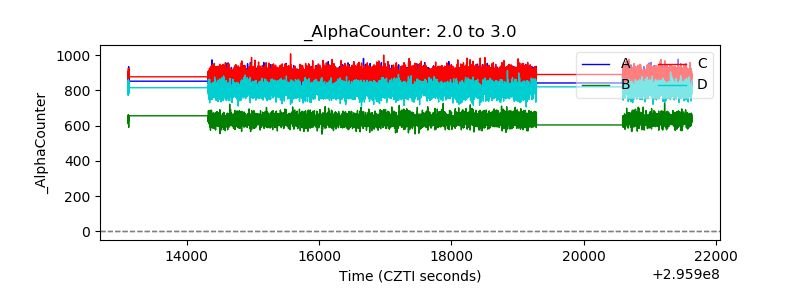

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

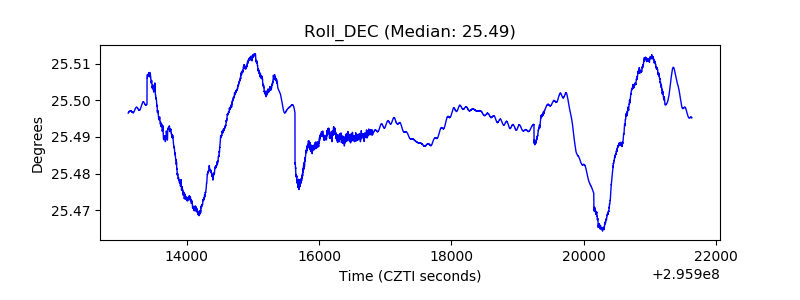

| _Roll_DEC |  |
| _Roll_RA |  |

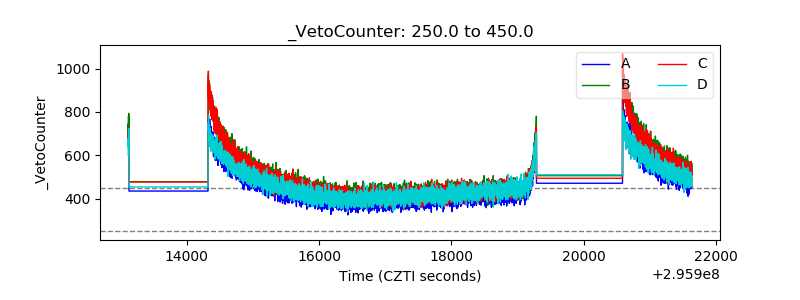

| Veto Counter |  |
