| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_037T01_9000002930_19673cztM0_level2.evt | modeM0/AS1T03_037T01_9000002930_19673cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,079,680 | 111,643,200 |
| Size | 469.3 MB | 106.5 MB |
| Events in quadrant A | 3,337,727 | 737,284 |
| Events in quadrant B | 3,436,595 | 753,099 |
| Events in quadrant C | 3,414,471 | 724,497 |
| Events in quadrant D | 4,258,222 | 698,454 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14159 | 2 |
| B | 0 | 14337 | 2 |
| C | 0 | 14023 | 3 |
| D | 0 | 16999 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6713 | 93 | 1.385372% |
| B | 6713 | 61 | 0.908685% |
| C | 6712 | 111 | 1.653754% |
| D | 6712 | 271 | 4.037545% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

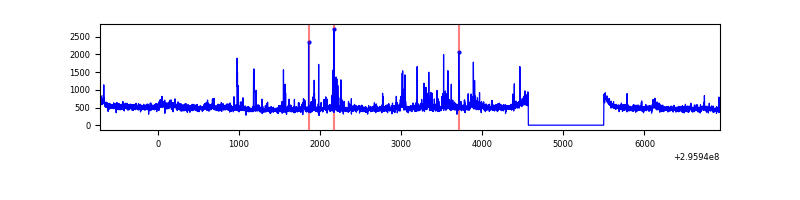

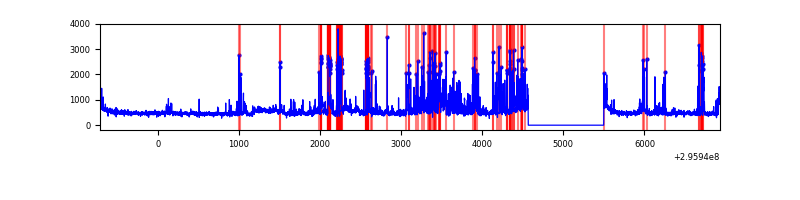

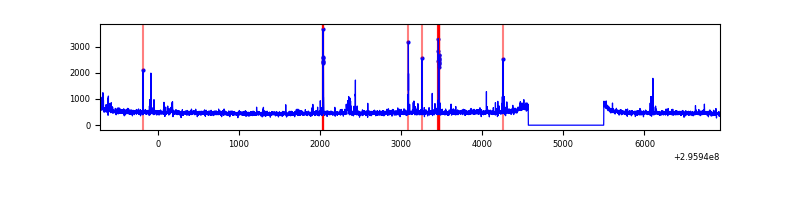

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7643 | 6714 | 22 | 22 | 0.29% | 0.33% |  |
| B | 7643 | 6714 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7642 | 6712 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7642 | 6712 | 175 | 175 | 2.29% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 130586 | 789.83 | 815 | 798 | 164.3 |
| A | 11 | 29 | 50314 | 301.33 | 815 | 798 | 164.3 |
| A | 0 | 23 | 8448 | 46.55 | 815 | 798 | 164.3 |
| B | 3 | 112 | 100099 | 655.19 | 814 | 794 | 151.6 |
| B | 0 | 198 | 69574 | 453.8 | 814 | 794 | 151.6 |
| B | 0 | 244 | 23133 | 147.39 | 814 | 794 | 151.6 |
| C | 14 | 238 | 125473 | 675.61 | 796 | 800 | 184.5 |
| C | 3 | 233 | 124773 | 671.82 | 796 | 800 | 184.5 |
| C | 9 | 221 | 50894 | 271.46 | 796 | 800 | 184.5 |
| D | 1 | 52 | 1034423 | 5408.87 | 793 | 771 | 191.1 |
| D | 1 | 20 | 125406 | 652.19 | 793 | 771 | 191.1 |
| D | 12 | 218 | 65097 | 336.6 | 793 | 771 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

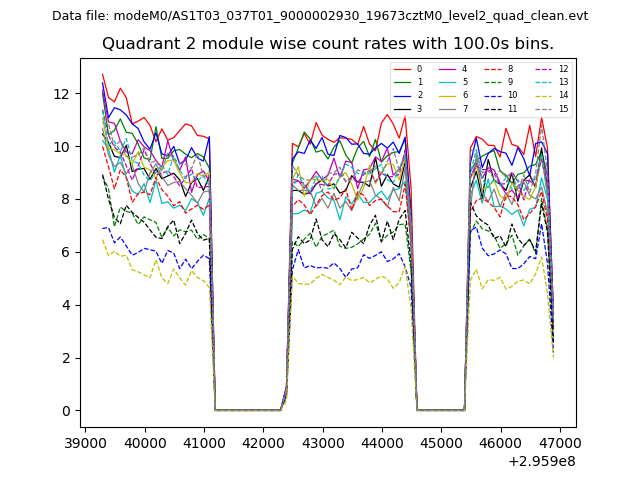

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

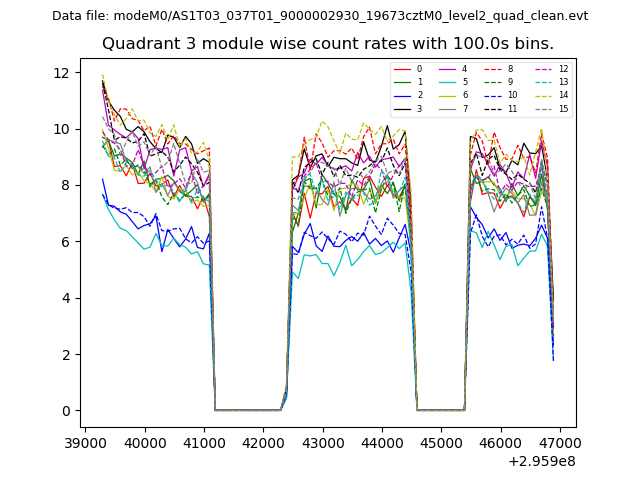

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

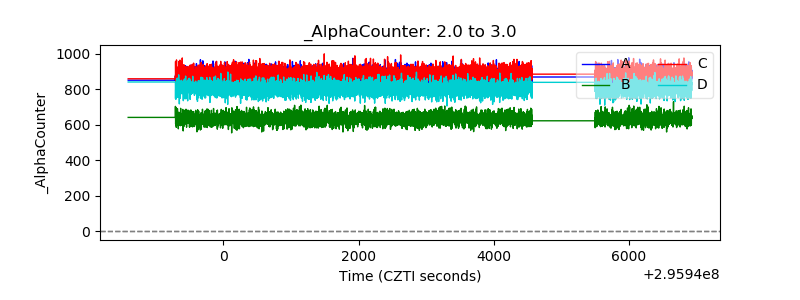

| Alpha Counter |  |

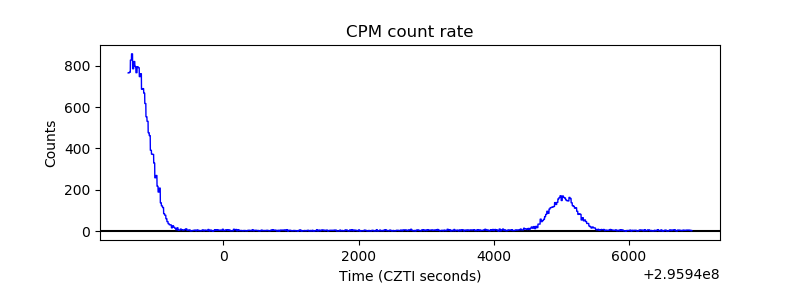

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

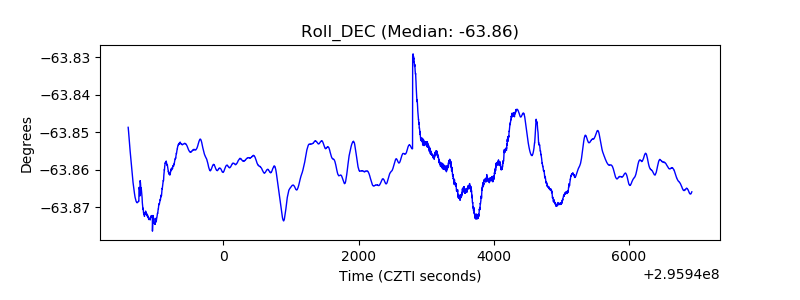

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
