| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000002944_19709cztM0_level2.evt | modeM0/AS1A05_013T01_9000002944_19709cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,630,720 | 95,330,880 |
| Size | 481.3 MB | 90.9 MB |
| Events in quadrant A | 3,199,206 | 624,376 |
| Events in quadrant B | 3,403,649 | 629,765 |
| Events in quadrant C | 4,030,859 | 584,797 |
| Events in quadrant D | 4,186,395 | 572,895 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14005 | 2 |
| B | 0 | 14507 | 3 |
| C | 0 | 16500 | 2 |
| D | 0 | 16984 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6817 | 32 | 0.469415% |
| B | 6816 | 44 | 0.645540% |
| C | 6816 | 182 | 2.670188% |
| D | 6816 | 169 | 2.479460% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7797 | 6817 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7796 | 6816 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7796 | 6816 | 62 | 62 | 0.80% | 0.91% |  |
| D | 7796 | 6817 | 155 | 155 | 1.99% | 2.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8233 | 44.15 | 830 | 814 | 168.0 |
| A | 0 | 226 | 7245 | 38.27 | 830 | 814 | 168.0 |
| A | 3 | 137 | 6454 | 33.57 | 830 | 814 | 168.0 |
| B | 4 | 216 | 47158 | 290.1 | 827 | 806 | 159.8 |
| B | 4 | 171 | 33844 | 206.77 | 827 | 806 | 159.8 |
| B | 7 | 220 | 28885 | 175.73 | 827 | 806 | 159.8 |
| C | 3 | 233 | 721112 | 3957.25 | 778 | 783 | 182.0 |
| C | 7 | 247 | 130804 | 714.29 | 778 | 783 | 182.0 |
| C | 14 | 238 | 121804 | 664.85 | 778 | 783 | 182.0 |
| D | 1 | 52 | 741797 | 3862.92 | 789 | 766 | 191.8 |
| D | 1 | 20 | 149700 | 776.38 | 789 | 766 | 191.8 |
| D | 10 | 199 | 134454 | 696.9 | 789 | 766 | 191.8 |

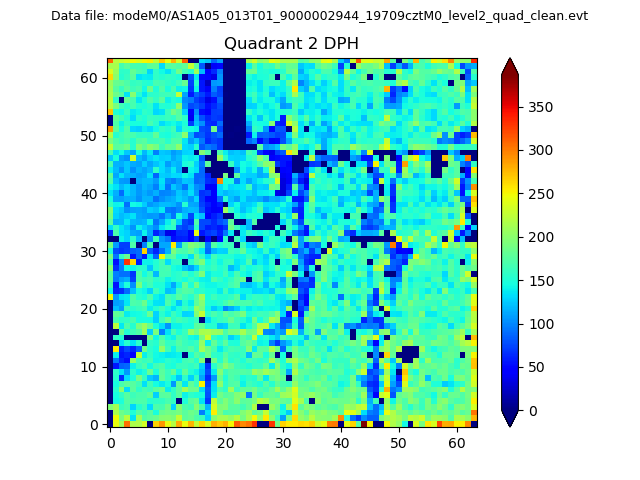

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

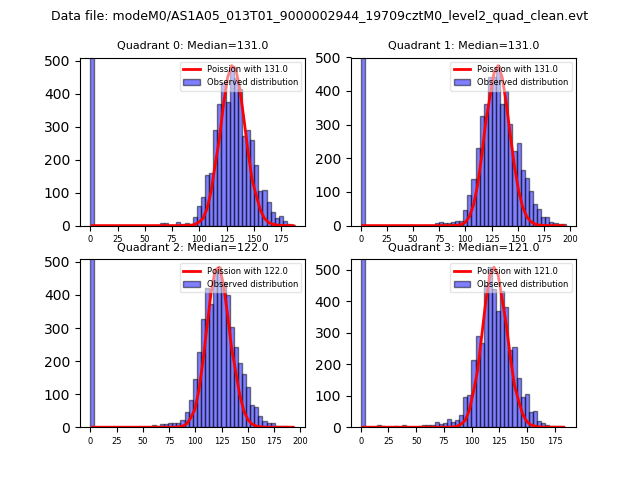

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

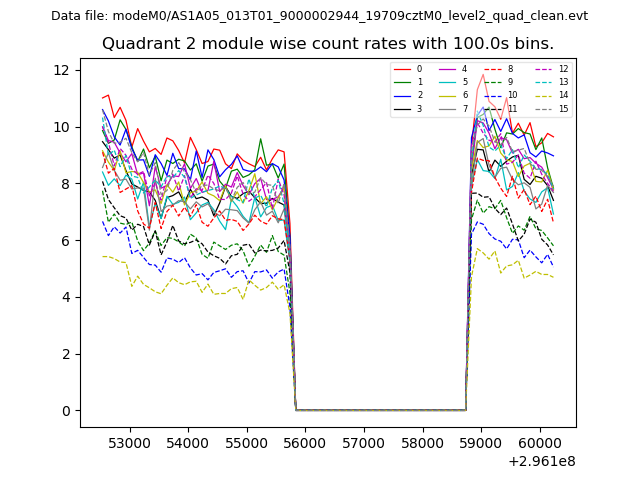

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

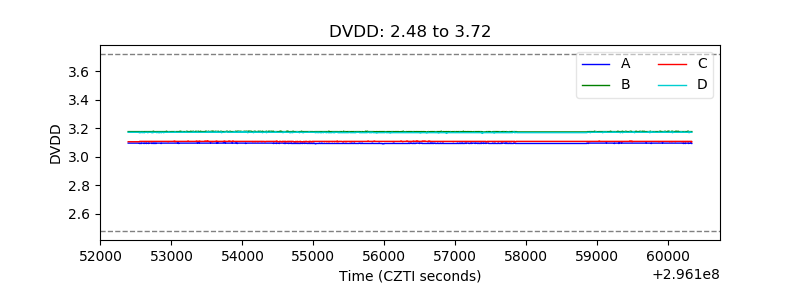

| D_VDD |  |

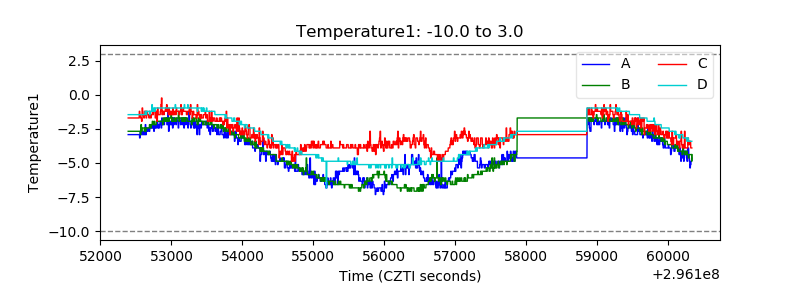

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

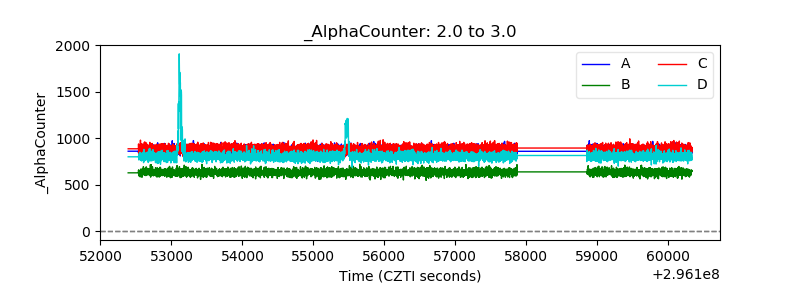

| Alpha Counter |  |
| _CPM_Rate |  |

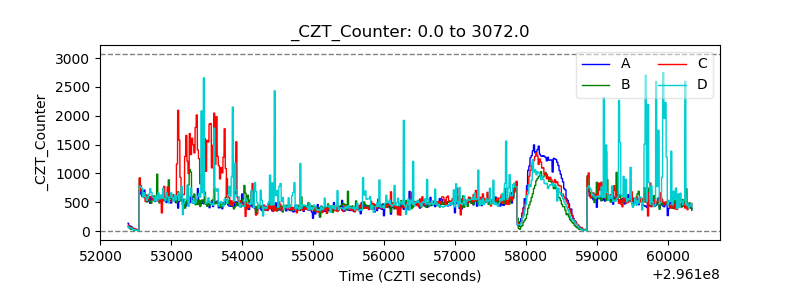

| CZT Counter |  |
| +2.5 Volts monitor |  |

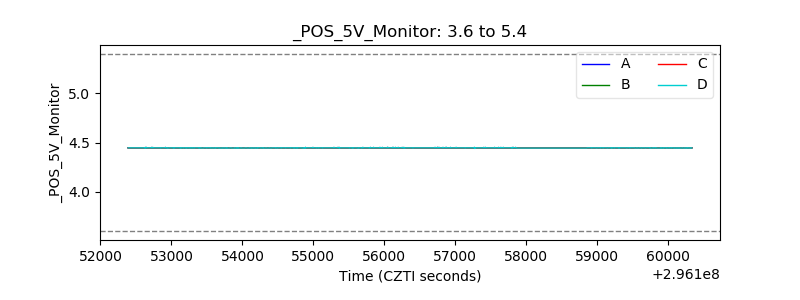

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
