| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000002944_19720cztM0_level2.evt | modeM0/AS1A05_013T01_9000002944_19720cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,590,080 | 90,898,560 |
| Size | 537.5 MB | 86.7 MB |
| Events in quadrant A | 3,552,537 | 566,443 |
| Events in quadrant B | 3,719,879 | 574,761 |
| Events in quadrant C | 5,202,465 | 544,519 |
| Events in quadrant D | 4,075,101 | 535,436 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15607 | 3 |
| B | 0 | 15880 | 2 |
| C | 0 | 20594 | 2 |
| D | 0 | 17132 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7636 | 124 | 1.623887% |
| B | 7637 | 149 | 1.951028% |
| C | 7637 | 308 | 4.032997% |
| D | 7637 | 153 | 2.003404% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7946 | 7637 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7947 | 7638 | 11 | 11 | 0.14% | 0.14% |  |
| C | 7947 | 7638 | 39 | 39 | 0.49% | 0.51% |  |
| D | 7947 | 7638 | 45 | 45 | 0.57% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7773 | 36.72 | 921 | 900 | 187.2 |
| A | 3 | 137 | 7617 | 35.89 | 921 | 900 | 187.2 |
| A | 13 | 254 | 7536 | 35.46 | 921 | 900 | 187.2 |
| B | 3 | 64 | 37917 | 210.34 | 917 | 892 | 176.0 |
| B | 12 | 111 | 21482 | 116.97 | 917 | 892 | 176.0 |
| B | 7 | 220 | 20546 | 111.65 | 917 | 892 | 176.0 |
| C | 3 | 233 | 1579131 | 7677.2 | 876 | 878 | 205.6 |
| C | 14 | 238 | 135896 | 656.78 | 876 | 878 | 205.6 |
| C | 7 | 247 | 50627 | 242.0 | 876 | 878 | 205.6 |
| D | 1 | 52 | 456017 | 2090.63 | 895 | 867 | 217.7 |
| D | 9 | 1 | 64850 | 293.89 | 895 | 867 | 217.7 |
| D | 7 | 96 | 36216 | 162.37 | 895 | 867 | 217.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

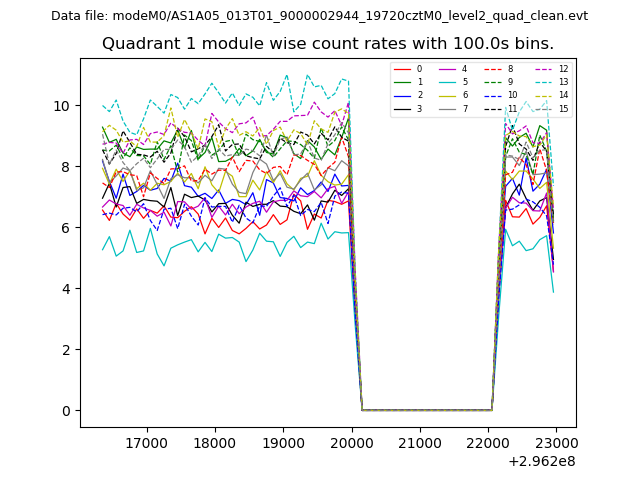

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

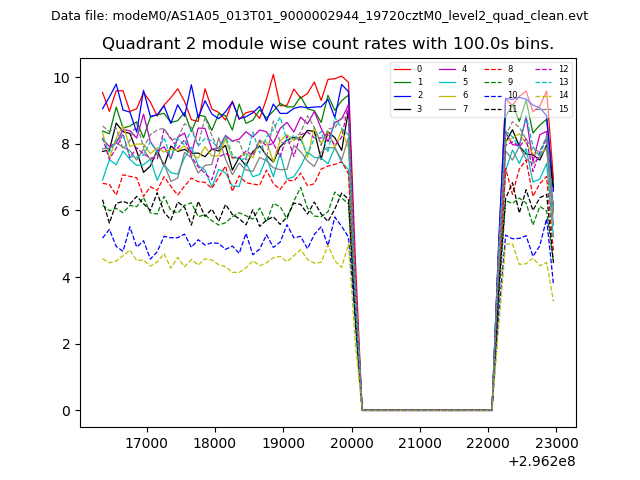

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

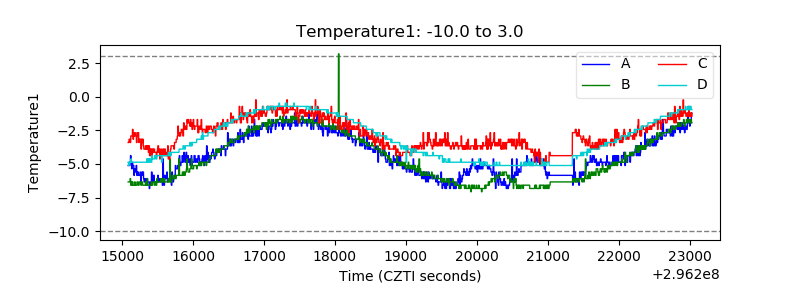

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

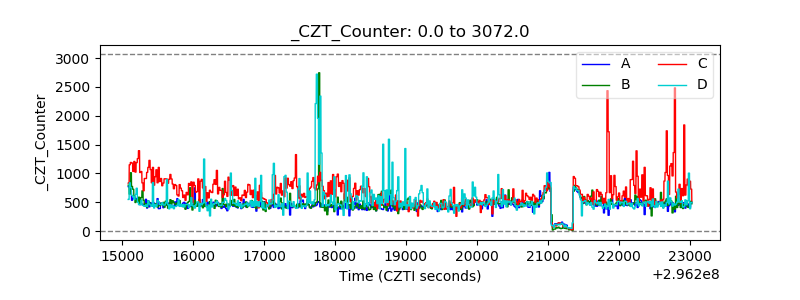

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

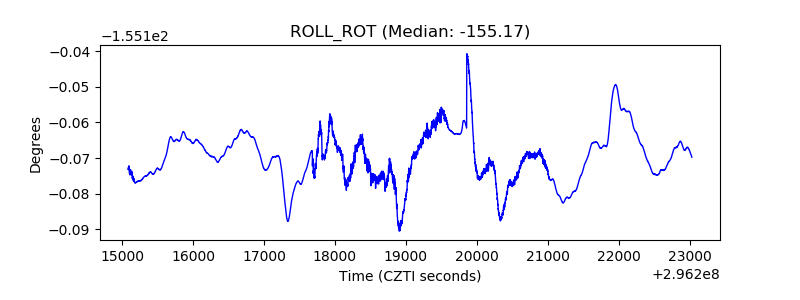

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

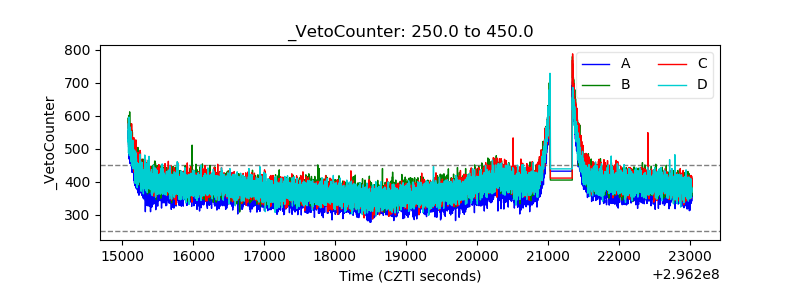

| Veto Counter |  |
