| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000002944_19723cztM0_level2.evt | modeM0/AS1A05_013T01_9000002944_19723cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,390,400 | 94,150,080 |
| Size | 431.4 MB | 89.8 MB |
| Events in quadrant A | 3,109,274 | 614,297 |
| Events in quadrant B | 3,386,714 | 617,525 |
| Events in quadrant C | 3,494,628 | 579,622 |
| Events in quadrant D | 3,260,289 | 578,510 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13578 | 1 |
| B | 0 | 14468 | 1 |
| C | 0 | 14373 | 1 |
| D | 0 | 14178 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6618 | 58 | 0.876398% |
| B | 6618 | 82 | 1.239045% |
| C | 6618 | 75 | 1.133273% |
| D | 6618 | 84 | 1.269266% |

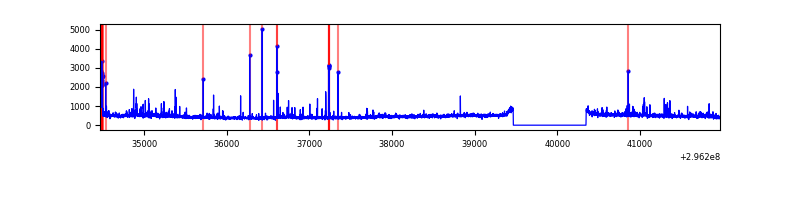

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6618 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7498 | 6618 | 21 | 21 | 0.28% | 0.32% |  |
| C | 7498 | 6618 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7498 | 6618 | 32 | 32 | 0.43% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 13694 | 78.99 | 797 | 782 | 163.5 |
| A | 6 | 16 | 12909 | 74.19 | 797 | 782 | 163.5 |
| A | 10 | 253 | 8691 | 48.39 | 797 | 782 | 163.5 |
| B | 7 | 220 | 171320 | 1108.66 | 790 | 771 | 153.8 |
| B | 4 | 216 | 46189 | 295.24 | 790 | 771 | 153.8 |
| B | 0 | 190 | 28800 | 182.2 | 790 | 771 | 153.8 |
| C | 3 | 233 | 449306 | 2547.87 | 748 | 751 | 176.1 |
| C | 14 | 238 | 118387 | 668.19 | 748 | 751 | 176.1 |
| C | 7 | 247 | 9632 | 50.45 | 748 | 751 | 176.1 |
| D | 1 | 52 | 112233 | 596.19 | 765 | 743 | 187.0 |
| D | 2 | 16 | 96128 | 510.07 | 765 | 743 | 187.0 |
| D | 12 | 218 | 52424 | 276.36 | 765 | 743 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

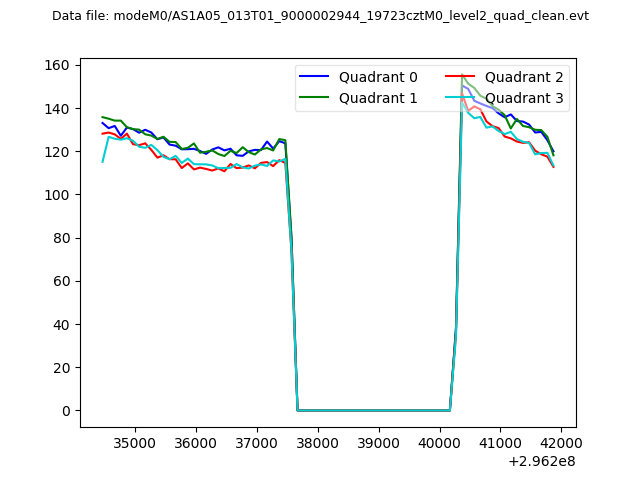

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

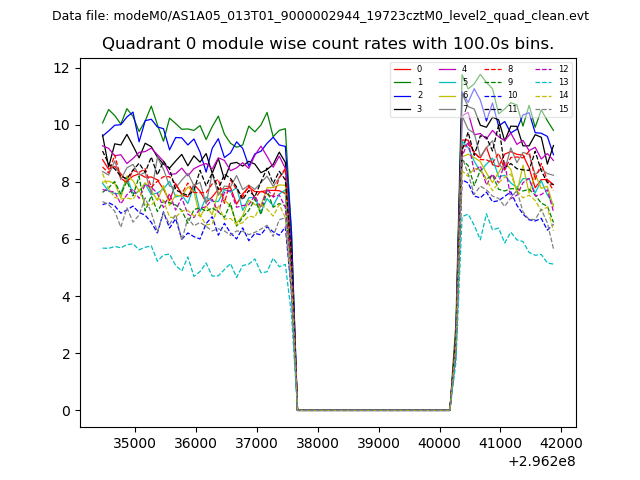

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

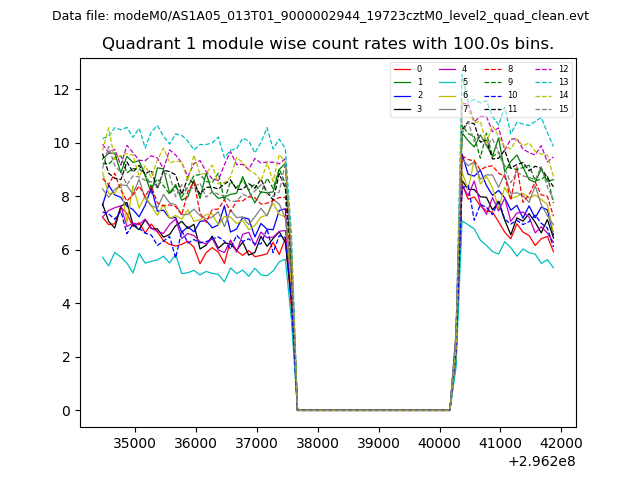

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

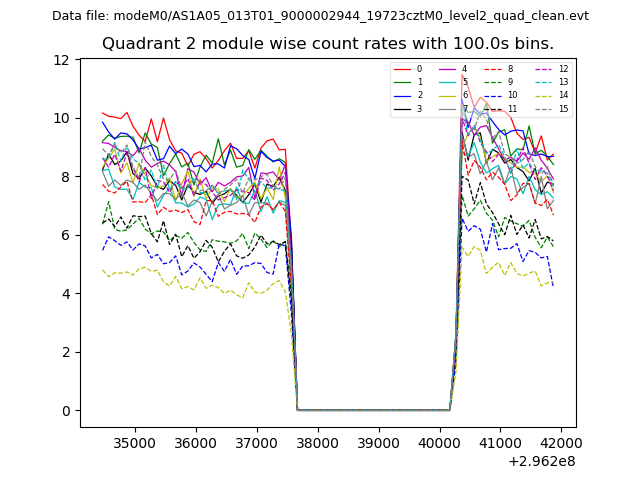

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

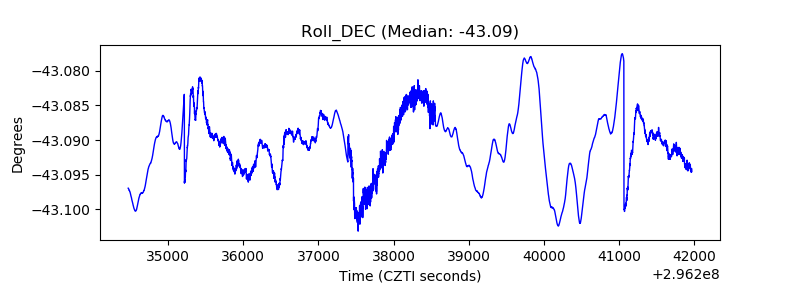

| _Roll_DEC |  |

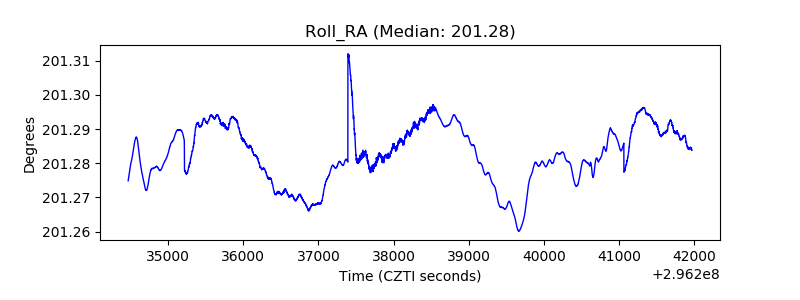

| _Roll_RA |  |
| Veto Counter |  |
