| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000002944_19731cztM0_level2.evt | modeM0/AS1A05_013T01_9000002944_19731cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,308,160 | 76,466,880 |
| Size | 498.1 MB | 72.9 MB |
| Events in quadrant A | 3,265,722 | 474,851 |
| Events in quadrant B | 3,542,818 | 481,885 |
| Events in quadrant C | 4,435,647 | 453,717 |
| Events in quadrant D | 4,118,378 | 436,699 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 2 |
| B | 0 | 14632 | 2 |
| C | 0 | 17350 | 2 |
| D | 0 | 16800 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6716 | 32 | 0.476474% |
| B | 6716 | 93 | 1.384753% |
| C | 6716 | 313 | 4.660512% |
| D | 6715 | 255 | 3.797468% |

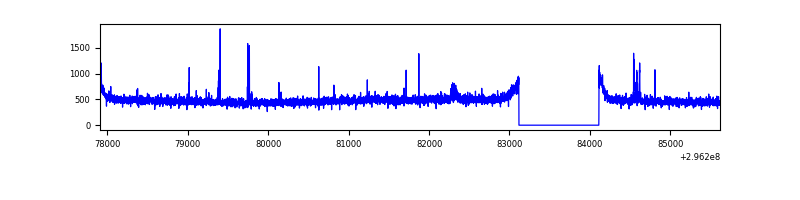

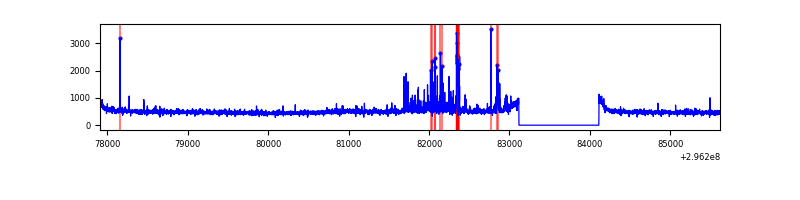

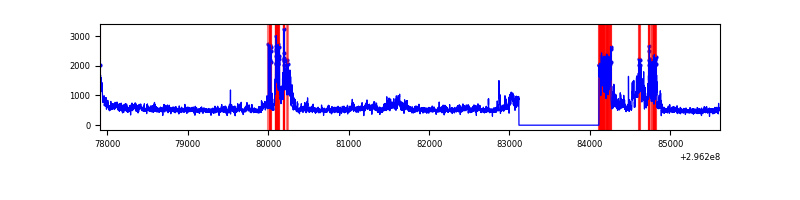

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7711 | 6717 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7711 | 6717 | 28 | 28 | 0.36% | 0.42% |  |
| C | 7711 | 6717 | 105 | 105 | 1.36% | 1.56% |  |
| D | 7710 | 6716 | 179 | 179 | 2.32% | 2.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 45043 | 265.16 | 830 | 813 | 166.8 |
| A | 0 | 23 | 14046 | 79.33 | 830 | 813 | 166.8 |
| A | 0 | 226 | 7816 | 41.98 | 830 | 813 | 166.8 |
| B | 7 | 220 | 199951 | 1271.18 | 833 | 814 | 156.7 |
| B | 4 | 171 | 34221 | 213.25 | 833 | 814 | 156.7 |
| B | 12 | 111 | 18648 | 113.84 | 833 | 814 | 156.7 |
| C | 3 | 233 | 1223014 | 6649.64 | 791 | 796 | 183.8 |
| C | 14 | 238 | 124123 | 670.98 | 791 | 796 | 183.8 |
| C | 13 | 61 | 5619 | 26.24 | 791 | 796 | 183.8 |
| D | 1 | 52 | 943962 | 4843.57 | 799 | 777 | 194.7 |
| D | 12 | 218 | 82150 | 417.88 | 799 | 777 | 194.7 |
| D | 7 | 238 | 54554 | 276.16 | 799 | 777 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

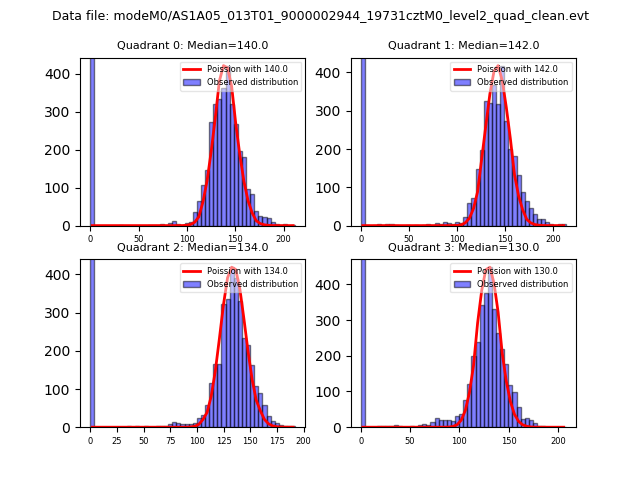

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

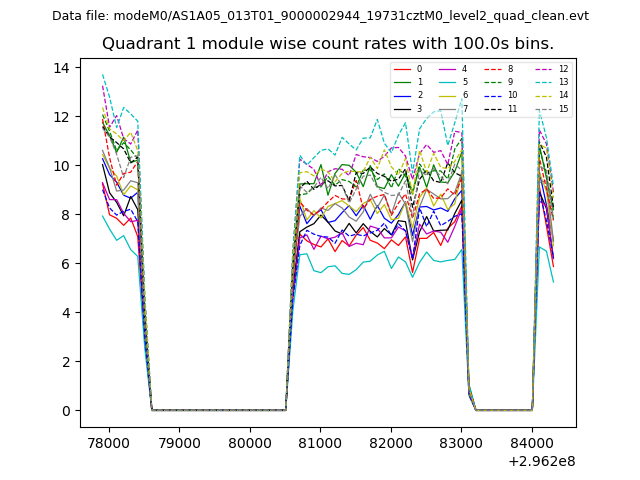

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

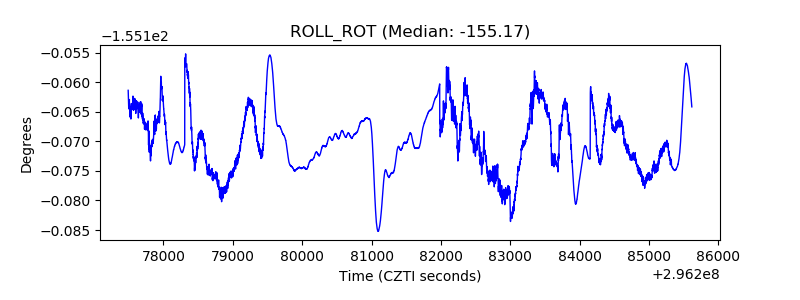

| _ROLL_ROT |  |

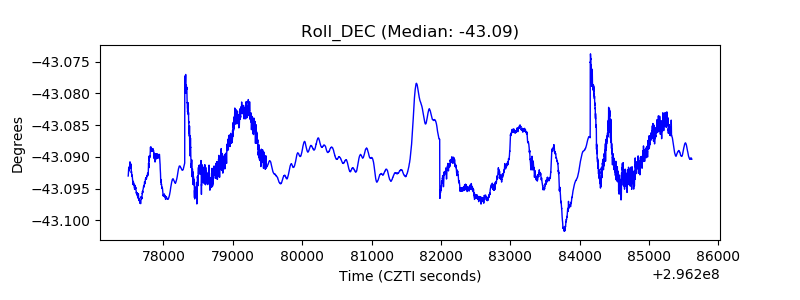

| _Roll_DEC |  |
| _Roll_RA |  |

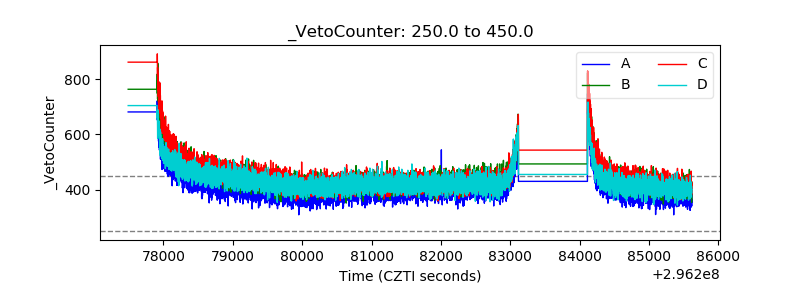

| Veto Counter |  |
