| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_176T04_9000002942_19693cztM0_level2.evt | modeM0/AS1A05_176T04_9000002942_19693cztM0_level2_quad_clean.evt |
| Size (bytes) | 315,020,160 | 62,095,680 |
| Size | 300.4 MB | 59.2 MB |
| Events in quadrant A | 2,029,192 | 401,519 |
| Events in quadrant B | 2,185,068 | 404,434 |
| Events in quadrant C | 2,150,419 | 392,455 |
| Events in quadrant D | 2,873,785 | 370,418 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9055 | 1 |
| B | 0 | 9439 | 1 |
| C | 0 | 9361 | 1 |
| D | 0 | 11588 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4419 | 16 | 0.362073% |
| B | 4419 | 34 | 0.769405% |
| C | 4419 | 45 | 1.018330% |
| D | 4419 | 230 | 5.204797% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5164 | 4420 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5164 | 4420 | 15 | 15 | 0.29% | 0.34% |  |
| C | 5164 | 4420 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5164 | 4420 | 217 | 217 | 4.20% | 4.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 24358 | 226.27 | 520 | 509 | 105.4 |
| A | 0 | 226 | 4457 | 37.46 | 520 | 509 | 105.4 |
| A | 3 | 137 | 4338 | 36.33 | 520 | 509 | 105.4 |
| B | 7 | 220 | 52483 | 514.63 | 519 | 506 | 101.0 |
| B | 0 | 197 | 27276 | 265.05 | 519 | 506 | 101.0 |
| B | 3 | 64 | 24392 | 236.5 | 519 | 506 | 101.0 |
| C | 3 | 233 | 100954 | 840.29 | 501 | 503 | 119.5 |
| C | 14 | 238 | 77149 | 641.16 | 501 | 503 | 119.5 |
| C | 8 | 208 | 16596 | 134.62 | 501 | 503 | 119.5 |
| D | 7 | 238 | 811892 | 6620.41 | 496 | 482 | 122.6 |
| D | 1 | 52 | 80464 | 652.58 | 496 | 482 | 122.6 |
| D | 12 | 218 | 43175 | 348.34 | 496 | 482 | 122.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

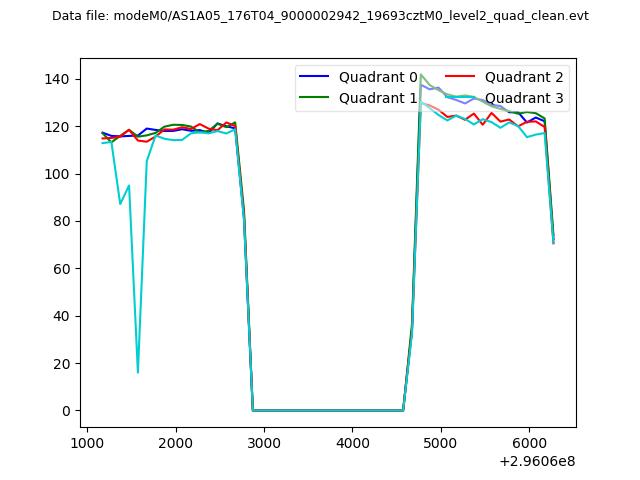

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

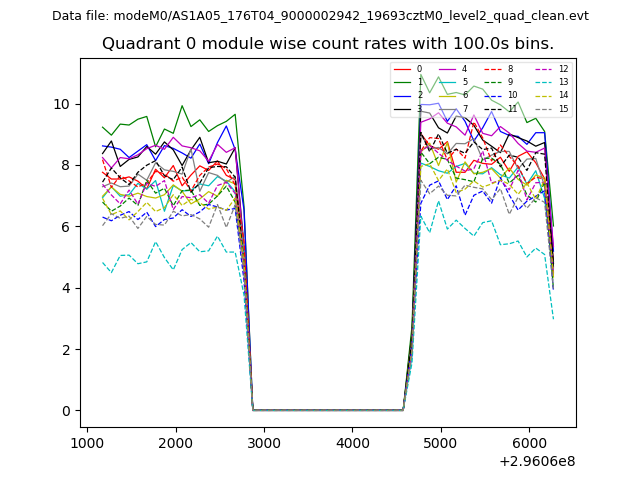

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

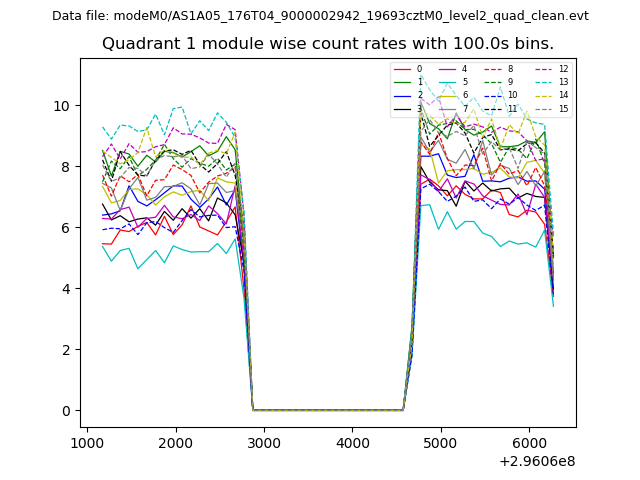

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

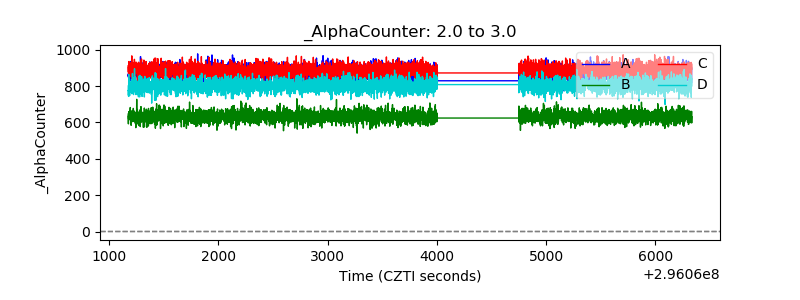

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

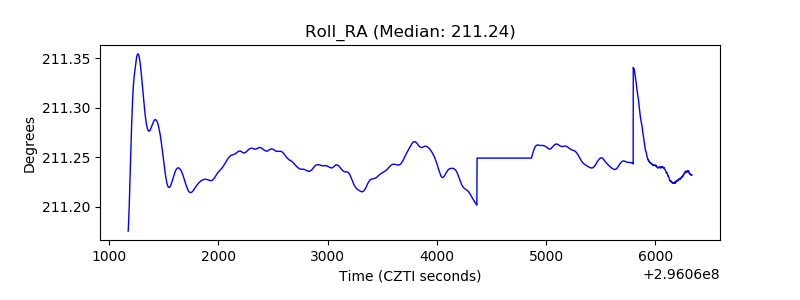

| _Roll_RA |  |

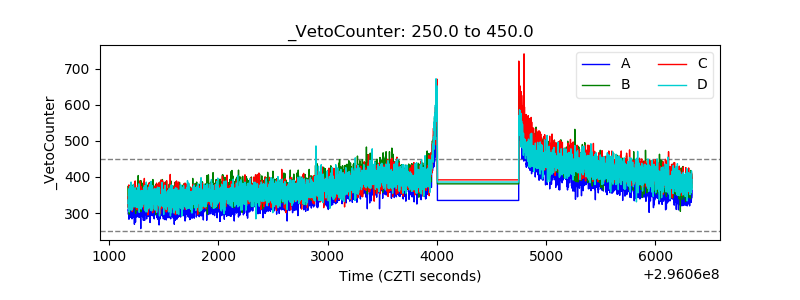

| Veto Counter |  |
