| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000002948_19742cztM0_level2.evt | modeM0/AS1C04_001T01_9000002948_19742cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,740,800 | 125,893,440 |
| Size | 420.3 MB | 120.1 MB |
| Events in quadrant A | 2,950,897 | 845,975 |
| Events in quadrant B | 3,224,541 | 878,041 |
| Events in quadrant C | 3,353,389 | 853,417 |
| Events in quadrant D | 3,404,932 | 810,225 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12830 | 2 |
| B | 0 | 13638 | 2 |
| C | 0 | 13850 | 2 |
| D | 0 | 14467 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 11 | 0.180446% |
| B | 6096 | 45 | 0.738189% |
| C | 6096 | 61 | 1.000656% |
| D | 6096 | 99 | 1.624016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7456 | 6097 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7456 | 6097 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7456 | 6097 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7456 | 6097 | 82 | 82 | 1.10% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 29 | 28541 | 185.19 | 757 | 744 | 150.1 |
| A | 0 | 226 | 6567 | 38.79 | 757 | 744 | 150.1 |
| A | 13 | 254 | 6422 | 37.83 | 757 | 744 | 150.1 |
| B | 7 | 220 | 87389 | 612.69 | 771 | 753 | 141.4 |
| B | 0 | 197 | 43078 | 299.32 | 771 | 753 | 141.4 |
| B | 0 | 214 | 24330 | 166.74 | 771 | 753 | 141.4 |
| C | 3 | 233 | 243915 | 1421.91 | 750 | 760 | 171.0 |
| C | 14 | 238 | 119260 | 692.96 | 750 | 760 | 171.0 |
| C | 7 | 247 | 37205 | 213.12 | 750 | 760 | 171.0 |
| D | 1 | 52 | 265082 | 1493.5 | 741 | 723 | 177.0 |
| D | 13 | 172 | 109543 | 614.78 | 741 | 723 | 177.0 |
| D | 9 | 1 | 93923 | 526.53 | 741 | 723 | 177.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

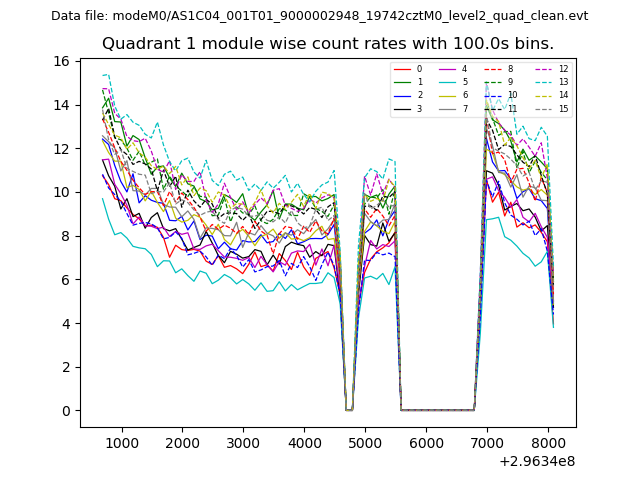

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

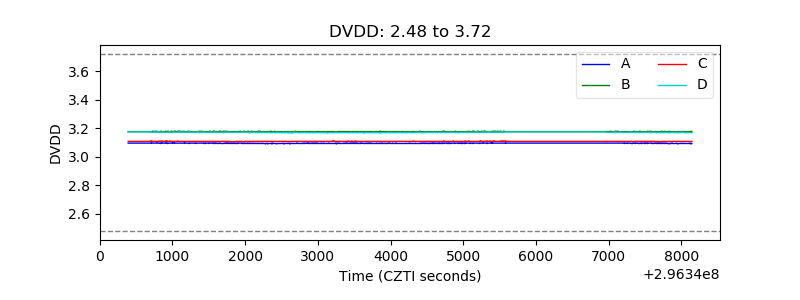

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

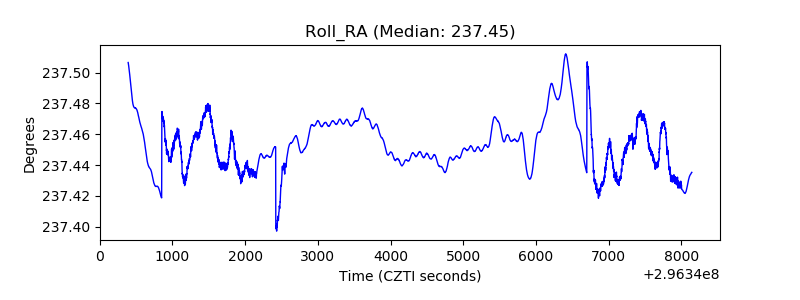

| _Roll_RA |  |
| Veto Counter |  |
