| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_022T08_9000002950_19757cztM0_level2.evt | modeM0/AS1A05_022T08_9000002950_19757cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,405,440 | 92,289,600 |
| Size | 473.4 MB | 88.0 MB |
| Events in quadrant A | 3,136,249 | 608,659 |
| Events in quadrant B | 3,280,446 | 629,696 |
| Events in quadrant C | 3,864,251 | 584,188 |
| Events in quadrant D | 4,338,308 | 545,506 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13081 | 3 |
| B | 0 | 13430 | 2 |
| C | 0 | 15699 | 2 |
| D | 0 | 17103 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6113 | 50 | 0.817929% |
| B | 6113 | 73 | 1.194176% |
| C | 6113 | 95 | 1.554065% |
| D | 6113 | 290 | 4.743988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

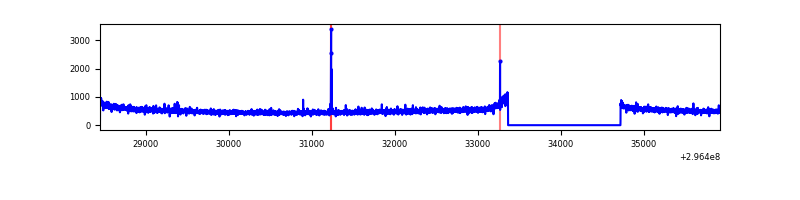

| A | 7468 | 6114 | 3 | 3 | 0.04% | 0.05% |  |

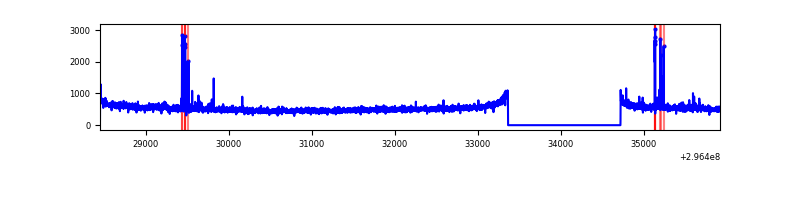

| B | 7468 | 6114 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7468 | 6114 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7468 | 6113 | 213 | 213 | 2.85% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 17493 | 102.66 | 807 | 793 | 162.7 |
| A | 4 | 2 | 7500 | 41.23 | 807 | 793 | 162.7 |
| A | 0 | 226 | 7173 | 39.22 | 807 | 793 | 162.7 |
| B | 7 | 220 | 61966 | 406.69 | 811 | 794 | 150.4 |
| B | 0 | 197 | 24893 | 160.22 | 811 | 794 | 150.4 |
| B | 12 | 111 | 17488 | 110.99 | 811 | 794 | 150.4 |
| C | 3 | 233 | 744352 | 4161.13 | 768 | 775 | 178.7 |
| C | 14 | 238 | 119424 | 663.97 | 768 | 775 | 178.7 |
| C | 13 | 61 | 5479 | 26.32 | 768 | 775 | 178.7 |
| D | 1 | 52 | 836421 | 4539.86 | 756 | 735 | 184.1 |
| D | 12 | 233 | 278216 | 1507.41 | 756 | 735 | 184.1 |
| D | 12 | 218 | 239253 | 1295.75 | 756 | 735 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

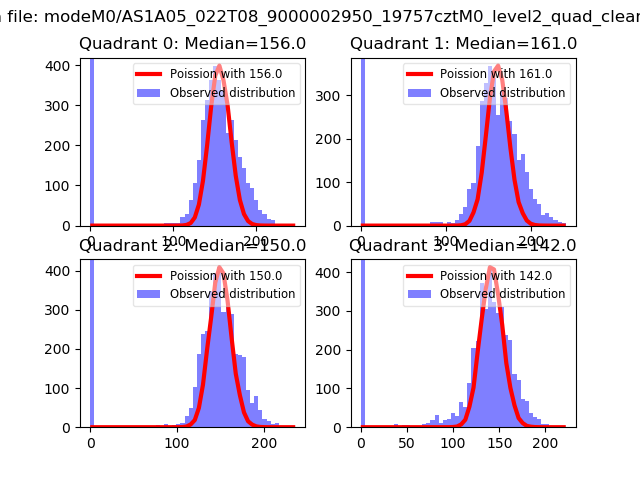

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

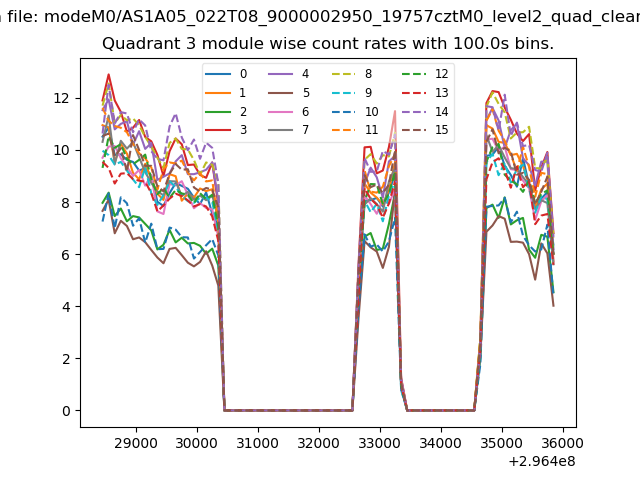

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

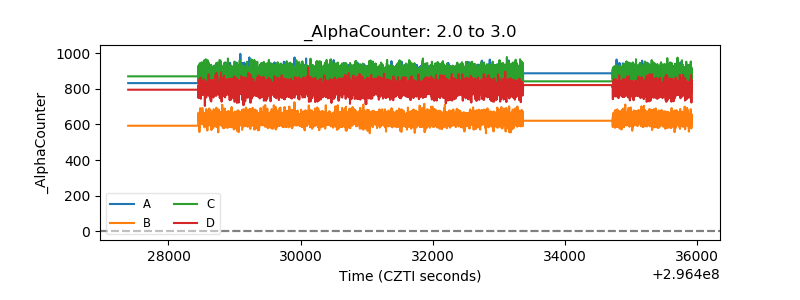

| Alpha Counter |  |
| _CPM_Rate |  |

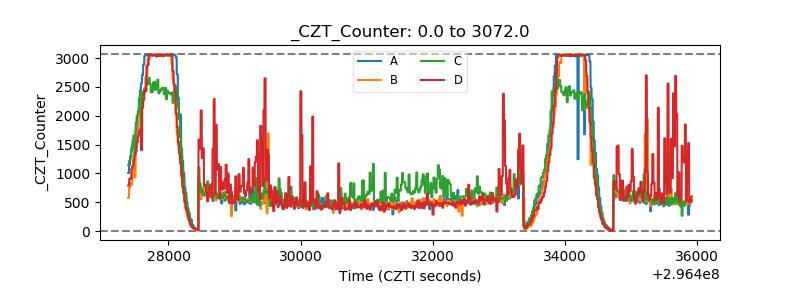

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

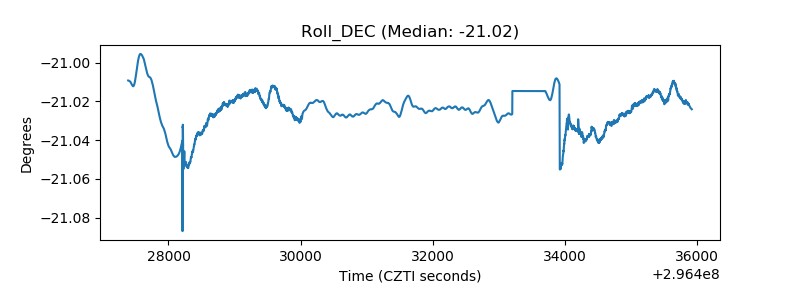

| _Roll_DEC |  |
| _Roll_RA |  |

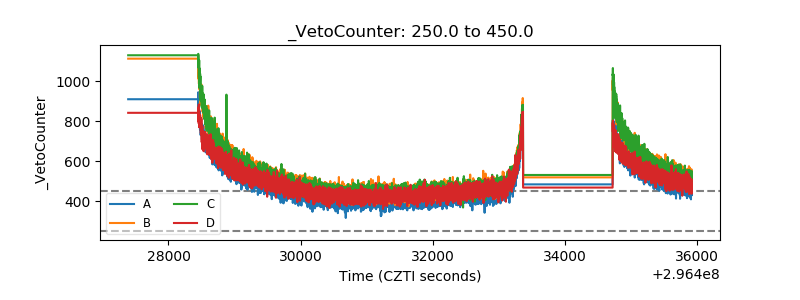

| Veto Counter |  |
