| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T05_9000002952_19767cztM0_level2.evt | modeM0/AS1A05_088T05_9000002952_19767cztM0_level2_quad_clean.evt |
| Size (bytes) | 747,547,200 | 95,627,520 |
| Size | 712.9 MB | 91.2 MB |
| Events in quadrant A | 3,384,410 | 667,704 |
| Events in quadrant B | 3,291,291 | 676,180 |
| Events in quadrant C | 8,675,239 | 514,401 |
| Events in quadrant D | 6,831,111 | 564,551 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14414 | 2 |
| B | 0 | 14234 | 2 |
| C | 0 | 30444 | 2 |
| D | 0 | 25005 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6773 | 66 | 0.974457% |
| B | 6774 | 87 | 1.284322% |
| C | 6774 | 2121 | 31.310895% |
| D | 6773 | 1183 | 17.466411% |

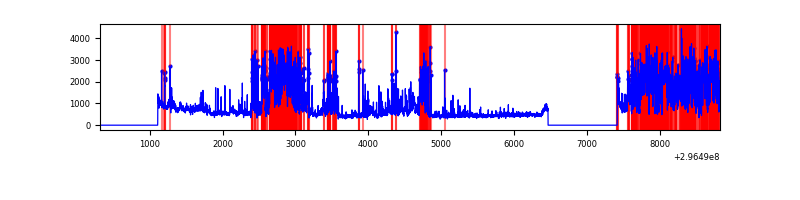

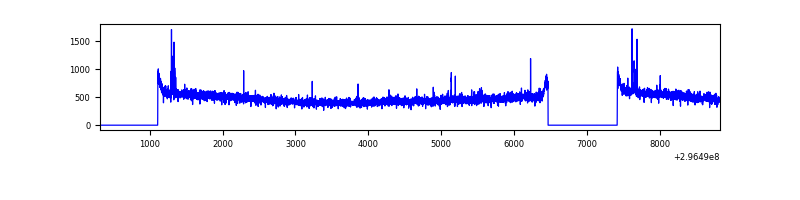

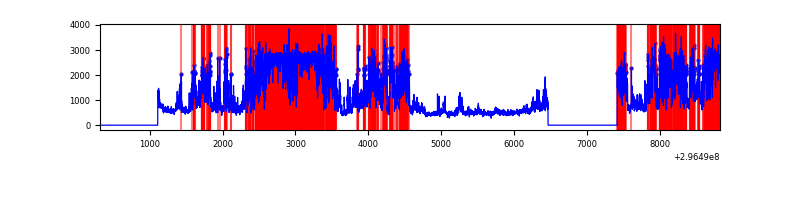

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8513 | 6773 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8514 | 6775 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8513 | 6773 | 1534 | 1534 | 18.02% | 22.65% |  |
| D | 8513 | 6774 | 935 | 935 | 10.98% | 13.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 135964 | 802.9 | 834 | 815 | 168.3 |
| A | 0 | 23 | 33964 | 196.93 | 834 | 815 | 168.3 |
| A | 0 | 226 | 8893 | 47.99 | 834 | 815 | 168.3 |
| B | 3 | 64 | 22072 | 132.29 | 831 | 808 | 160.7 |
| B | 0 | 230 | 20367 | 121.69 | 831 | 808 | 160.7 |
| B | 12 | 111 | 19361 | 115.43 | 831 | 808 | 160.7 |
| C | 3 | 233 | 5804668 | 35388.32 | 707 | 711 | 164.0 |
| C | 14 | 238 | 108268 | 655.8 | 707 | 711 | 164.0 |
| C | 13 | 61 | 4828 | 25.1 | 707 | 711 | 164.0 |
| D | 7 | 238 | 3788296 | 20282.36 | 762 | 740 | 186.7 |
| D | 12 | 233 | 73527 | 389.77 | 762 | 740 | 186.7 |
| D | 1 | 52 | 72241 | 382.89 | 762 | 740 | 186.7 |

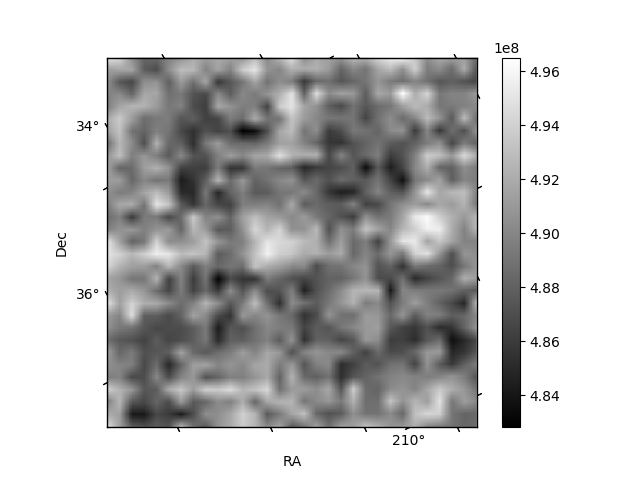

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

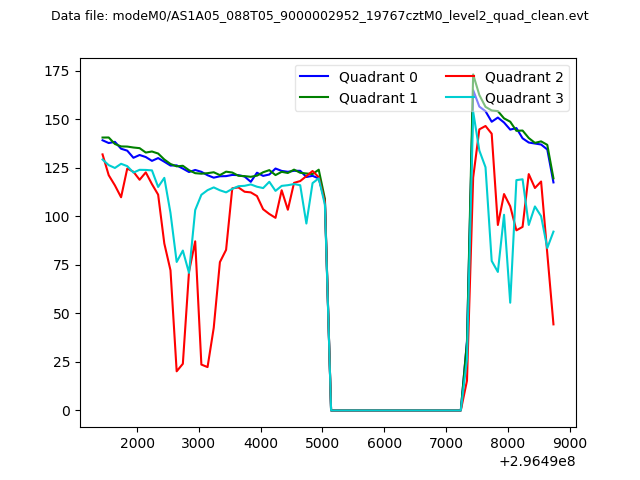

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

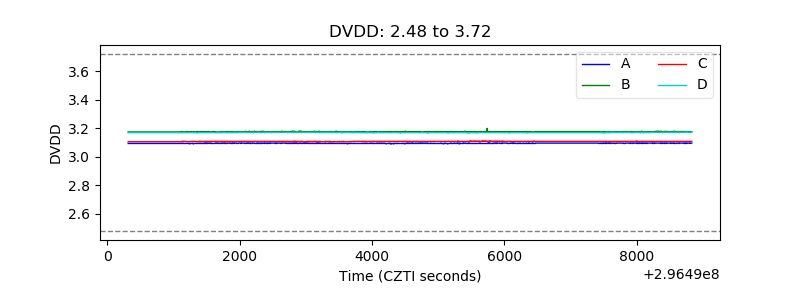

| D_VDD |  |

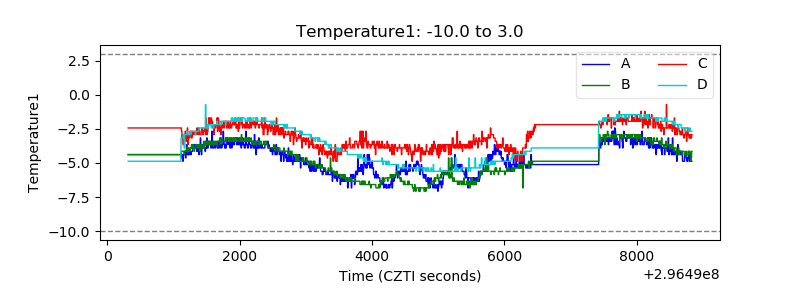

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

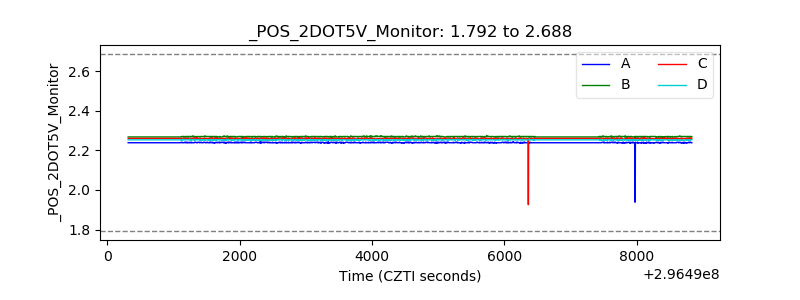

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
