| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T08_9000002954_19770cztM0_level2.evt | modeM0/AS1A05_104T08_9000002954_19770cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,845,120 | 54,325,440 |
| Size | 359.4 MB | 51.8 MB |
| Events in quadrant A | 2,223,762 | 343,101 |
| Events in quadrant B | 2,403,607 | 349,483 |
| Events in quadrant C | 2,776,727 | 325,561 |
| Events in quadrant D | 3,697,988 | 305,581 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9550 | 1 |
| B | 0 | 10077 | 1 |
| C | 0 | 11179 | 1 |
| D | 0 | 14059 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4568 | 35 | 0.766200% |
| B | 4568 | 71 | 1.554291% |
| C | 4568 | 139 | 3.042907% |
| D | 4567 | 393 | 8.605211% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

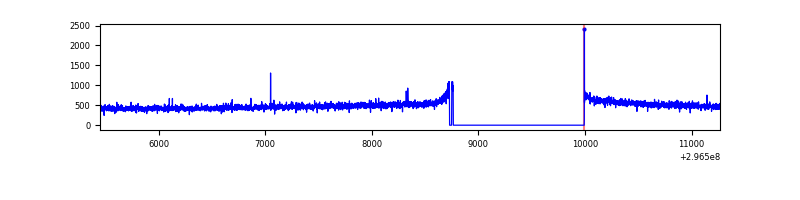

| A | 5818 | 4570 | 1 | 1 | 0.02% | 0.02% |  |
| B | 5818 | 4569 | 25 | 25 | 0.43% | 0.55% |  |

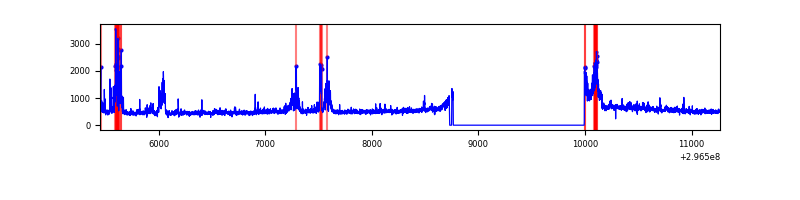

| C | 5818 | 4570 | 37 | 37 | 0.64% | 0.81% |  |

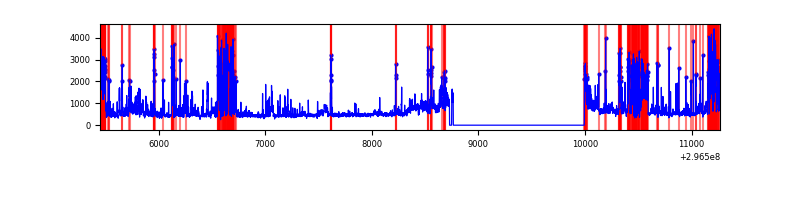

| D | 5817 | 4568 | 323 | 323 | 5.55% | 7.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 5211 | 39.93 | 574 | 562 | 116.4 |
| A | 13 | 254 | 5004 | 38.15 | 574 | 562 | 116.4 |
| A | 6 | 16 | 4645 | 35.07 | 574 | 562 | 116.4 |
| B | 4 | 216 | 78936 | 718.26 | 574 | 561 | 109.1 |
| B | 7 | 220 | 37227 | 336.02 | 574 | 561 | 109.1 |
| B | 0 | 190 | 13909 | 122.33 | 574 | 561 | 109.1 |
| C | 3 | 233 | 541650 | 4210.58 | 549 | 555 | 128.5 |
| C | 14 | 238 | 86801 | 671.13 | 549 | 555 | 128.5 |
| C | 7 | 247 | 5222 | 36.32 | 549 | 555 | 128.5 |
| D | 7 | 238 | 980193 | 7414.54 | 539 | 524 | 132.1 |
| D | 1 | 52 | 513372 | 3881.45 | 539 | 524 | 132.1 |
| D | 12 | 218 | 100735 | 758.44 | 539 | 524 | 132.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

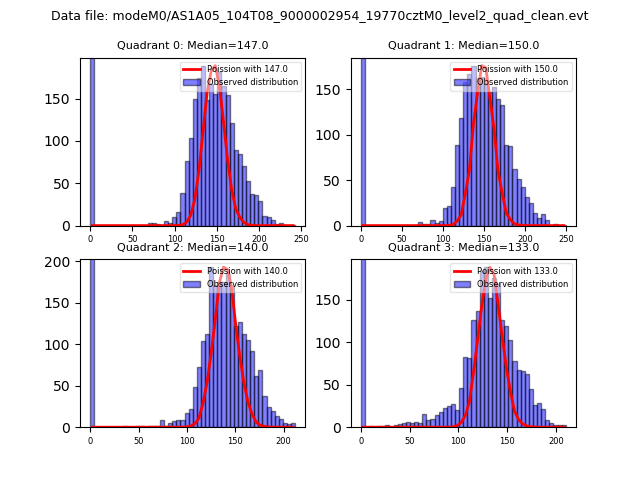

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

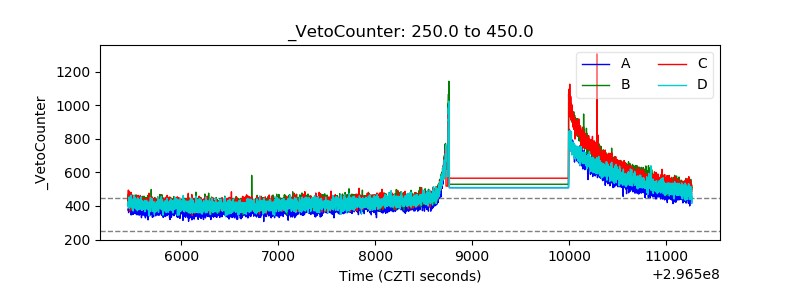

| Veto HV Monitor |  |
| Veto LLD |  |

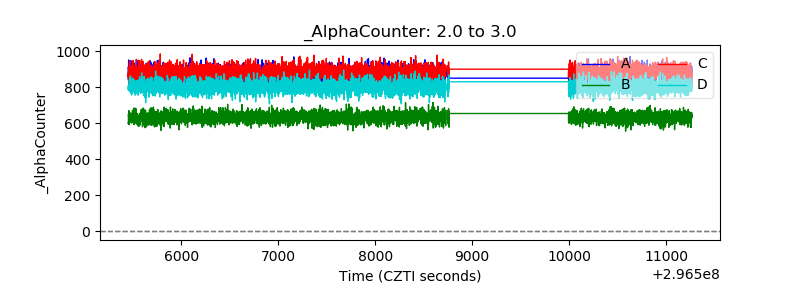

| Alpha Counter |  |
| _CPM_Rate |  |

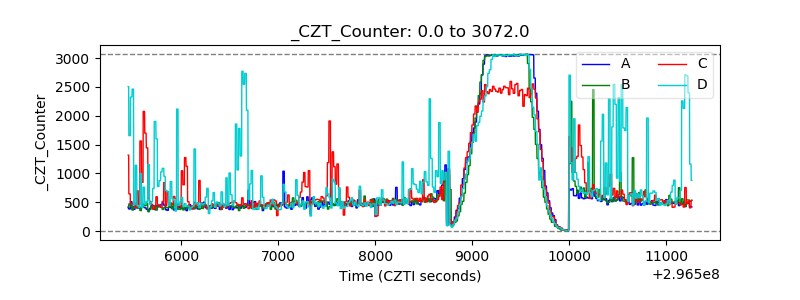

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
