| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T08_9000002954_19771cztM0_level2.evt | modeM0/AS1A05_104T08_9000002954_19771cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,020,480 | 93,075,840 |
| Size | 467.3 MB | 88.8 MB |
| Events in quadrant A | 3,128,575 | 614,447 |
| Events in quadrant B | 3,360,660 | 630,921 |
| Events in quadrant C | 3,667,453 | 586,607 |
| Events in quadrant D | 4,262,695 | 553,712 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13132 | 2 |
| B | 0 | 13727 | 2 |
| C | 0 | 14813 | 2 |
| D | 0 | 16722 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6202 | 52 | 0.838439% |
| B | 6202 | 89 | 1.435021% |
| C | 6202 | 172 | 2.773299% |
| D | 6201 | 303 | 4.886309% |

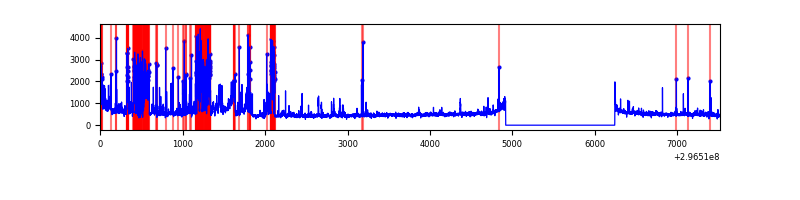

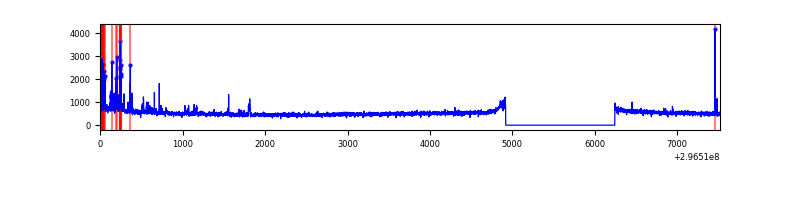

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6203 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7527 | 6203 | 26 | 26 | 0.35% | 0.42% |  |
| C | 7527 | 6203 | 30 | 30 | 0.40% | 0.48% |  |
| D | 7526 | 6202 | 247 | 247 | 3.28% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 9769 | 56.24 | 808 | 797 | 159.5 |
| A | 8 | 192 | 8068 | 45.58 | 808 | 797 | 159.5 |
| A | 13 | 254 | 7323 | 40.91 | 808 | 797 | 159.5 |
| B | 4 | 216 | 81428 | 531.21 | 811 | 793 | 151.8 |
| B | 7 | 220 | 37450 | 241.49 | 811 | 793 | 151.8 |
| B | 12 | 111 | 17833 | 112.26 | 811 | 793 | 151.8 |
| C | 3 | 233 | 522652 | 2921.46 | 773 | 781 | 178.6 |
| C | 14 | 238 | 122244 | 679.96 | 773 | 781 | 178.6 |
| C | 4 | 175 | 6431 | 31.63 | 773 | 781 | 178.6 |
| D | 1 | 52 | 588643 | 3144.07 | 767 | 746 | 187.0 |
| D | 7 | 238 | 526638 | 2812.47 | 767 | 746 | 187.0 |
| D | 12 | 218 | 156588 | 833.44 | 767 | 746 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

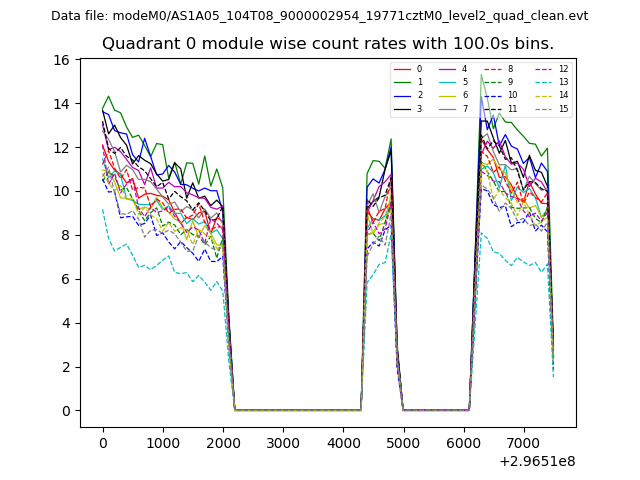

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

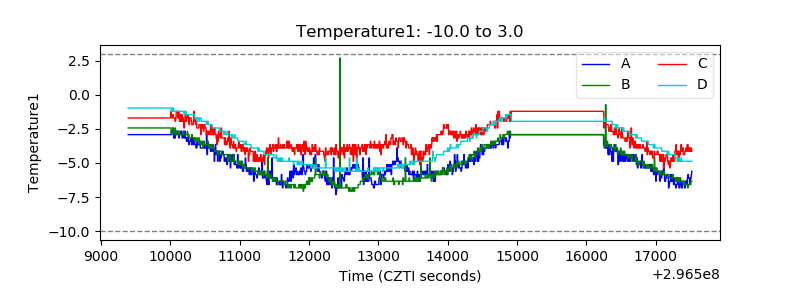

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

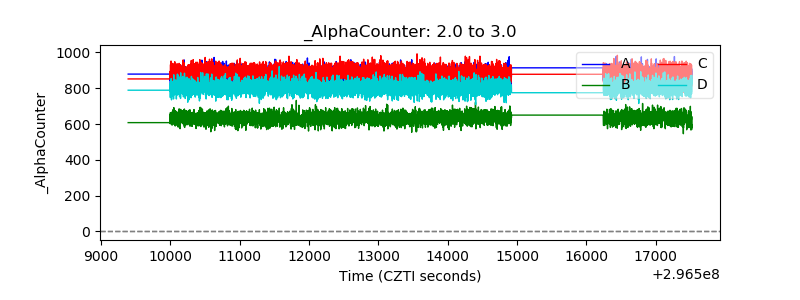

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

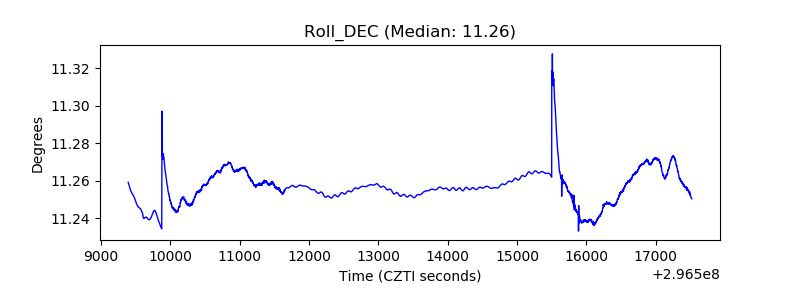

| _ROLL_ROT |  |
| _Roll_DEC |  |

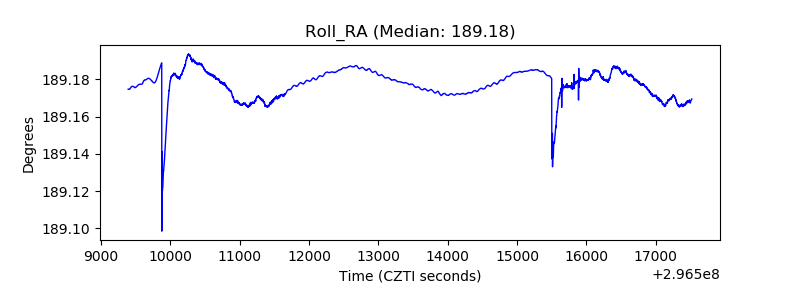

| _Roll_RA |  |

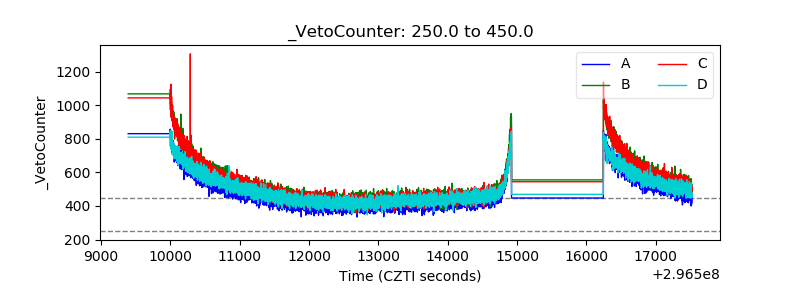

| Veto Counter |  |
