| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_104T08_9000002954_19773cztM0_level2.evt | modeM0/AS1A05_104T08_9000002954_19773cztM0_level2_quad_clean.evt |
| Size (bytes) | 713,125,440 | 79,989,120 |
| Size | 680.1 MB | 76.3 MB |
| Events in quadrant A | 3,288,587 | 536,739 |
| Events in quadrant B | 3,184,342 | 555,591 |
| Events in quadrant C | 11,364,752 | 403,284 |
| Events in quadrant D | 3,343,099 | 496,508 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13448 | 2 |
| B | 0 | 13045 | 2 |
| C | 0 | 38057 | 2 |
| D | 0 | 13915 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6146 | 65 | 1.057598% |
| B | 6146 | 28 | 0.455581% |
| C | 6145 | 3559 | 57.917006% |
| D | 6145 | 99 | 1.611066% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6147 | 36 | 36 | 0.48% | 0.59% |  |
| B | 7546 | 6147 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7545 | 6146 | 2912 | 2912 | 38.60% | 47.38% |  |
| D | 7545 | 6146 | 73 | 73 | 0.97% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 195720 | 1229.05 | 790 | 775 | 158.6 |
| A | 0 | 23 | 26531 | 162.38 | 790 | 775 | 158.6 |
| A | 9 | 143 | 15395 | 92.17 | 790 | 775 | 158.6 |
| B | 7 | 220 | 19144 | 121.28 | 799 | 780 | 151.4 |
| B | 12 | 111 | 18027 | 113.91 | 799 | 780 | 151.4 |
| B | 0 | 214 | 15874 | 99.69 | 799 | 780 | 151.4 |
| C | 3 | 233 | 8987330 | 66056.75 | 579 | 583 | 136.0 |
| C | 14 | 238 | 89415 | 652.96 | 579 | 583 | 136.0 |
| C | 10 | 91 | 23277 | 166.81 | 579 | 583 | 136.0 |
| D | 7 | 238 | 257381 | 1386.31 | 754 | 733 | 185.1 |
| D | 1 | 52 | 100955 | 541.36 | 754 | 733 | 185.1 |
| D | 12 | 218 | 73407 | 392.56 | 754 | 733 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

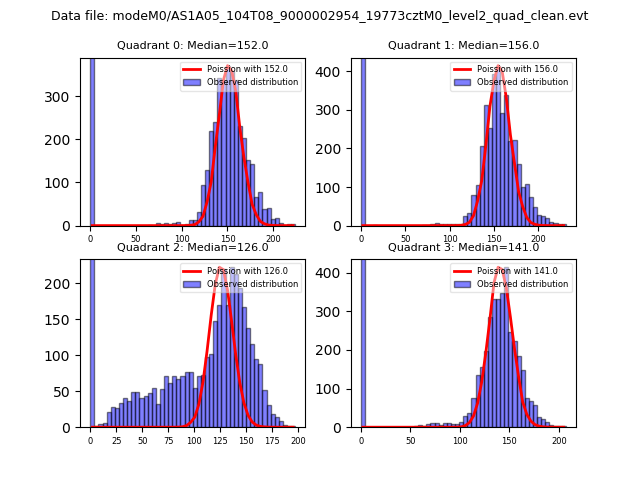

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

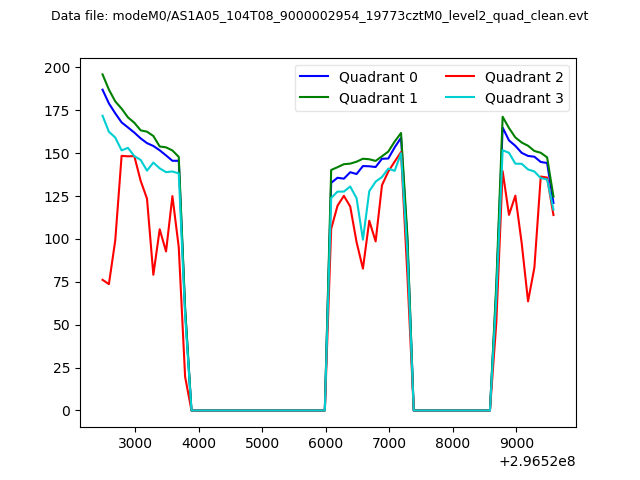

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

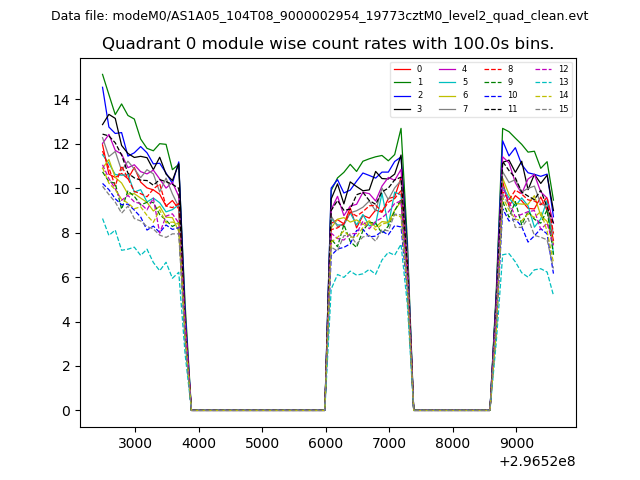

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

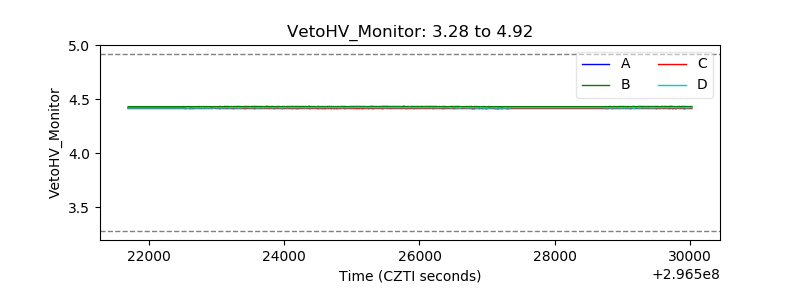

| Veto HV Monitor |  |
| Veto LLD |  |

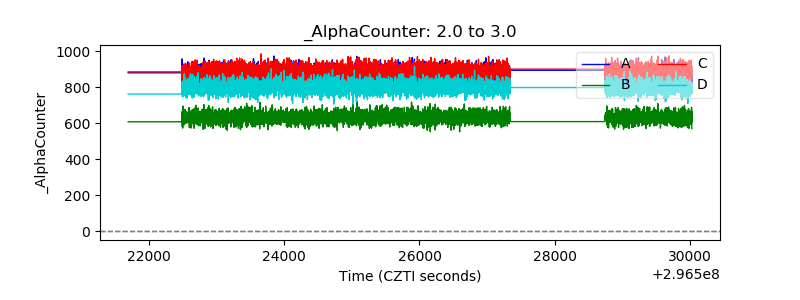

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

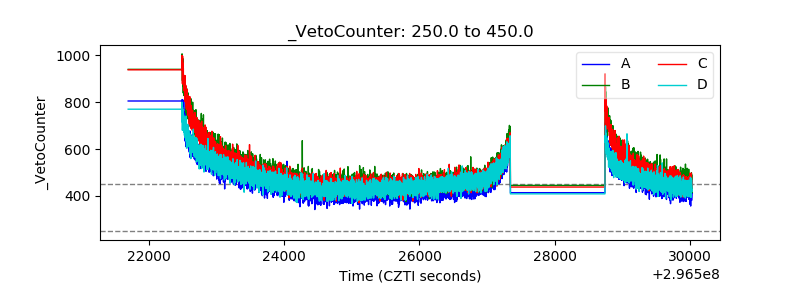

| Veto Counter |  |
