| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000002958_19781cztM0_level2.evt | modeM0/AS1A05_117T01_9000002958_19781cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,568,000 | 63,368,640 |
| Size | 488.8 MB | 60.4 MB |
| Events in quadrant A | 3,086,377 | 379,736 |
| Events in quadrant B | 3,414,620 | 377,424 |
| Events in quadrant C | 4,908,760 | 351,875 |
| Events in quadrant D | 3,675,337 | 359,181 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13287 | 1 |
| B | 0 | 14362 | 1 |
| C | 0 | 18850 | 1 |
| D | 0 | 15261 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 78 | 1.207617% |
| B | 6459 | 144 | 2.229447% |
| C | 6459 | 462 | 7.152810% |
| D | 6459 | 134 | 2.074625% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7339 | 6459 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7339 | 6459 | 40 | 40 | 0.55% | 0.62% |  |
| C | 7339 | 6459 | 257 | 257 | 3.50% | 3.98% |  |
| D | 7339 | 6459 | 74 | 74 | 1.01% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 35307 | 218.12 | 788 | 771 | 158.3 |
| A | 0 | 226 | 8905 | 51.37 | 788 | 771 | 158.3 |
| A | 6 | 16 | 7672 | 43.58 | 788 | 771 | 158.3 |
| B | 7 | 220 | 302073 | 2039.97 | 778 | 759 | 147.7 |
| B | 12 | 111 | 17821 | 115.51 | 778 | 759 | 147.7 |
| B | 0 | 190 | 16175 | 104.37 | 778 | 759 | 147.7 |
| C | 3 | 233 | 1895255 | 11159.28 | 729 | 735 | 169.8 |
| C | 14 | 238 | 115204 | 674.25 | 729 | 735 | 169.8 |
| C | 7 | 247 | 37716 | 217.83 | 729 | 735 | 169.8 |
| D | 1 | 52 | 427287 | 2265.45 | 764 | 740 | 188.3 |
| D | 13 | 138 | 136614 | 721.65 | 764 | 740 | 188.3 |
| D | 12 | 218 | 113896 | 600.99 | 764 | 740 | 188.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

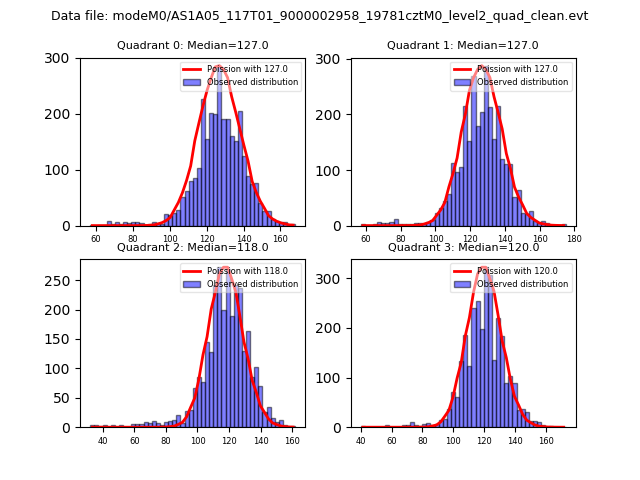

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

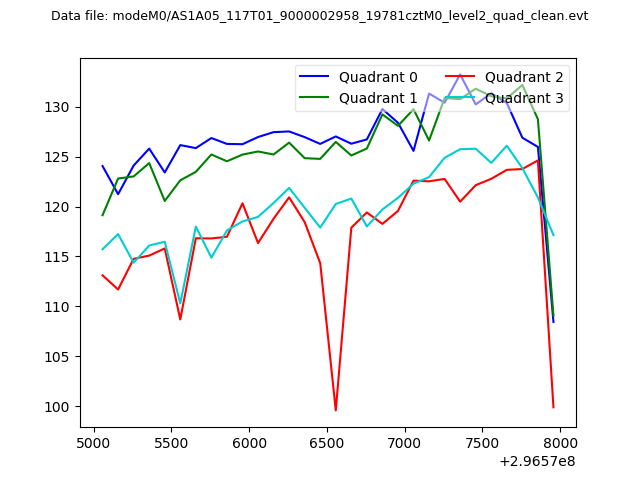

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

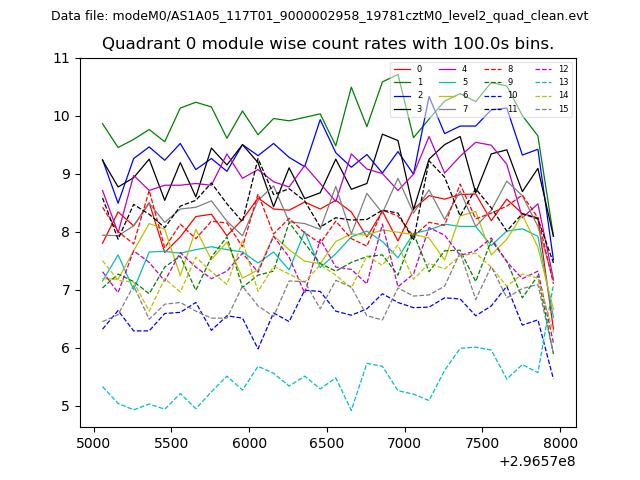

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

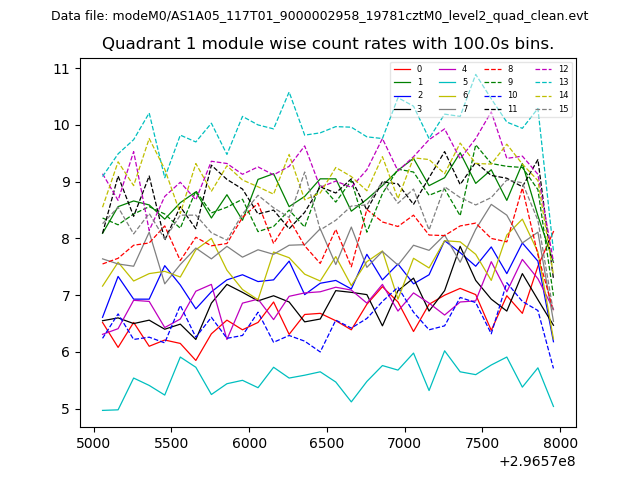

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

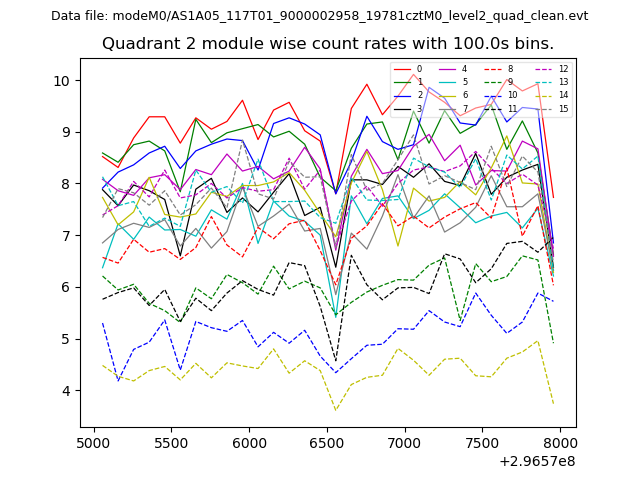

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

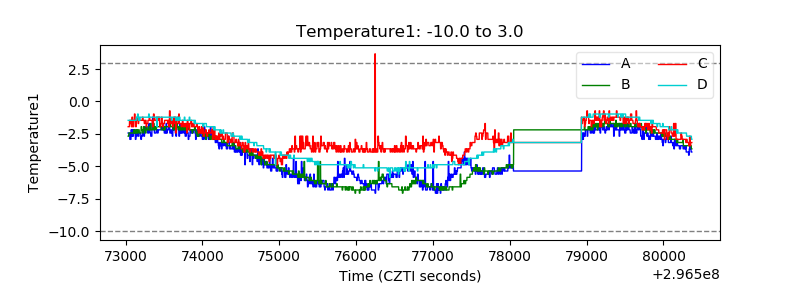

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

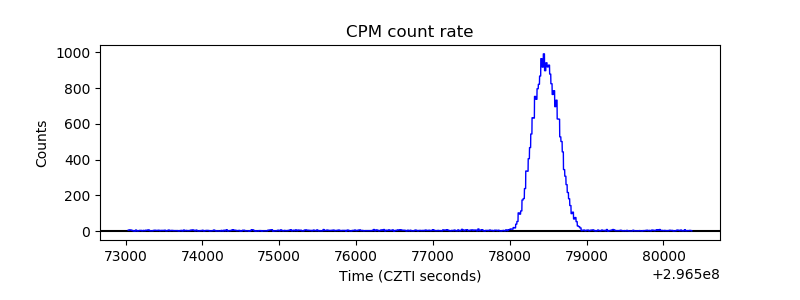

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

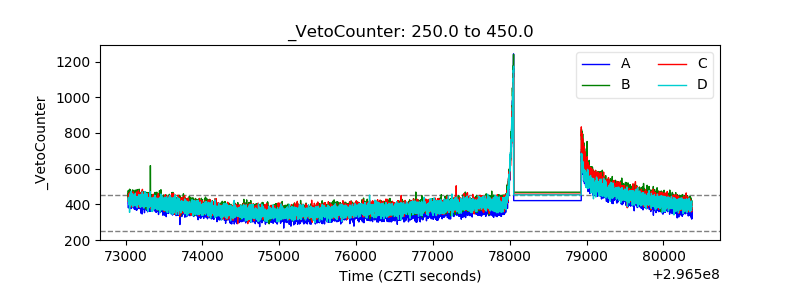

| Veto Counter |  |
