| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000002958_19785cztM0_level2.evt | modeM0/AS1A05_117T01_9000002958_19785cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,339,520 | 95,201,280 |
| Size | 502.9 MB | 90.8 MB |
| Events in quadrant A | 3,631,920 | 628,363 |
| Events in quadrant B | 3,766,708 | 636,229 |
| Events in quadrant C | 4,096,828 | 594,783 |
| Events in quadrant D | 4,048,837 | 584,966 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14912 | 2 |
| B | 0 | 15265 | 2 |
| C | 0 | 16057 | 2 |
| D | 0 | 16469 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 95 | 1.509374% |
| B | 6294 | 217 | 3.447728% |
| C | 6294 | 336 | 5.338418% |
| D | 6294 | 152 | 2.414998% |

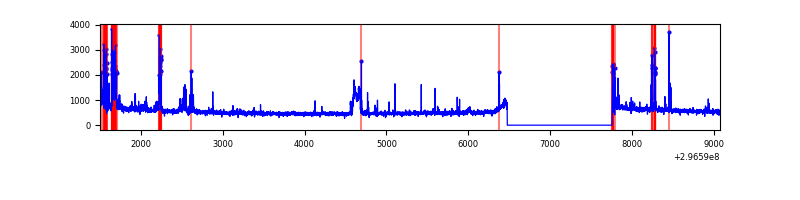

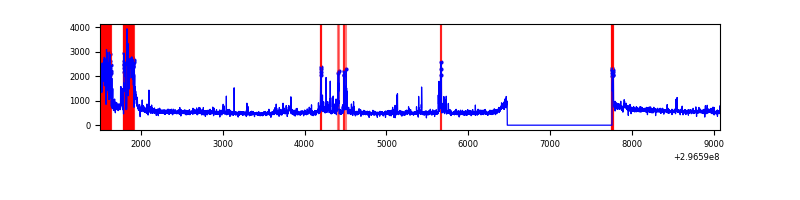

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6295 | 45 | 45 | 0.59% | 0.71% |  |
| B | 7574 | 6294 | 75 | 75 | 0.99% | 1.19% |  |
| C | 7574 | 6295 | 191 | 191 | 2.52% | 3.03% |  |
| D | 7574 | 6295 | 114 | 114 | 1.51% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 337917 | 1988.36 | 847 | 833 | 169.5 |
| A | 6 | 16 | 27651 | 158.19 | 847 | 833 | 169.5 |
| A | 0 | 226 | 7267 | 37.95 | 847 | 833 | 169.5 |
| B | 4 | 216 | 168667 | 1083.02 | 839 | 820 | 155.0 |
| B | 7 | 220 | 123701 | 792.88 | 839 | 820 | 155.0 |
| B | 3 | 64 | 108131 | 692.41 | 839 | 820 | 155.0 |
| C | 3 | 233 | 869376 | 4744.54 | 791 | 798 | 183.1 |
| C | 14 | 238 | 126019 | 684.01 | 791 | 798 | 183.1 |
| C | 7 | 247 | 17628 | 91.93 | 791 | 798 | 183.1 |
| D | 1 | 52 | 822129 | 4186.02 | 818 | 798 | 196.2 |
| D | 12 | 218 | 111676 | 565.1 | 818 | 798 | 196.2 |
| D | 7 | 96 | 30581 | 151.79 | 818 | 798 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

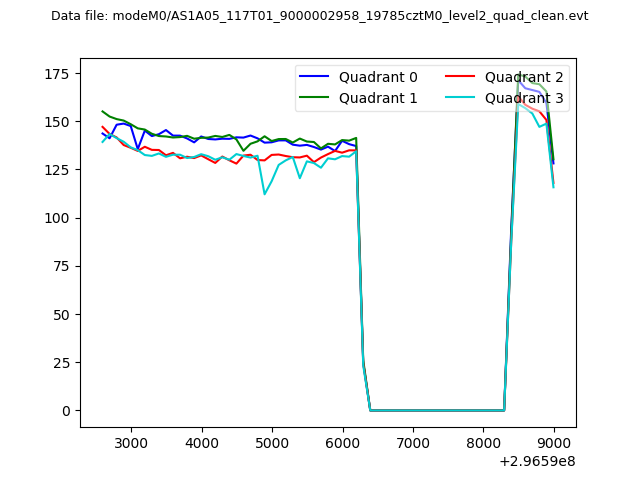

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

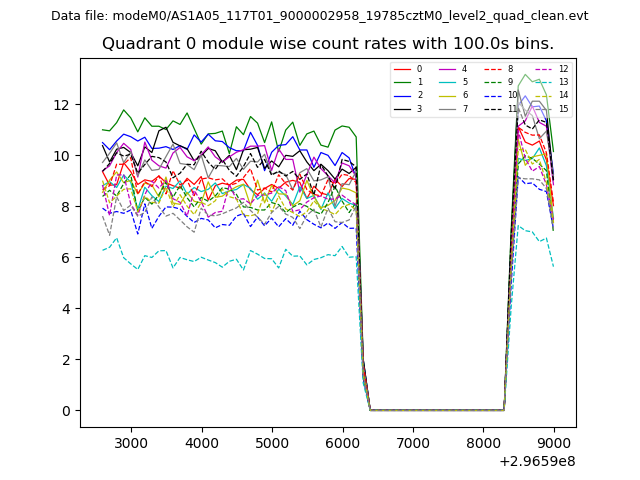

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

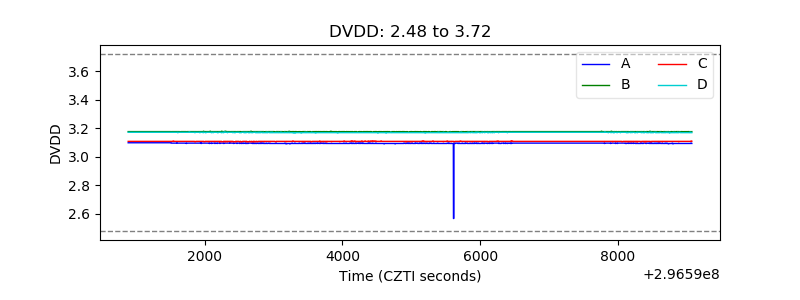

| D_VDD |  |
| Temperature 1 |  |

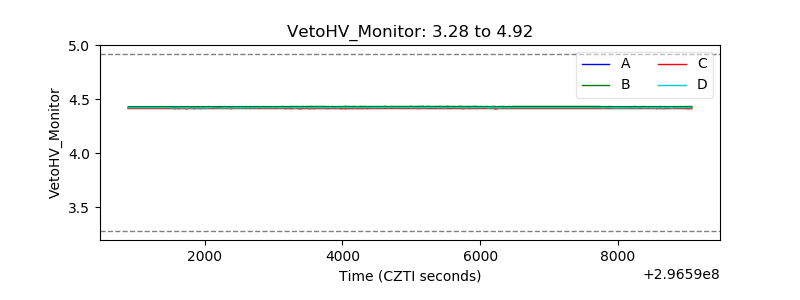

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

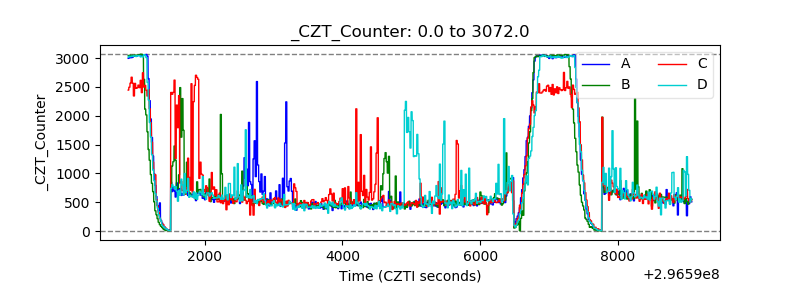

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

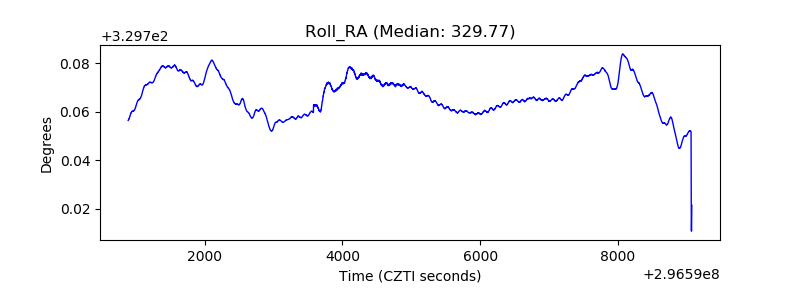

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
