| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000002958_19789cztM0_level2.evt | modeM0/AS1A05_117T01_9000002958_19789cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,234,240 | 93,960,000 |
| Size | 526.7 MB | 89.6 MB |
| Events in quadrant A | 5,400,452 | 590,954 |
| Events in quadrant B | 3,288,960 | 620,769 |
| Events in quadrant C | 3,336,929 | 596,528 |
| Events in quadrant D | 4,251,195 | 577,244 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20476 | 2 |
| B | 0 | 13973 | 2 |
| C | 0 | 13876 | 2 |
| D | 0 | 17008 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6601 | 335 | 5.074989% |
| B | 6601 | 75 | 1.136191% |
| C | 6601 | 119 | 1.802757% |
| D | 6601 | 259 | 3.923648% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6602 | 229 | 229 | 3.03% | 3.47% |  |
| B | 7546 | 6602 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7546 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7546 | 6602 | 221 | 221 | 2.93% | 3.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 2288786 | 14079.85 | 807 | 790 | 162.5 |
| A | 0 | 226 | 6944 | 37.87 | 807 | 790 | 162.5 |
| A | 3 | 137 | 6509 | 35.19 | 807 | 790 | 162.5 |
| B | 7 | 220 | 41293 | 259.24 | 818 | 796 | 156.2 |
| B | 0 | 230 | 22598 | 139.56 | 818 | 796 | 156.2 |
| B | 12 | 111 | 18673 | 114.44 | 818 | 796 | 156.2 |
| C | 14 | 238 | 125514 | 664.99 | 799 | 806 | 187.5 |
| C | 3 | 233 | 81991 | 432.91 | 799 | 806 | 187.5 |
| C | 8 | 208 | 6728 | 31.58 | 799 | 806 | 187.5 |
| D | 1 | 52 | 1045073 | 5366.5 | 802 | 781 | 194.6 |
| D | 7 | 238 | 83027 | 422.65 | 802 | 781 | 194.6 |
| D | 12 | 218 | 65630 | 333.25 | 802 | 781 | 194.6 |

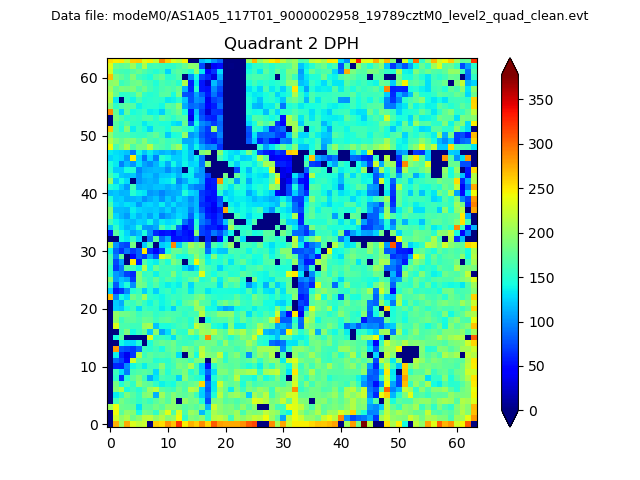

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

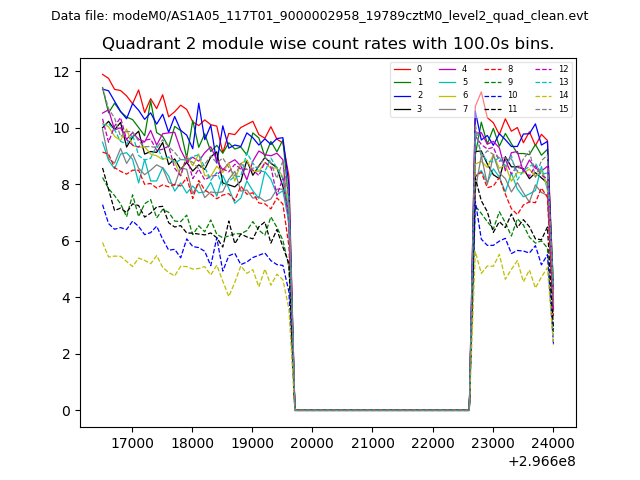

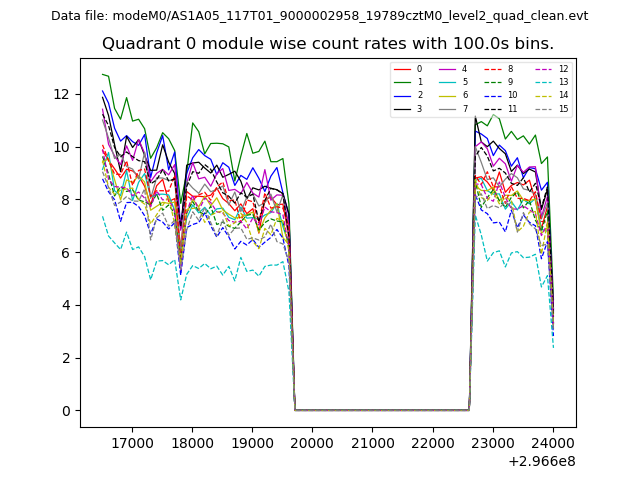

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

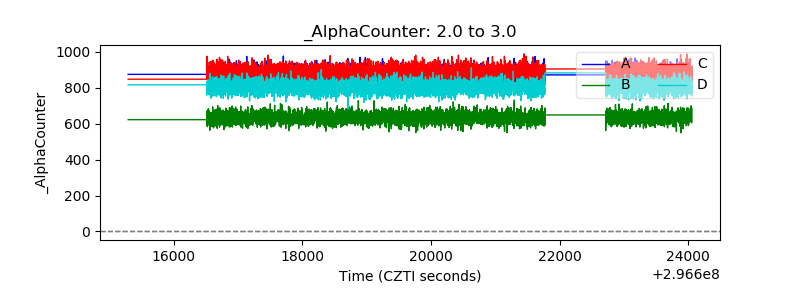

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

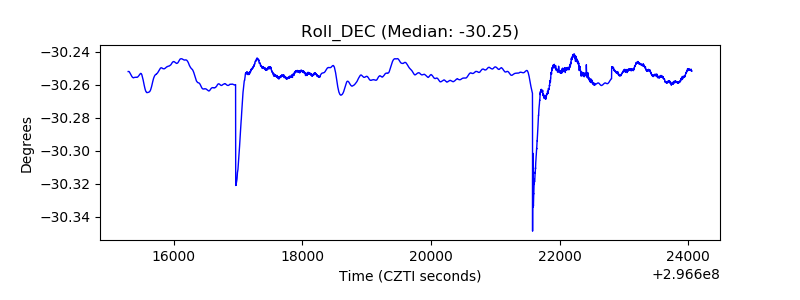

| _Roll_DEC |  |

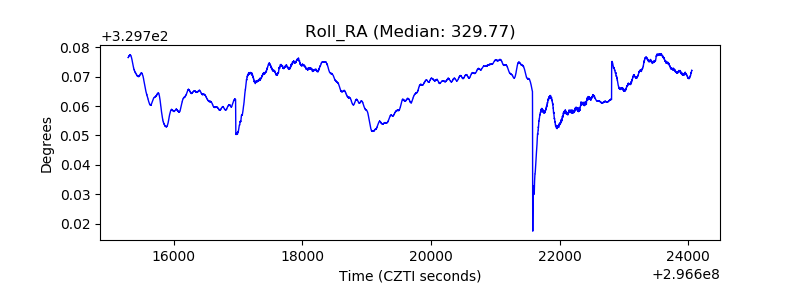

| _Roll_RA |  |

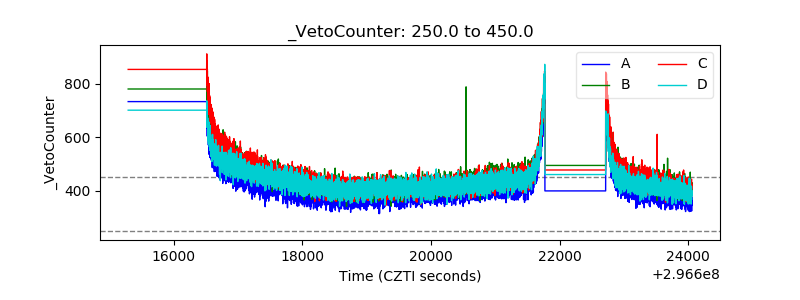

| Veto Counter |  |
