| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_009T06_9000002960_19804cztM0_level2.evt | modeM0/AS1C04_009T06_9000002960_19804cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,177,920 | 124,030,080 |
| Size | 498.9 MB | 118.3 MB |
| Events in quadrant A | 4,381,909 | 825,983 |
| Events in quadrant B | 3,041,049 | 854,936 |
| Events in quadrant C | 2,997,716 | 830,313 |
| Events in quadrant D | 4,972,928 | 781,792 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17686 | 1 |
| B | 0 | 13656 | 1 |
| C | 0 | 13511 | 1 |
| D | 0 | 19585 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6646 | 202 | 3.039422% |
| B | 6646 | 29 | 0.436353% |
| C | 6647 | 48 | 0.722130% |
| D | 6647 | 502 | 7.552279% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7416 | 6648 | 145 | 145 | 1.96% | 2.18% |  |
| B | 7416 | 6648 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7417 | 6649 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7417 | 6649 | 393 | 393 | 5.30% | 5.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 1487731 | 9791.94 | 752 | 734 | 151.9 |
| A | 0 | 226 | 6445 | 37.61 | 752 | 734 | 151.9 |
| A | 3 | 137 | 5904 | 34.04 | 752 | 734 | 151.9 |
| B | 7 | 220 | 23566 | 161.15 | 758 | 738 | 141.7 |
| B | 4 | 216 | 22220 | 151.65 | 758 | 738 | 141.7 |
| B | 12 | 111 | 17025 | 114.98 | 758 | 738 | 141.7 |
| C | 14 | 238 | 115840 | 679.67 | 732 | 738 | 169.4 |
| C | 3 | 233 | 25039 | 143.5 | 732 | 738 | 169.4 |
| C | 13 | 61 | 5080 | 25.64 | 732 | 738 | 169.4 |
| D | 7 | 238 | 1279876 | 7379.0 | 716 | 694 | 173.4 |
| D | 1 | 52 | 609014 | 3509.11 | 716 | 694 | 173.4 |
| D | 2 | 69 | 139395 | 800.1 | 716 | 694 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

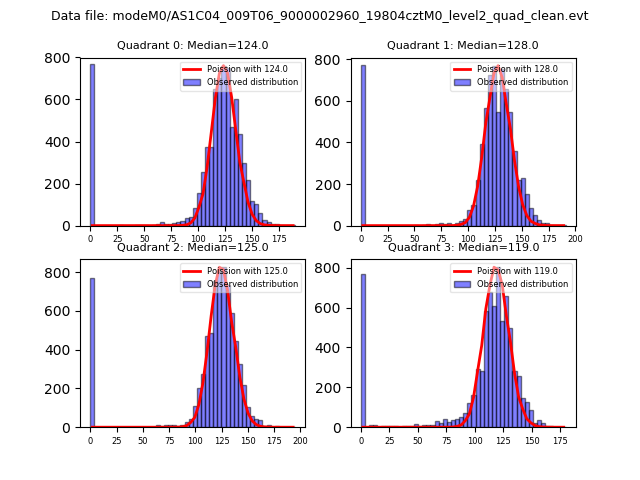

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
