| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_009T06_9000002960_19806cztM0_level2.evt | modeM0/AS1C04_009T06_9000002960_19806cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,087,680 | 135,472,320 |
| Size | 538.9 MB | 129.2 MB |
| Events in quadrant A | 3,340,804 | 916,312 |
| Events in quadrant B | 3,546,407 | 930,310 |
| Events in quadrant C | 3,515,519 | 904,281 |
| Events in quadrant D | 6,200,945 | 829,211 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15332 | 2 |
| B | 0 | 15710 | 2 |
| C | 0 | 15652 | 2 |
| D | 0 | 23853 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7503 | 146 | 1.945888% |
| B | 7503 | 156 | 2.079168% |
| C | 7503 | 153 | 2.039184% |
| D | 7503 | 1048 | 13.967746% |

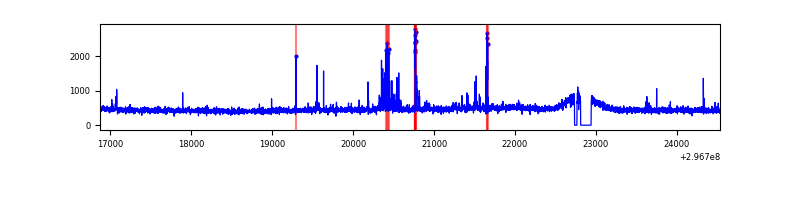

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 7504 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7663 | 7504 | 16 | 16 | 0.21% | 0.21% |  |
| C | 7663 | 7504 | 13 | 13 | 0.17% | 0.17% |  |
| D | 7663 | 7504 | 882 | 882 | 11.51% | 11.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7588 | 38.42 | 867 | 845 | 175.5 |
| A | 3 | 137 | 7088 | 35.57 | 867 | 845 | 175.5 |
| A | 12 | 194 | 6406 | 31.69 | 867 | 845 | 175.5 |
| B | 4 | 216 | 93549 | 555.43 | 866 | 841 | 166.9 |
| B | 7 | 220 | 34882 | 203.94 | 866 | 841 | 166.9 |
| B | 12 | 111 | 20312 | 116.65 | 866 | 841 | 166.9 |
| C | 3 | 233 | 147229 | 755.39 | 830 | 834 | 193.8 |
| C | 14 | 238 | 130833 | 670.78 | 830 | 834 | 193.8 |
| C | 13 | 61 | 5810 | 25.68 | 830 | 834 | 193.8 |
| D | 7 | 38 | 1743596 | 9062.53 | 795 | 770 | 192.3 |
| D | 12 | 218 | 482577 | 2505.35 | 795 | 770 | 192.3 |
| D | 7 | 238 | 351454 | 1823.52 | 795 | 770 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

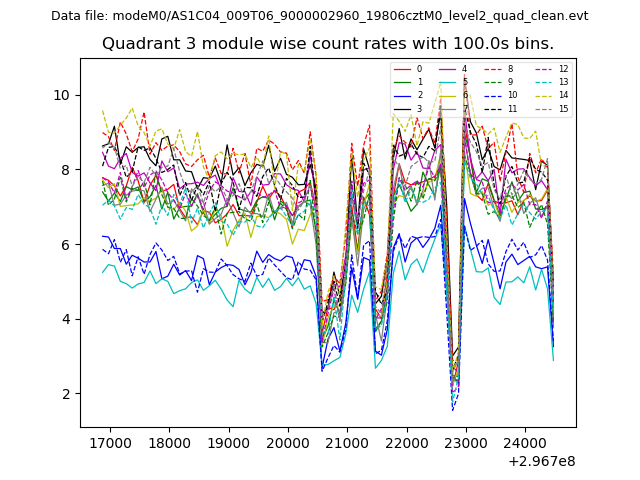

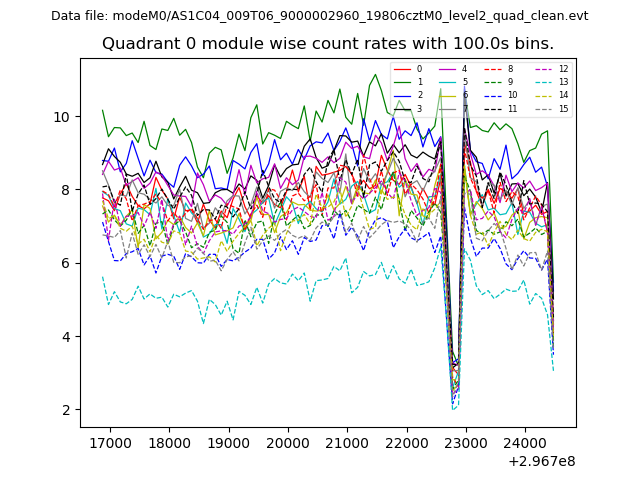

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

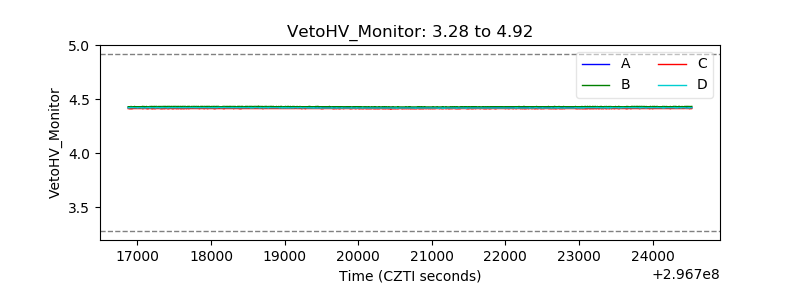

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

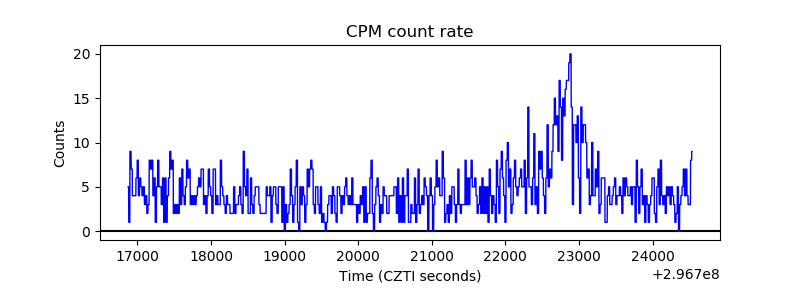

| _CPM_Rate |  |

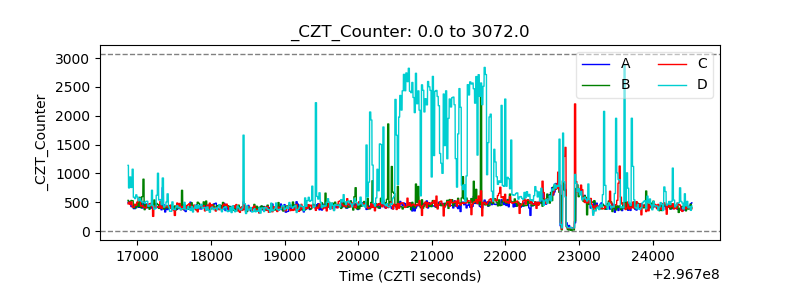

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

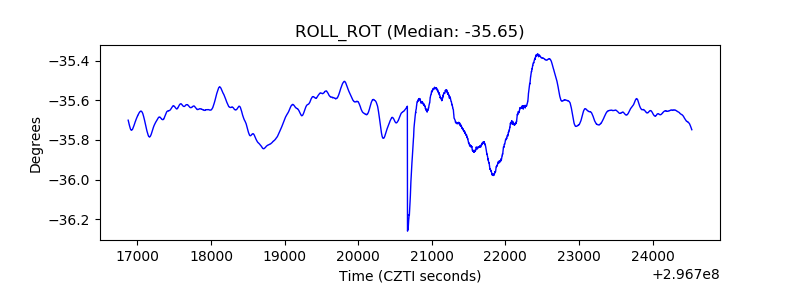

| _ROLL_ROT |  |
| _Roll_DEC |  |

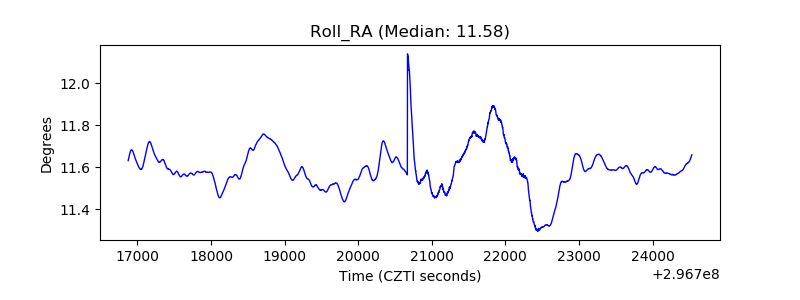

| _Roll_RA |  |
| Veto Counter |  |
