| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_009T06_9000002960_19809cztM0_level2.evt | modeM0/AS1C04_009T06_9000002960_19809cztM0_level2_quad_clean.evt |
| Size (bytes) | 917,637,120 | 216,385,920 |
| Size | 875.1 MB | 206.4 MB |
| Events in quadrant A | 5,404,245 | 1,467,577 |
| Events in quadrant B | 6,108,966 | 1,483,446 |
| Events in quadrant C | 5,588,377 | 1,437,712 |
| Events in quadrant D | 9,872,009 | 1,330,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 246 | 0 |
| B | 0 | 246 | 0 |
| C | 0 | 246 | 0 |
| D | 0 | 246 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24531 | 2 |
| B | 0 | 26180 | 2 |
| C | 0 | 24663 | 3 |
| D | 0 | 37497 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12069 | 173 | 1.433424% |
| B | 12070 | 275 | 2.278376% |
| C | 12069 | 191 | 1.582567% |
| D | 12069 | 1338 | 11.086254% |

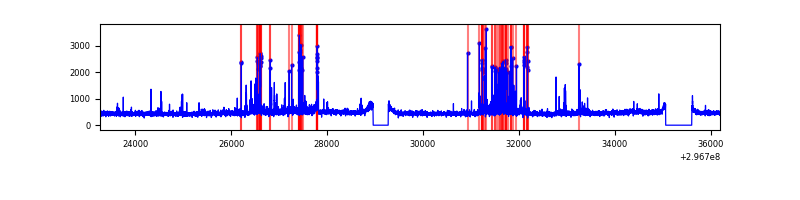

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12929 | 12069 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12930 | 12070 | 87 | 87 | 0.67% | 0.72% |  |
| C | 12929 | 12070 | 5 | 5 | 0.04% | 0.04% |  |
| D | 12929 | 12069 | 1123 | 1123 | 8.69% | 9.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 14004 | 44.25 | 1397 | 1363 | 285.6 |
| A | 0 | 226 | 12433 | 38.75 | 1397 | 1363 | 285.6 |
| A | 3 | 137 | 11147 | 34.25 | 1397 | 1363 | 285.6 |
| B | 7 | 220 | 309939 | 1169.69 | 1387 | 1348 | 263.8 |
| B | 10 | 245 | 193473 | 728.23 | 1387 | 1348 | 263.8 |
| B | 4 | 216 | 80034 | 298.25 | 1387 | 1348 | 263.8 |
| C | 14 | 238 | 209649 | 666.51 | 1340 | 1344 | 312.5 |
| C | 3 | 233 | 156972 | 497.96 | 1340 | 1344 | 312.5 |
| C | 13 | 61 | 9340 | 25.58 | 1340 | 1344 | 312.5 |
| D | 7 | 238 | 1967439 | 6251.43 | 1302 | 1263 | 314.5 |
| D | 7 | 38 | 1290759 | 4099.94 | 1302 | 1263 | 314.5 |
| D | 1 | 52 | 713064 | 2263.16 | 1302 | 1263 | 314.5 |

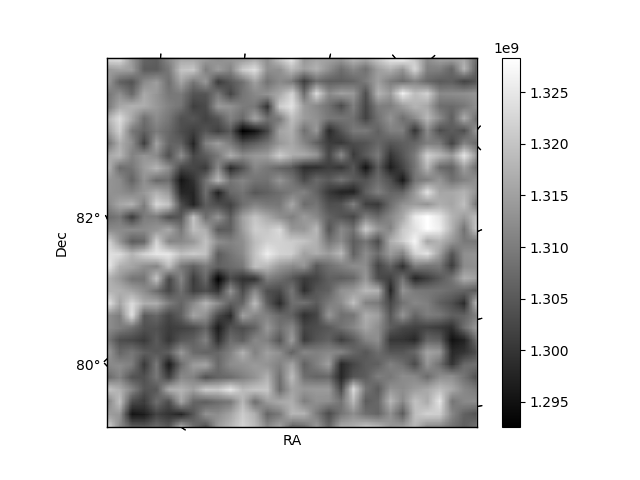

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

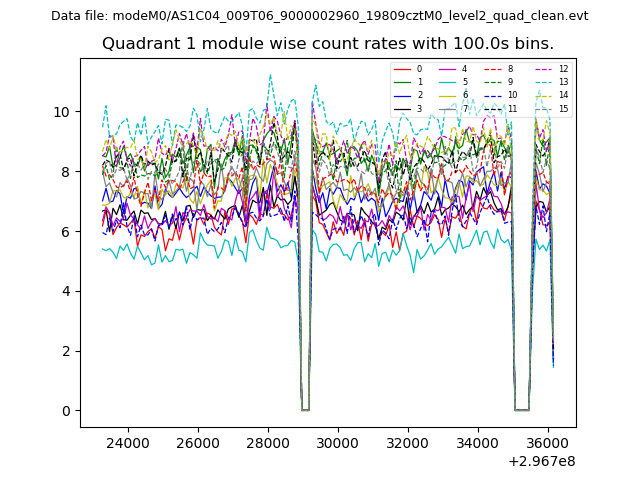

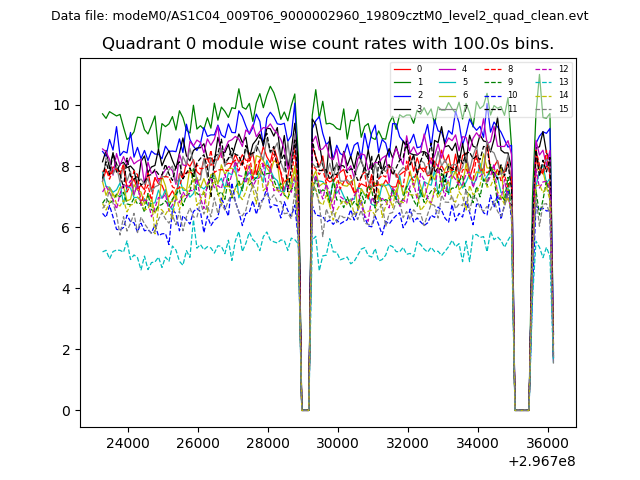

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

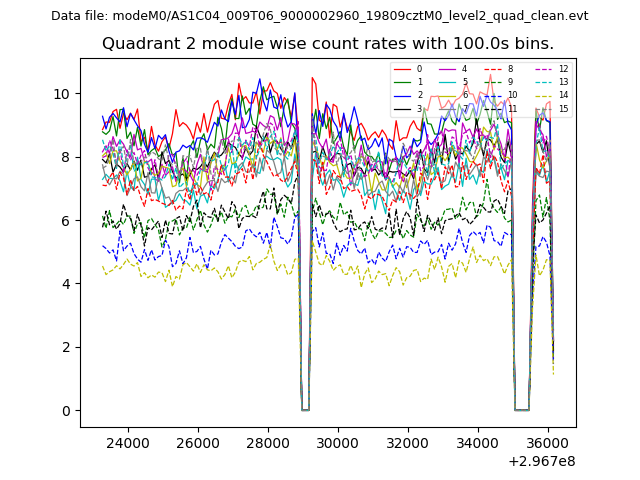

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

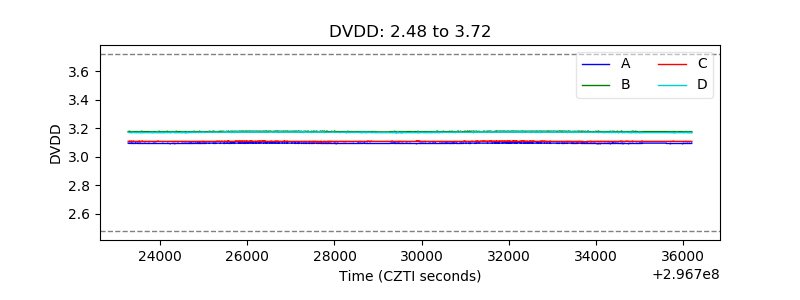

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

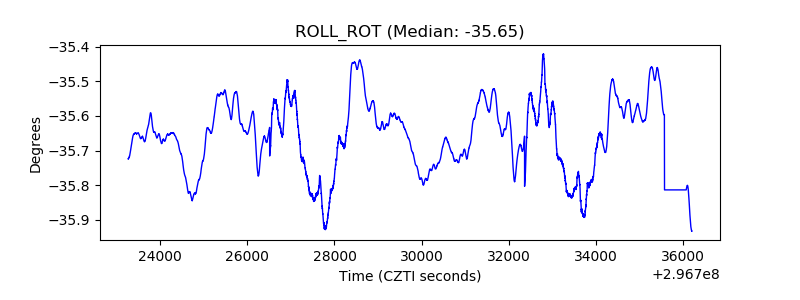

| _ROLL_ROT |  |

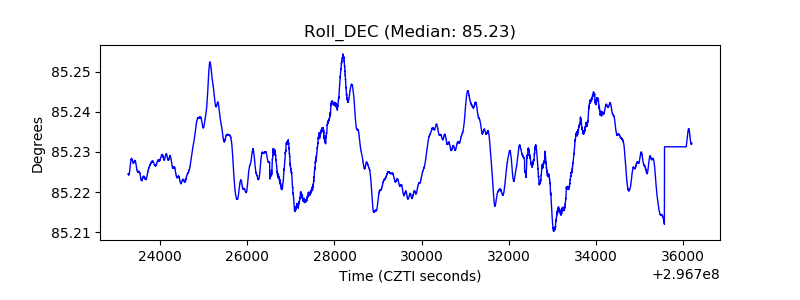

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
