| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19828cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19828cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,912,640 | 87,917,760 |
| Size | 452.0 MB | 83.8 MB |
| Events in quadrant A | 3,911,937 | 557,750 |
| Events in quadrant B | 3,501,311 | 579,188 |
| Events in quadrant C | 3,207,710 | 553,002 |
| Events in quadrant D | 3,313,612 | 542,860 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15771 | 2 |
| B | 0 | 14471 | 2 |
| C | 0 | 13392 | 2 |
| D | 0 | 13931 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6149 | 268 | 4.358432% |
| B | 6150 | 109 | 1.772358% |
| C | 6150 | 66 | 1.073171% |
| D | 6150 | 122 | 1.983740% |

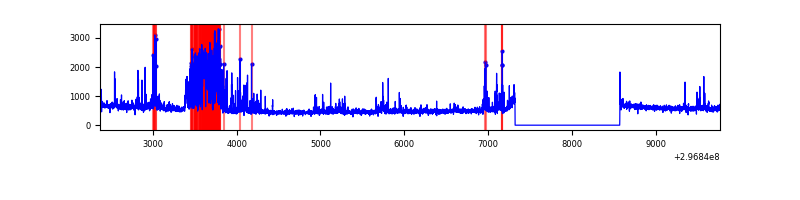

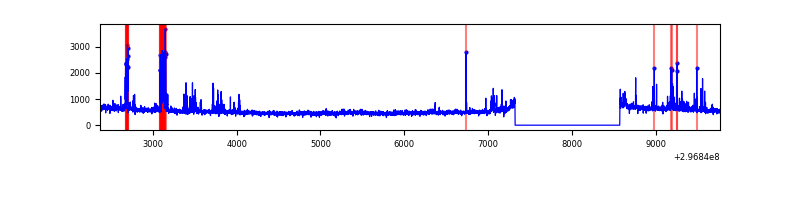

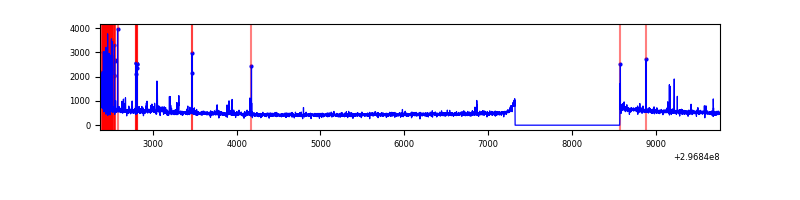

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

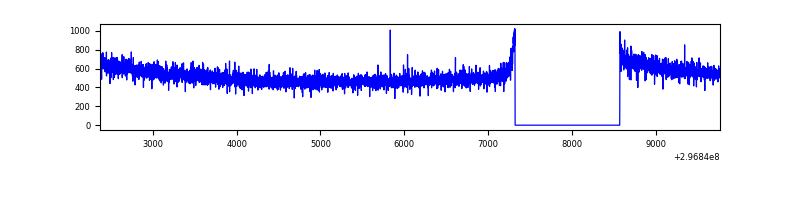

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7399 | 6150 | 129 | 129 | 1.74% | 2.10% |  |
| B | 7400 | 6150 | 41 | 41 | 0.55% | 0.67% |  |
| C | 7400 | 6151 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7400 | 6151 | 85 | 85 | 1.15% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 751629 | 4714.01 | 799 | 786 | 159.3 |
| A | 14 | 254 | 73693 | 457.73 | 799 | 786 | 159.3 |
| A | 5 | 16 | 12237 | 71.89 | 799 | 786 | 159.3 |
| B | 7 | 220 | 100539 | 649.97 | 813 | 793 | 153.5 |
| B | 10 | 245 | 55915 | 359.19 | 813 | 793 | 153.5 |
| B | 0 | 197 | 53884 | 345.95 | 813 | 793 | 153.5 |
| C | 14 | 238 | 124367 | 672.04 | 789 | 797 | 183.9 |
| C | 13 | 61 | 5576 | 25.99 | 789 | 797 | 183.9 |
| C | 3 | 233 | 3652 | 15.53 | 789 | 797 | 183.9 |
| D | 1 | 52 | 286416 | 1497.0 | 789 | 769 | 190.8 |
| D | 2 | 234 | 28911 | 147.49 | 789 | 769 | 190.8 |
| D | 7 | 96 | 20242 | 102.05 | 789 | 769 | 190.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

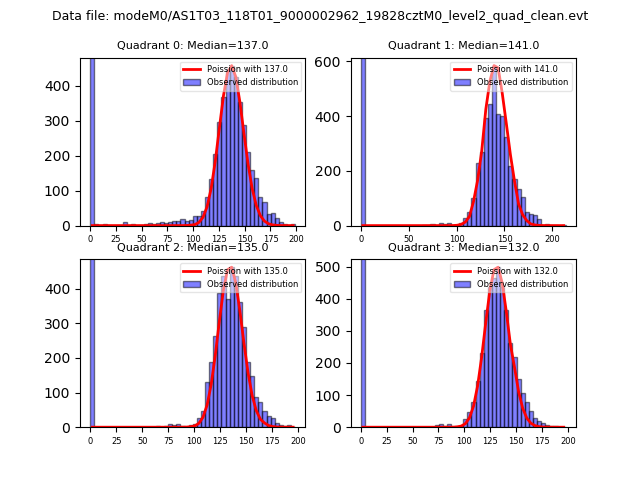

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

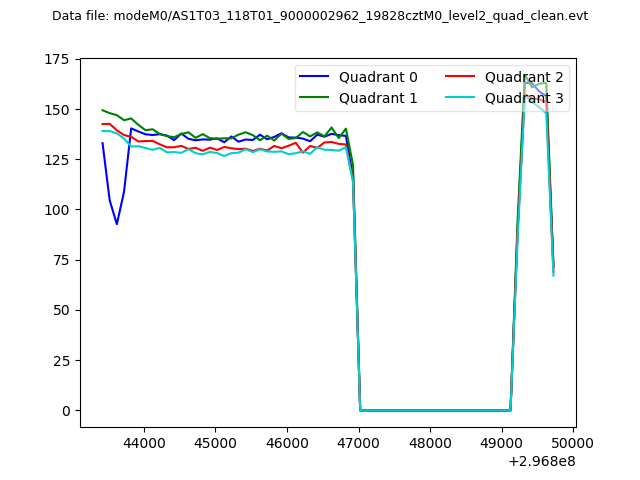

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

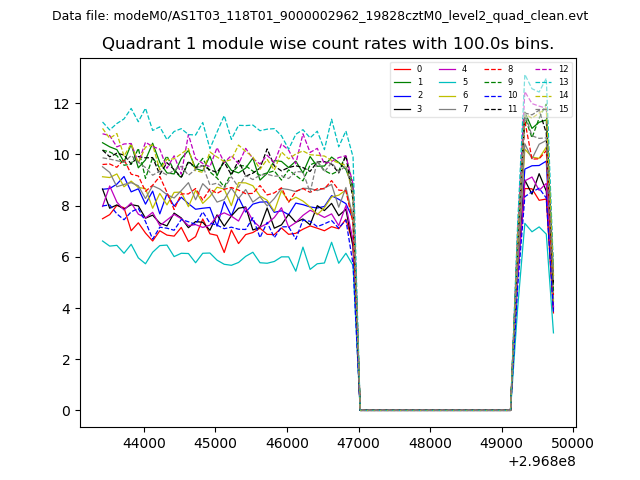

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

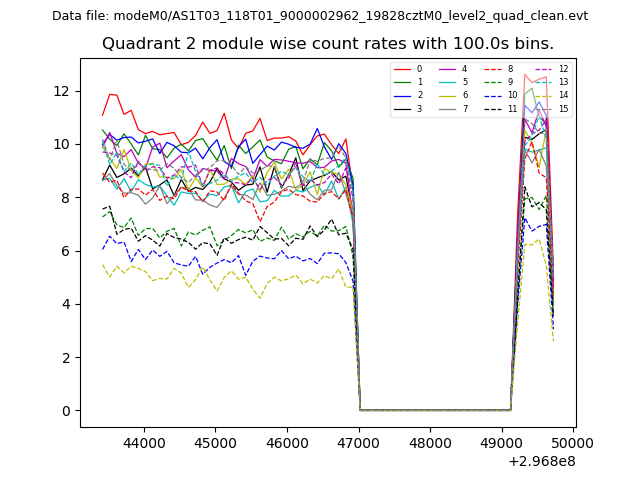

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

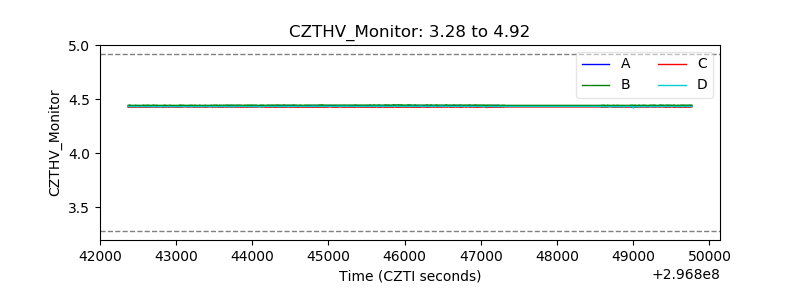

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

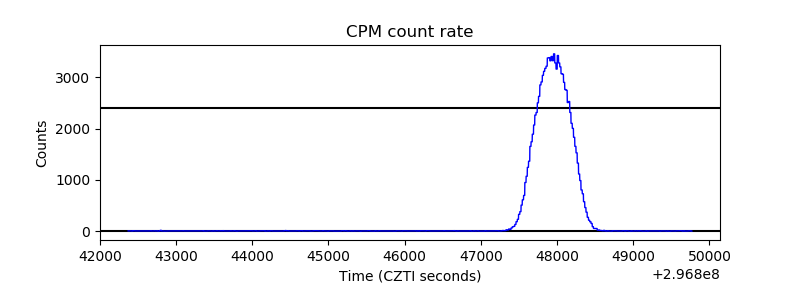

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
