| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19838cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19838cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,199,819,520 | 206,847,360 |
| Size | 1.1 GB | 197.3 MB |
| Events in quadrant A | 8,649,178 | 1,277,639 |
| Events in quadrant B | 8,994,954 | 1,289,509 |
| Events in quadrant C | 8,661,631 | 1,230,383 |
| Events in quadrant D | 8,800,652 | 1,214,029 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37386 | 3 |
| B | 0 | 38160 | 5 |
| C | 0 | 37257 | 3 |
| D | 0 | 38595 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18186 | 256 | 1.407676% |
| B | 18186 | 277 | 1.523150% |
| C | 18186 | 280 | 1.539646% |
| D | 18186 | 262 | 1.440669% |

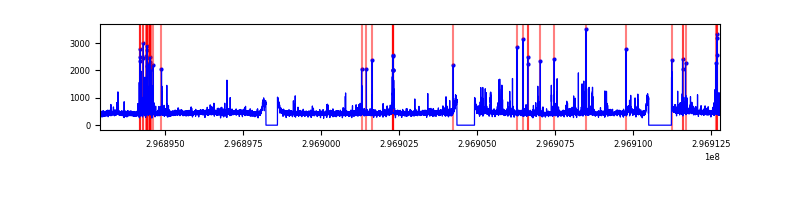

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19851 | 18186 | 8 | 8 | 0.04% | 0.04% |  |
| B | 19851 | 18186 | 19 | 19 | 0.10% | 0.10% |  |
| C | 19851 | 18186 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19851 | 18186 | 45 | 45 | 0.23% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 81658 | 178.46 | 2199 | 2144 | 445.5 |
| A | 5 | 16 | 49224 | 105.67 | 2199 | 2144 | 445.5 |
| A | 10 | 253 | 34415 | 72.43 | 2199 | 2144 | 445.5 |
| B | 10 | 245 | 166012 | 389.26 | 2182 | 2124 | 421.0 |
| B | 0 | 198 | 94315 | 218.97 | 2182 | 2124 | 421.0 |
| B | 7 | 220 | 67878 | 156.17 | 2182 | 2124 | 421.0 |
| C | 14 | 238 | 326248 | 657.44 | 2104 | 2116 | 493.0 |
| C | 9 | 221 | 102468 | 203.55 | 2104 | 2116 | 493.0 |
| C | 3 | 233 | 24914 | 46.24 | 2104 | 2116 | 493.0 |
| D | 7 | 96 | 253206 | 485.5 | 2144 | 2081 | 517.2 |
| D | 7 | 238 | 213311 | 408.37 | 2144 | 2081 | 517.2 |
| D | 1 | 52 | 158280 | 301.98 | 2144 | 2081 | 517.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

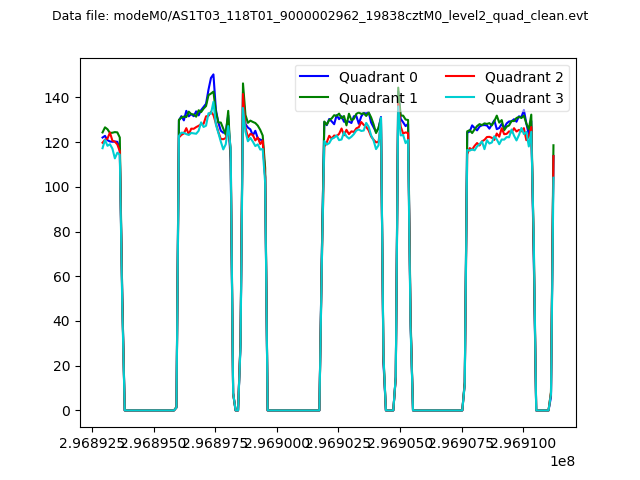

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

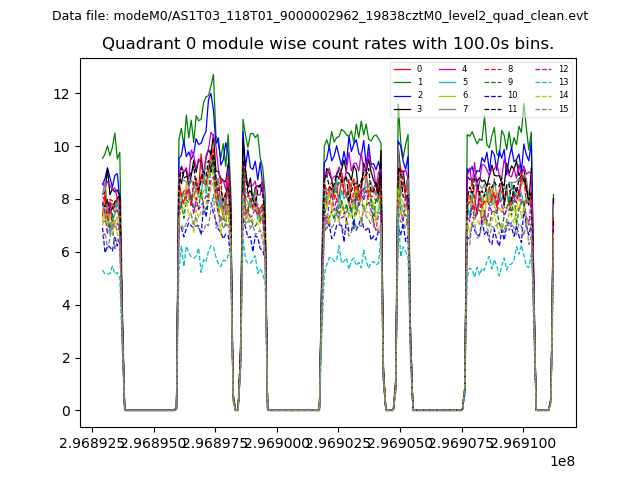

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

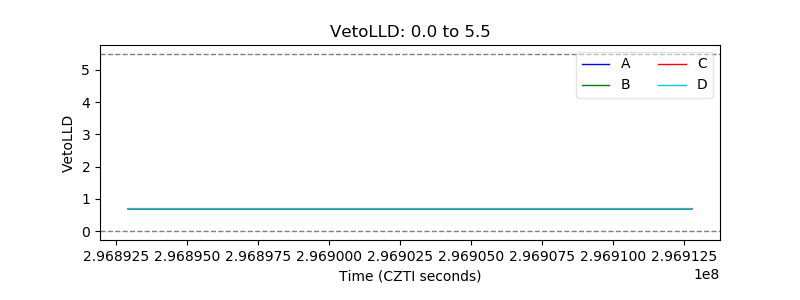

| Veto LLD |  |

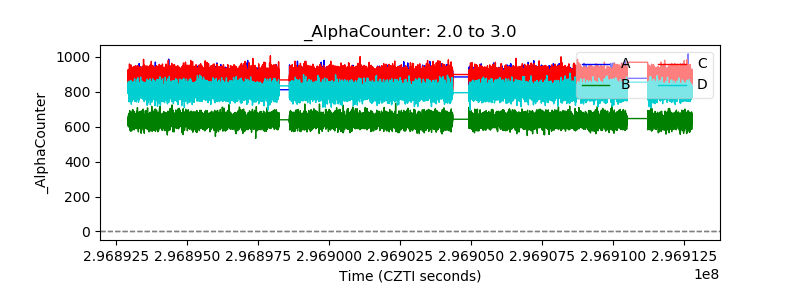

| Alpha Counter |  |
| _CPM_Rate |  |

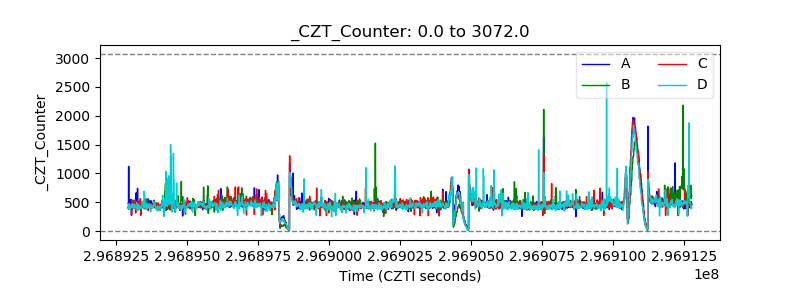

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

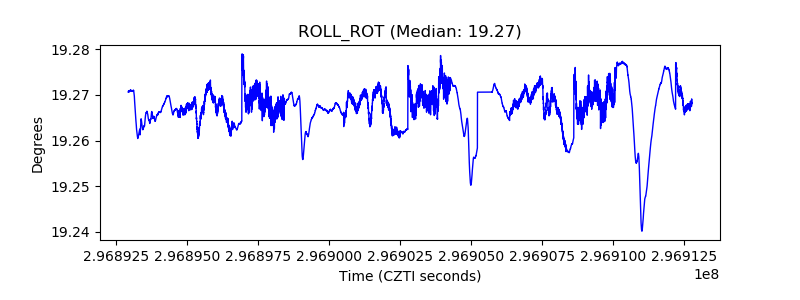

| _ROLL_ROT |  |

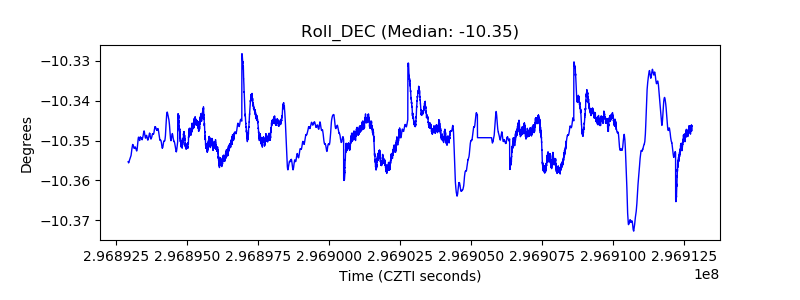

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
