| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_118T01_9000002962_19843cztM0_level2.evt | modeM0/AS1T03_118T01_9000002962_19843cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,912,320 | 93,300,480 |
| Size | 559.7 MB | 89.0 MB |
| Events in quadrant A | 4,505,430 | 611,974 |
| Events in quadrant B | 3,693,294 | 622,856 |
| Events in quadrant C | 3,392,560 | 597,979 |
| Events in quadrant D | 5,761,340 | 557,234 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17539 | 1 |
| B | 0 | 14970 | 1 |
| C | 0 | 13999 | 1 |
| D | 0 | 21591 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6241 | 332 | 5.319660% |
| B | 6241 | 165 | 2.643807% |
| C | 6241 | 72 | 1.153661% |
| D | 6241 | 416 | 6.665598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6241 | 196 | 196 | 2.60% | 3.14% |  |
| B | 7526 | 6242 | 80 | 80 | 1.06% | 1.28% |  |
| C | 7526 | 6241 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7526 | 6242 | 683 | 683 | 9.08% | 10.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1314641 | 8021.95 | 822 | 809 | 163.8 |
| A | 14 | 254 | 22809 | 134.33 | 822 | 809 | 163.8 |
| A | 5 | 16 | 8161 | 44.89 | 822 | 809 | 163.8 |
| B | 10 | 245 | 280055 | 1774.34 | 840 | 821 | 157.4 |
| B | 7 | 220 | 66090 | 414.74 | 840 | 821 | 157.4 |
| B | 0 | 197 | 27432 | 169.09 | 840 | 821 | 157.4 |
| C | 14 | 238 | 129066 | 675.66 | 819 | 829 | 189.8 |
| C | 9 | 221 | 43983 | 227.37 | 819 | 829 | 189.8 |
| C | 3 | 9 | 12631 | 62.18 | 819 | 829 | 189.8 |
| D | 1 | 20 | 2366224 | 12147.36 | 816 | 796 | 194.7 |
| D | 1 | 52 | 157714 | 805.83 | 816 | 796 | 194.7 |
| D | 12 | 218 | 87000 | 442.69 | 816 | 796 | 194.7 |

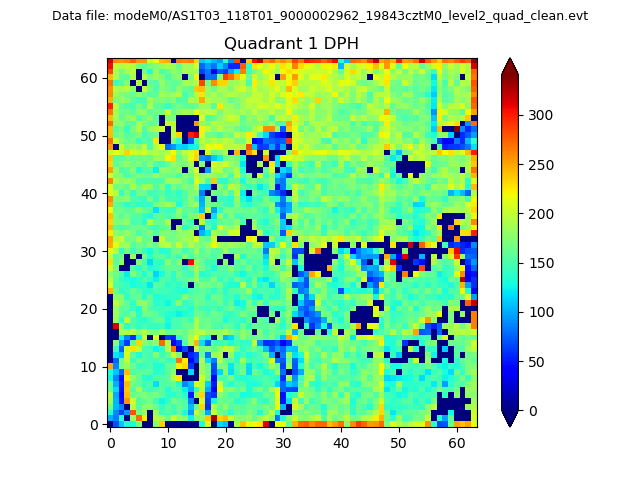

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

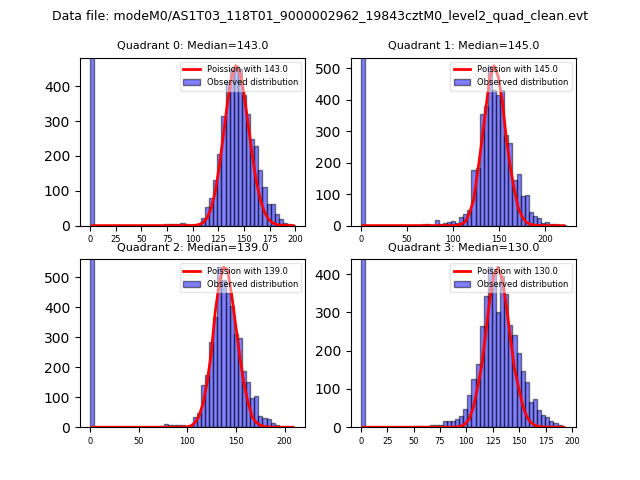

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

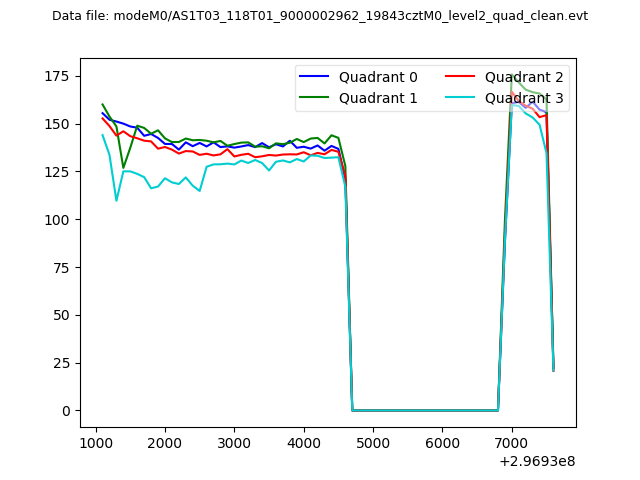

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

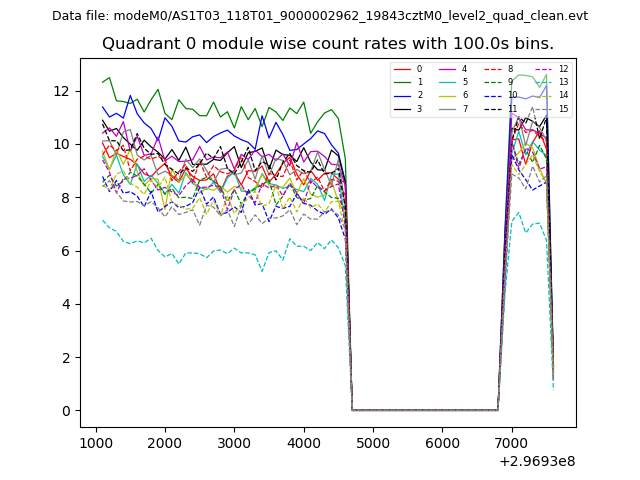

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

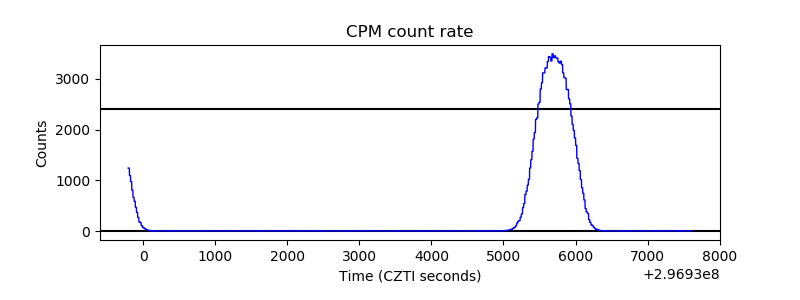

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

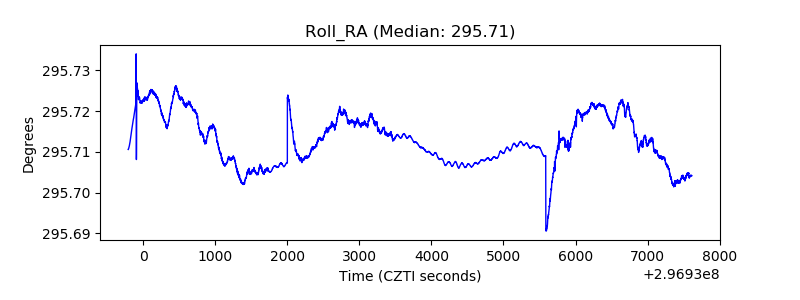

| _Roll_RA |  |

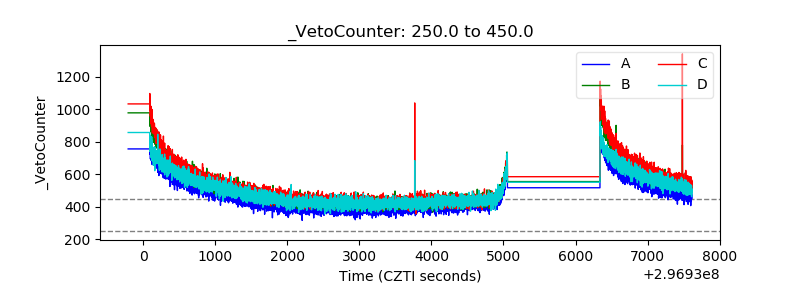

| Veto Counter |  |
